箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1596B109-10BOX PLAS BLK 0.45"LX0.45"W 1=10 |
1 |
|
规格书 |
1596 | Box | Active | Box, Potting | 0.453" L x 0.453" W (11.50mm x 11.50mm) | 0.354" (9.00mm) | 0.20in² (1.3cm²) | - | Plastic | Black | 0.035" (0.90mm) | - | - | - |
|
1426K-BBOX STEEL BLUE 6"L X 5"W |
1 |
|
规格书 |
1426 | Bulk | Active | Box | 6.000" L x 5.000" W (152.40mm x 127.00mm) | 4.000" (101.60mm) | 30.0in² (194cm²) | U Shaped Pieces | Metal, Steel | Blue | 20 Gauge | Separate Panel or Cover Thickness, Vented Panels | - | - |
|
TF780 PLAINCHASSIS ALUM 5.25"L X 3"W |
1 |
|
- |
Tite-Fit | Bulk | Active | Chassis | 5.250" L x 3.000" W (133.35mm x 76.20mm) | 2.125" (53.98mm) | 15.8in² (102cm²) | U Shaped Pieces | Metal, Aluminum | Unpainted | 0.040" (1.02mm) | - | - | - |
|

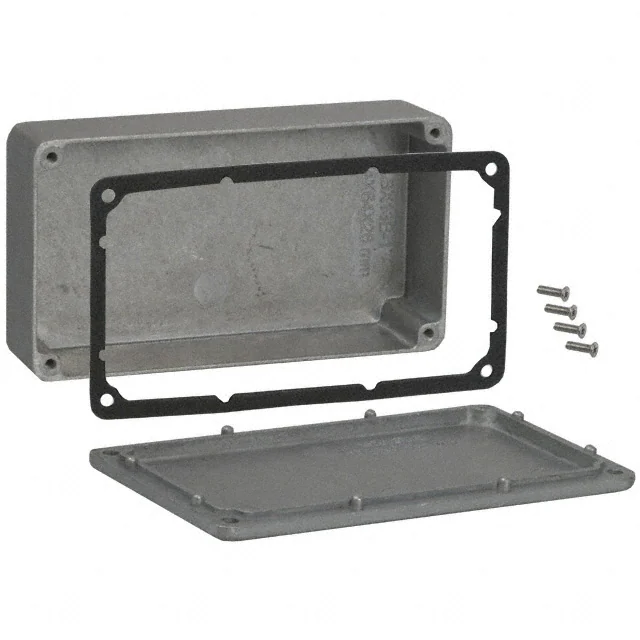

CN-5703BOX ALUM NATURAL 4.51"L X 2.50"W |
0 |
|
规格书 |
CN | Box | Active | Box | 4.512" L x 2.504" W (114.60mm x 63.60mm) | 1.224" (31.09mm) | 11.3in² (73cm²) | Cover Included | Metal, Aluminum | Natural | 0.060" (1.52mm) | Sealed | IP66, NEMA 1,2,4,4X,12,13 | - |
|
S3A-784114BOX ABS BLACK 7.88"L X 4.1"W |
16 |
|
规格书 |
- | Bag | Active | Box | 7.875" L x 4.100" W (200.03mm x 104.14mm) | 1.477" (37.52mm) | 32.2in² (208cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.062" (1.57mm) | - | - | - |
|
S1A-303015-KBOX ABS WHITE 3"L X 3"W |
19 |
|
规格书 |
- | Bag | Active | Box | 3.000" L x 3.000" W (76.20mm x 76.20mm) | 1.677" (42.60mm) | 8.99in² (58.0cm²) | Cover Included, Hand Held | Plastic, ABS | White | 0.062" (1.57mm) | - | - | - |
|
TBG-32610-BBOX ABS BLACK 5.51"L X 3.94"W |
7 |
|
规格书 |
TB | Bulk | Active | Box | 5.512" L x 3.937" W (140.00mm x 100.00mm) | 1.181" (30.00mm) | 21.7in² (140cm²) | Split Sides | Plastic, ABS | Black | 0.091" (2.30mm) | PCB Supports, Sealing Gasket | IP65 | UL94 HB |
|
A279V,GYBOX ABS GRAY 5.31"L X 3.35"W |
8 |
|
规格书 |
A | Bulk | Active | Box | 5.310" L x 3.350" W (134.87mm x 85.09mm) | 1.500" (38.10mm) | 17.8in² (115cm²) | Split Sides and End Panel(s) | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
|
031I,GYBOX ABS GRAY 4.38"L X 3.25"W |
1 |
|
规格书 |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 0.900" (22.86mm) | 14.2in² (92cm²) | Cover Included, Hand Held | Plastic, ABS | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
G20-8000BOX ABS GRAY 3.5"L X 3.5"W |
10 |
|
规格书 |
G20 | Bulk | Active | Box | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 2.200" (55.88mm) | 12.3in² (79cm²) | Cover Included | Plastic, ABS | Gray | 0.062" (1.57mm) | Prototype Board | - | - |
|
M6,GYBOX ABS GRAY 4.15"L X 2.4"W |
10 |
|
规格书 |
M | Bulk | Active | Box | 4.150" L x 2.400" W (105.41mm x 60.96mm) | 0.850" (21.59mm) | 9.96in² (64.3cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, 9V and AA | IP40 | UL94 HB |
|
M6,ALBOX ABS ALMOND 4.15"L X 2.4"W |
6 |
|
规格书 |
M | Bulk | Active | Box | 4.150" L x 2.400" W (105.41mm x 60.96mm) | 0.850" (21.59mm) | 9.96in² (64.3cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V and AA | IP40 | UL94 HB |
|
WM032C,ALBOX PLSTC AMD/CL 4.38"L X 3.25"W |
6 |
|
规格书 |
WM | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.600" (40.64mm) | 14.2in² (92cm²) | Cover Included | Plastic, Polycarbonate | Almond, Clear Cover/Door | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | - |
|

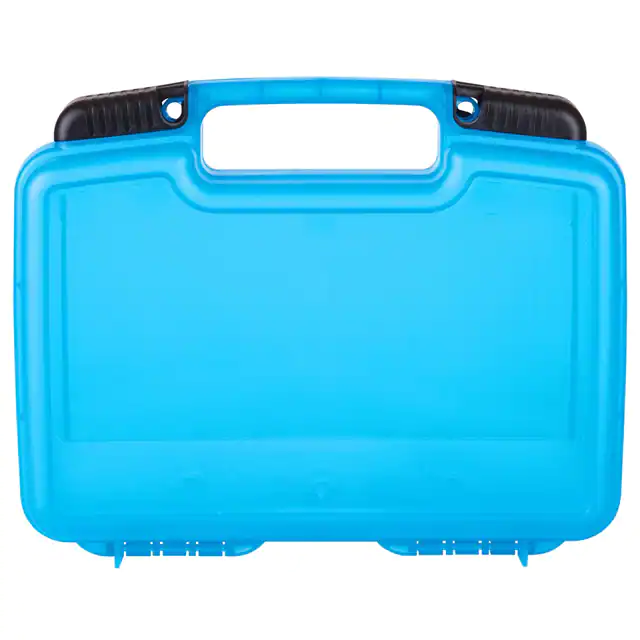

6775TDCASE PLASTIC BLUE 9.5"L X 5.75"W |
13 |
|
规格书 |
Tradesman™ | Box | Active | Case | 9.500" L x 5.750" W (241.30mm x 146.05mm) | 2.750" (69.85mm) | 54.6in² (352cm²) | Cover Included | Plastic, Polypropylene | Blue | - | - | - | - |
|

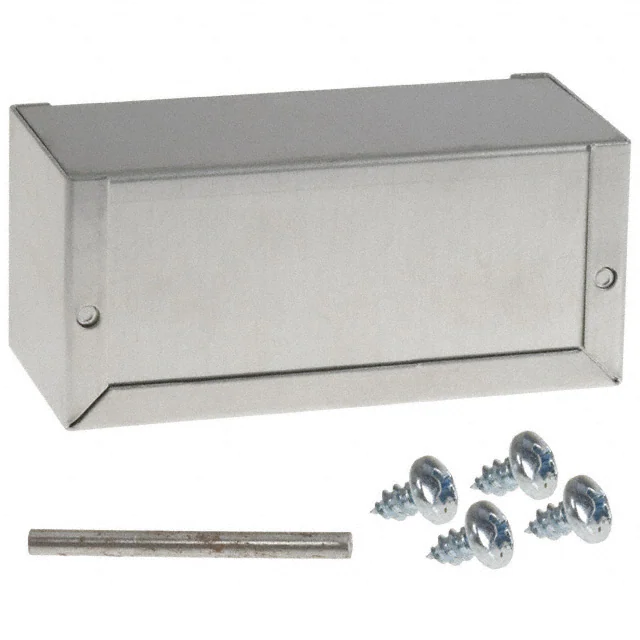

CU-3004-ABOX ALUM NATURAL 5"L X 2.25"W |
9 |
|
规格书 |
Mini-Box | Bulk | Active | Box | 5.000" L x 2.250" W (127.00mm x 57.15mm) | 2.250" (57.15mm) | 11.3in² (73cm²) | U Shaped Pieces | Metal, Aluminum | Natural | 0.040" (1.02mm) | - | - | - |
|

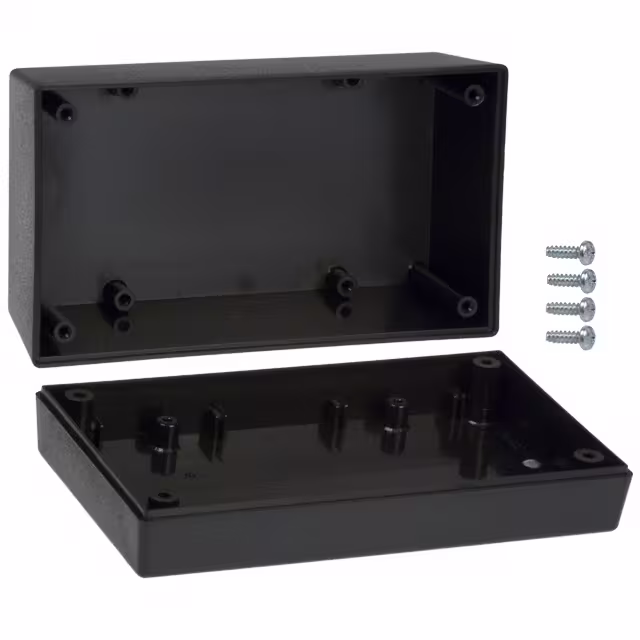

153,BKBOX ABS BLACK 5.62"L X 3.25"W |
1 |
|
规格书 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.500" (63.50mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|

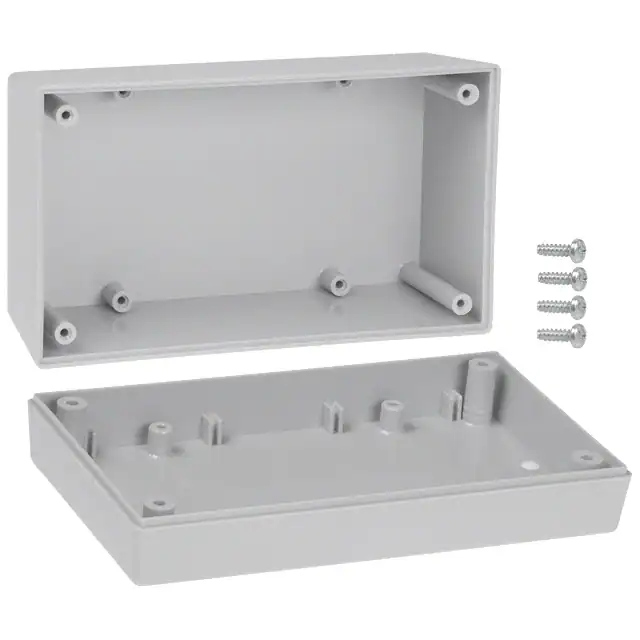

153,GYBOX ABS GRAY 5.62"L X 3.25"W |
1 |
|
规格书 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.500" (63.50mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
021,BKBOX ABS BLACK 4.1"L X 2.6"W |
0 |
|
规格书 |
S | Bulk | Active | Box | 4.100" L x 2.600" W (104.14mm x 66.04mm) | 0.900" (22.86mm) | 10.7in² (69cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
1598ASGYPBKBOX PLAS BLK/GRY 6.16"L X 3.68"W |
12 |
|
规格书 |
1598SP | Bulk | Active | Box | 6.161" L x 3.677" W (156.49mm x 93.40mm) | 1.378" (35.00mm) | 22.6in² (146cm²) | Split Sides and End Panel(s) | ABS | Black, Gray | - | Card Guides, PCB Supports | IP54 | - |
|
153I,GYBOX ABS GRAY 5.62"L X 3.25"W |
5 |
|
规格书 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.500" (63.50mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
