汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

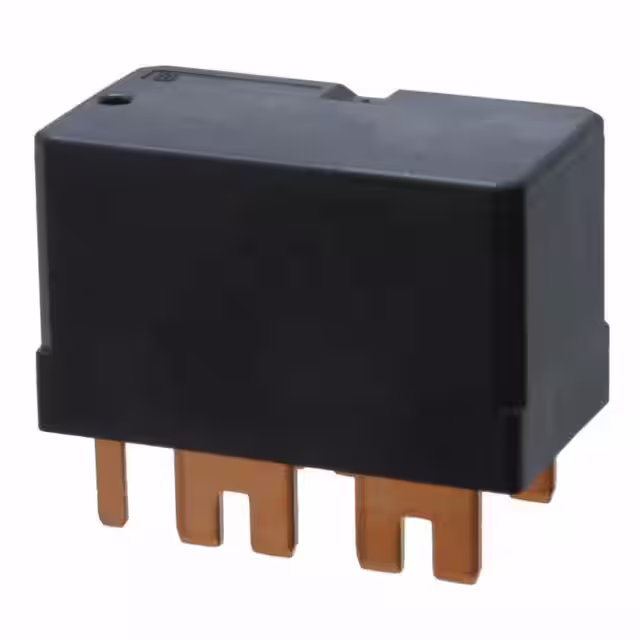

ACW212RELAY AUTOMOTIVE DPST 45A 12V |
0 |
|
规格书 |
ACW | Tray | Obsolete | Non Latching | 117 mA | 12VDC | DPST-NO (2 Form A) | 45 A | 14VDC - Nom | 6.2 VDC | 0.5 VDC | 20 ms | 20 ms | - | Free Hanging | Quick Connect - 0.079" (2.0mm), Weld Terminal | -40°C ~ 125°C |
|
02040712TXNRELAY AUTOMOTIVE SPDT 20A 24V |
0 |
|
规格书 |
ISO MINI® | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | 20 A | 24VDC - Nom | - | - | - | - | Diode | Socketable | Plug In | - |
|
G8VL-1A4TRL-DC12RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
G8VL | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 8 VDC | 0.7 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 100°C |
|
|
G8VA-1A4-TR-01-DC12RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
G8VL | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 8 VDC | 0.7 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 100°C |
|
G8HE-1A7T-R-DC12RELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
规格书 |
G8HE | Bulk | Obsolete | Non Latching | 141 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
G8HE-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
规格书 |
G8HE | Bulk | Obsolete | Non Latching | 141 mA | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
G8JN-1A6T-F-R-DC12RELAY AUTOMOTIVE SPST 35A 12V |
0 |
|
规格书 |
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8JN-1A7T-MF-DC12RELAY AUTOMOTIVE SPST 35A 12V |
0 |
|
规格书 |
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8JN-1A7T-MF-R-DC12RELAY AUTOMOTIVE SPST 35A 12V |
0 |
|
规格书 |
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
G8JN-1A7T-R-DC12RELAY AUTOMOTIVE SPST 35A 12V |
0 |
|
规格书 |
G8JN | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
G8JR-1A5T-R-DC12RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
规格书 |
G8JR | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8JR-1A6T-SP-F-R-DC12RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
规格书 |
G8JR | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Chassis Mount | Plug In | -40°C ~ 125°C |
|
|
G8JR-1A7T-D-DC12RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
规格书 |
G8JR | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Diode | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8JR-1A7T-SP-R-DC12RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
规格书 |
G8JR | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8JR 280-800 WP DC12RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
规格书 |
G8JR | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
G8NB-1 DC12RELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
规格书 |
G8N-1 | Bulk | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | - |
|
G8NW-2 DC12 SKRELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
规格书 |
G8NW-2 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
G8PE-1A4 DC12RELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
规格书 |
G8PE | Bulk | Obsolete | Non Latching | 88.9 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 16VDC - Max | 6.8 VDC | 1 VDC | - | - | - | Through Hole | PC Pin | -30°C ~ 105°C |
|
G8QE-1A DC12RELAY AUTOMOTIVE SPST 10A 12V |
0 |
|
规格书 |
G8QE | Bulk | Obsolete | Non Latching | 66.7 mA | 12VDC | SPST-NO (1 Form A) | 10 A | - | 7.3 VDC | 1 VDC | - | - | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
1-1904020-2V23234A0001X032-EV-144 |
0 |
|
规格书 |
- | Box | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
