汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACV11012RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 85°C |
|
ACV11112RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In | -40°C ~ 85°C |
|
ACV11212RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV12112RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV12212RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV13012RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ACV13112RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | Diode | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ACV13212RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Through Hole | PC Pin | -40°C ~ 85°C |
|
|

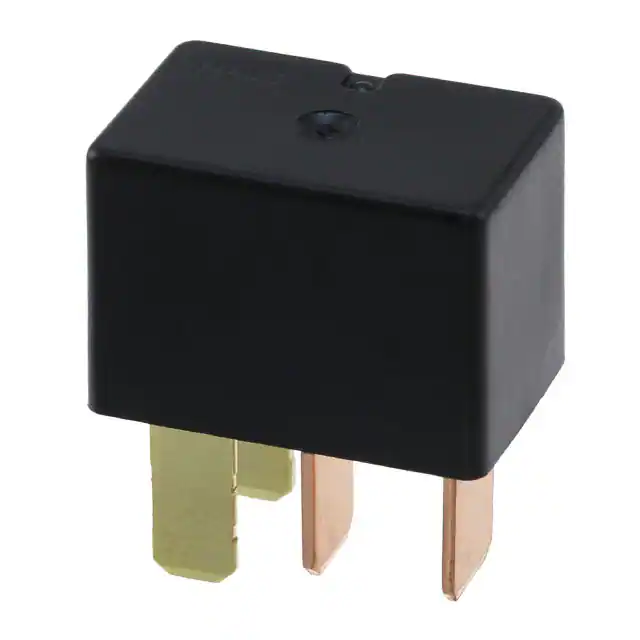

ACV31012RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
ACV | Box | Obsolete | Non Latching | 67 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV31112RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV31212RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In | -40°C ~ 85°C |
|

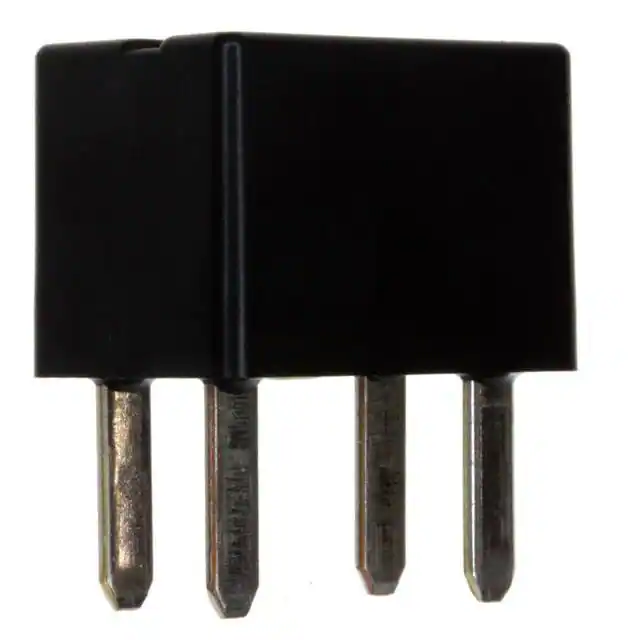

ACV32012RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV32212RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In | -40°C ~ 85°C |
|
|
ACV33012RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 67 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ACV33212RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
ACV | Tube | Obsolete | Non Latching | 84 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7 VDC | 0.6 VDC | 10 ms | 15 ms | Resistor | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AEV13012RELAY AUTOMOTIVE SPST 30A 12V |
0 |
|
规格书 |
AEV | Bulk | Obsolete | Non Latching | 415 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
|
AEV15112RELAY AUTOMOTIVE SPST 150A 12V |
0 |
|
规格书 |
AEV | Bulk | Obsolete | Non Latching | 2.8 A | 12VDC | SPST-NO (1 Form A) | 150 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
|
AEV16012RELAY AUTOMOTIVE SPST 60A 12V |
0 |
|
规格书 |
AEV | Bulk | Obsolete | Non Latching | 415 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
|
AEV16024RELAY AUTOMOTIVE SPST 60A 24V |
0 |
|
规格书 |
AEV | Bulk | Obsolete | Non Latching | 208 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
|
AEV25112RELAY AUTOMOTIVE DPST 150A 12V |
0 |
|
规格书 |
AEV | Bulk | Obsolete | Non Latching | 2.8 A | 12VDC | DPST-NO (2 Form A) | 150 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
