汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ980-1C-24DERELAY AUTOMOTIVE SPDT 60A 24V |
394 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ983-1C-12DRELAY AUTOMOTIVE SPDT 60A 12V |
400 |
|
规格书 |
AZ983 | Box | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ980-1A-12DRELAY AUTOMOTIVE SPST 80A 12V |
327 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ980-1A-12DRRELAY AUTOMOTIVE SPST 80A 12V |
994 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ983-1A-12DRELAY AUTOMOTIVE SPST 80A 12V |
361 |
|
规格书 |
AZ983 | Box | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ979-1A-12DRELAY AUTOMOTIVE SPST 80A 12V |
189 |
|
规格书 |
AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ980-1A-24DERELAY AUTOMOTIVE SPST 80A 24V |
1,600 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

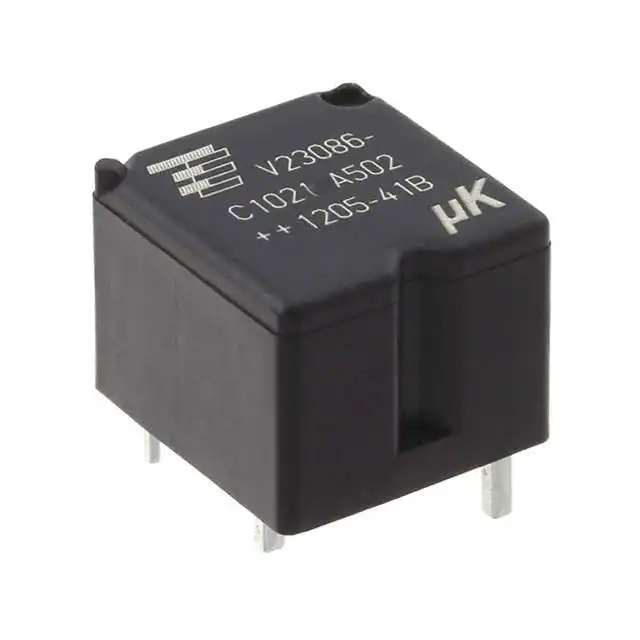

1-1414760-0AUTOMOTIVE RELAYS |
1,960 |
|
规格书 |
Micro Relay K | Box | Active | Non Latching | 55.2 mA | 10VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ980-1C-12DRELAY AUTOMOTIVE SPDT 60A 12V |
378 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ980-1C-24DRELAY AUTOMOTIVE SPDT 60A 24V |
387 |
|
规格书 |
AZ980 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ979-1C-12DRELAY AUTOMOTIVE SPDT 60A 12V |
375 |
|
规格书 |
AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ983-1C-24DERELAY AUTOMOTIVE SPDT 60A 24V |
354 |
|
规格书 |
AZ983 | Box | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CA1R-DC12V-NCA AUTOMOTIVE RELAY |
165 |
|
规格书 |
CA | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 20 A | 15VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In | -30°C ~ 80°C |
|
|
CA1AR-12V-A-5CA AUTOMOTIVE RELAY |
178 |
|
规格书 |
CA | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C |
|
|
CA1B-12V-A-5CA AUTOMOTIVE RELAY |
113 |
|
规格书 |
CA | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NC (1 Form B) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C |
|
|
AZ979-1C-24DERELAY AUTOMOTIVE SPDT 60A 24V |
1,000 |
|
规格书 |
AZ979 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
CB1AHF-R-24VCB AUTOMOTIVE RELAY |
148 |
|
规格书 |
CB | Bulk | Active | Non Latching | 67 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|
|
1-1393277-9RELAY AUTOMOTIVE SPST 40A 24V |
438 |
|
规格书 |
V23076 | Bulk | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
2359392-1RELAY V23074A1002A402-EV-CBOX |
342 |
|
规格书 |
Micro Relay A | Box | Active | Non Latching | 55.8 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 32VDC - Max | 14.4 VDC | 3.6 VDC | 6 ms | 3 ms | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
G8PM-K1A7R DC12LATCHING AUTOMOTIVE PCB RELAY |
1,197 |
|
规格书 |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
