汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2KM1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 120A 24V |
280 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CB1F-R-WM-12VRELAY AUTOMOTIVE SPDT 40A 12V |
976 |
|
规格书 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
A2K1CSP24VDC1.6RELAY AUTOMOTIVE SPDT 120A 24V |
277 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2KM1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 120A 12V |
288 |
|
规格书 |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2K1CSP24VDC1.6RRELAY AUTOMOTIVE SPDT 120A 24V |
319 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2K1CSP24VDC1.6DRELAY AUTOMOTIVE SPDT 120A 24V |
319 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2K1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 120A 24V |
311 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2KM1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 120A 24V |
297 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2KM1CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 120A 24V |
317 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2KM1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 120A 24V |
290 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

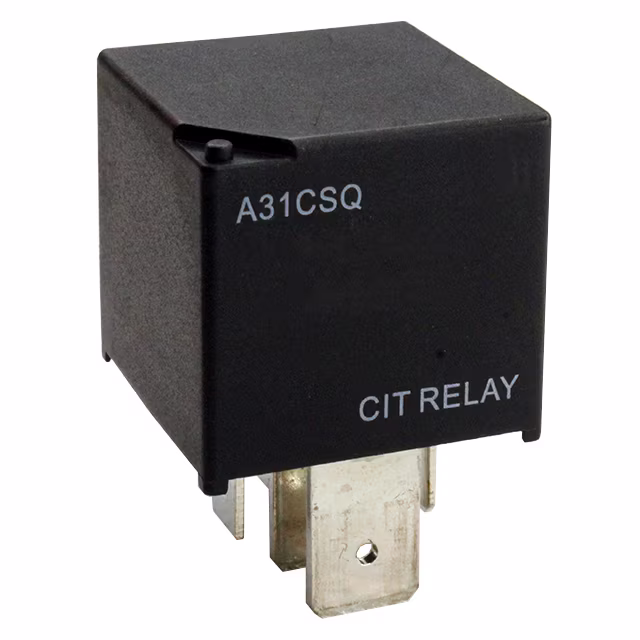

A31CSQ24VDC2RRELAY AUTOMOTIVE SPDT 80A 24V |
120 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A31CSQ24VDC2DRELAY AUTOMOTIVE SPDT 80A 24V |
200 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

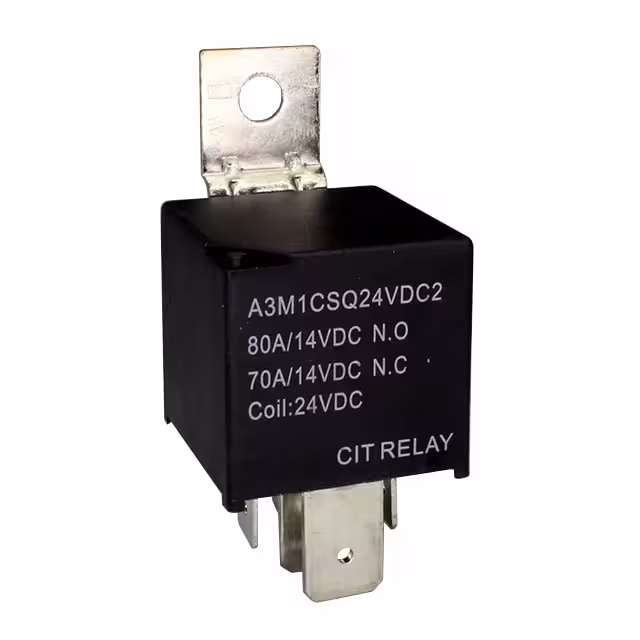

A3M1CSQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
318 |
|
规格书 |
A3M | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1-T-12VRELAY AUTOMOTIVE SPDT 40A 12V |
963 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A3KM1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 150A 12V |
265 |
|
规格书 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3K1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 150A 24V |
296 |
|
规格书 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1CSQ12VDC1.6RRELAY AUTOMOTIVE SPDT 150A 12V |
231 |
|
规格书 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2K1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 120A 12V |
234 |
|
规格书 |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2KM1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 120A 12V |
234 |
|
规格书 |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2KM1ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 120A 24V |
324 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
