铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXE4R0ARA122MHC0GCAP ALUM POLY 1200UF 20% 4V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXC160ARA270ME60GCAP ALUM POLY 27UF 20% 16V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 27 µF | ±20% | 16 V | 45mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.57 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXC6R3ARA101ME60GCAP ALUM POLY 100UF 20% 6.3V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 35mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.78 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APXA160ARA390MF60GCAP ALUM POLY 39UF 20% 16V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 39 µF | ±20% | 16 V | 37mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.05 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

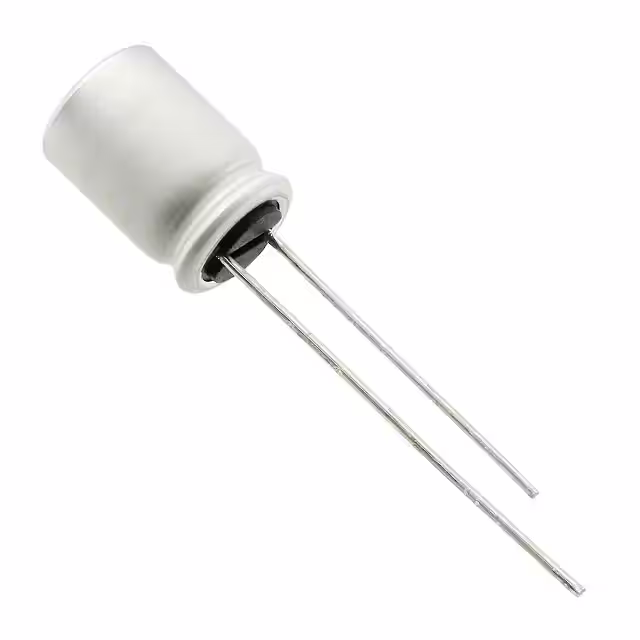

APS-160ETD181MHB5SCAP ALUM POLY 180UF 20% 16V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PS | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.36 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APXA4R0ARA122MJC0GCAP ALUM POLY 1200UF 20% 4V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 4 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APXA2R5ARA152MJC0SCAP ALUM POLY 1500UF 20% 2.5V Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APXA200ARA820MJ80SCAP ALUM POLY 82UF 20% 20V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 20 V | 40mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXA2R5ARA561MH70GCAP ALUM POLY 560UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2.5 V | 23mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXC160ARA820MH70GCAP ALUM POLY 82UF 20% 16V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 16 V | 25mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.83 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
