铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXA100ARA100MD55GCAP ALUM POLY 10UF 20% 10V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 10 V | 220mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 700 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
APXA200ARA390MH70SCAP ALUM POLY 39UF 20% 20V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 39 µF | ±20% | 20 V | 45mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXA200ARA470MH70SCAP ALUM POLY 47UF 20% 20V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXC100ARA560ME60GCAP ALUM POLY 56UF 20% 10V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 56 µF | ±20% | 10 V | 40mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.66 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXC2R5ARA181ME60GCAP ALUM POLY 180UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2.5 V | 30mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXC4R0ARA151ME60GCAP ALUM POLY 150UF 20% 4V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 30mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APMA160ARA560MF30SCAP ALUM POLY 56UF 20% 16V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PMA | Tape & Reel (TR) | Obsolete | Polymer | 56 µF | ±20% | 16 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.276" Dia x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) | 0.286" L x 0.276" W (7.20mm x 7.00mm) | Surface Mount |
|
|
APMA160ARA680MF30SCAP ALUM POLY 68UF 20% 16V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PMA | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 16 V | 50mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.276" Dia x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) | 0.286" L x 0.276" W (7.20mm x 7.00mm) | Surface Mount |
|

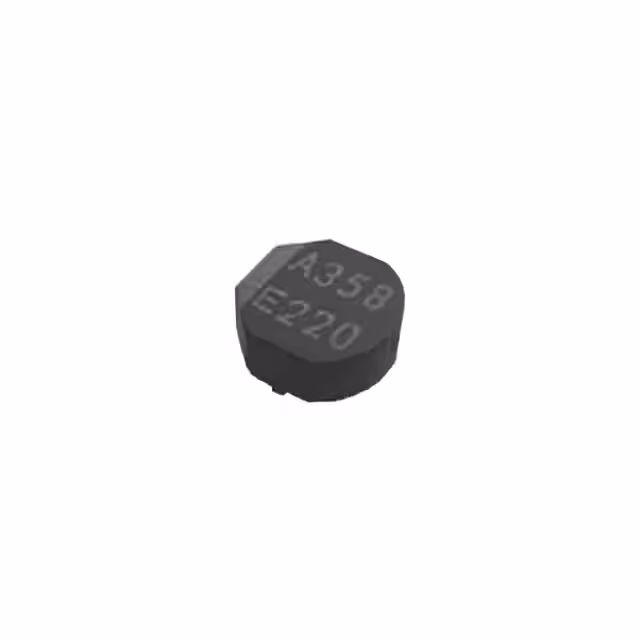

APMA200ARA390MF30SCAP ALUM POLY 39UF 20% 20V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PMA | Tape & Reel (TR) | Obsolete | Polymer | 39 µF | ±20% | 20 V | 45mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.276" Dia x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) | 0.286" L x 0.276" W (7.20mm x 7.00mm) | Surface Mount |
|
|
APMA200ARA470MF30SCAP ALUM POLY 47UF 20% 20V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PMA | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 20 V | 50mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.276" Dia x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) | 0.286" L x 0.276" W (7.20mm x 7.00mm) | Surface Mount |
