铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
875016219005CAP ALUM POLY 390UF 20% 2V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875016319002CAP ALUM POLY 330UF 20% 2.5V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875016319004CAP ALUM POLY 470UF 20% 2.5V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875115657016CAP ALUM POLY 68UF 20% 35V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 35 V | 32mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
875075855001CAP ALUM POLY 10UF 20% 63V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 63 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875015019003CAP ALUM POLY 180UF 20% 4V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875015019004CAP ALUM POLY 220UF 20% 4V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875016319003CAP ALUM POLY 390UF 20% 2.5V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

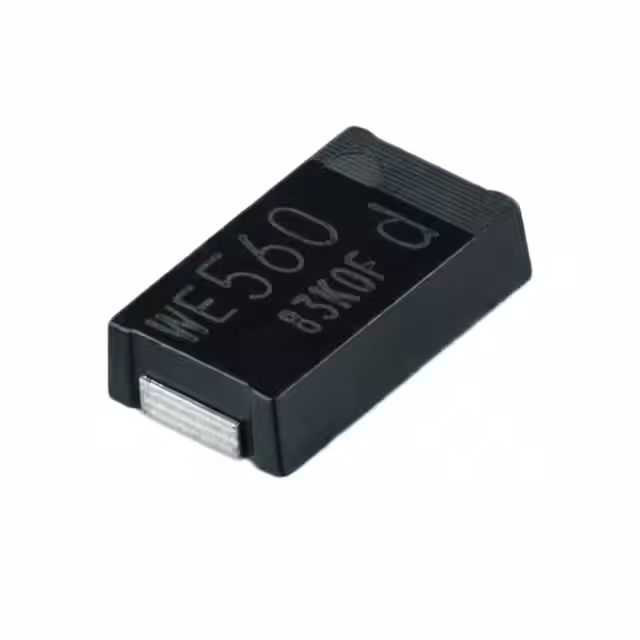

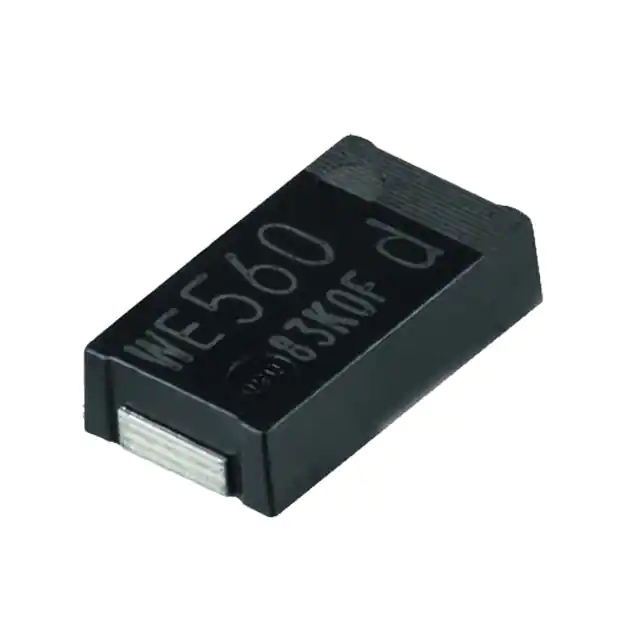

875035019001CAP ALUM POLY 100UF 20% 4V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PHLE | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875016219006CAP ALUM POLY 470UF 20% 2V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
