铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
870025375008CAP ALUM POLY 560UF 20% 16V TH Würth Elektronik |
0 |
|
规格书 |
WCAP-PTG5 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
870235174004CAP ALUM POLY 680UF 20% 6.3V TH Würth Elektronik |
0 |
|
规格书 |
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
875115560003CAP ALUM POLY 82UF 20% 25V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.343" (8.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
870135375006CAP ALUM POLY 390UF 20% 16V TH Würth Elektronik |
0 |
|
规格书 |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 390 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 96.45 mA @ 120 Hz | 1.929 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
875115260006CAP ALUM POLY 680UF 20% 10V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.343" (8.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
875105844002CAP ALUM POLY 8.2UF 20% 63V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 8.2 µF | ±20% | 63 V | 100mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 35 mA @ 120 Hz | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
870135375008CAP ALUM POLY 560UF 20% 16V TH Würth Elektronik |
0 |
|
规格书 |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 96.45 mA @ 120 Hz | 1.929 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

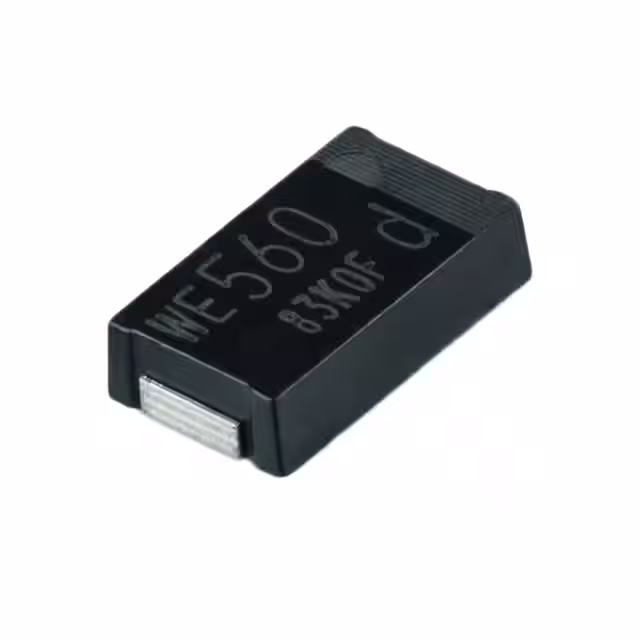

875016219004CAP ALUM POLY 330UF 20% 2V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
870056174002CAP ALUM POLY 12UF 20% 80V TH Würth Elektronik |
0 |
|
规格书 |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 12 µF | ±20% | 80 V | 38mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
875075655003CAP ALUM POLY 82UF 20% 35V SMD Würth Elektronik |
0 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
