铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV2A180MCL1GSCAP ALUM POLY 18UF 20% 100V SMD Nichicon |
1,101 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 100 V | 41mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

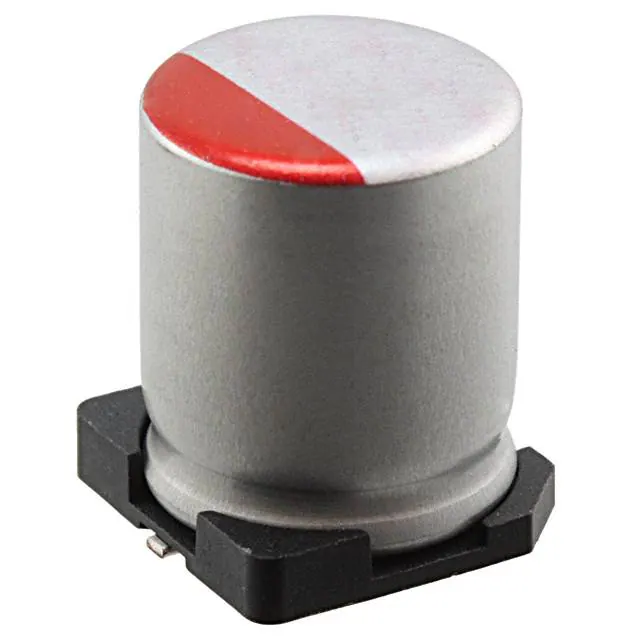

RPS1J560MCN1GSCAP ALUM POLY 56UF 20% 63V SMD Nichicon |
400 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PLX1V101MDL1CAP ALUM POLY 100UF 20% 35V TH Nichicon |
326 |
|
规格书 |
PLX | Bulk | Active | Polymer | 100 µF | ±20% | 35 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

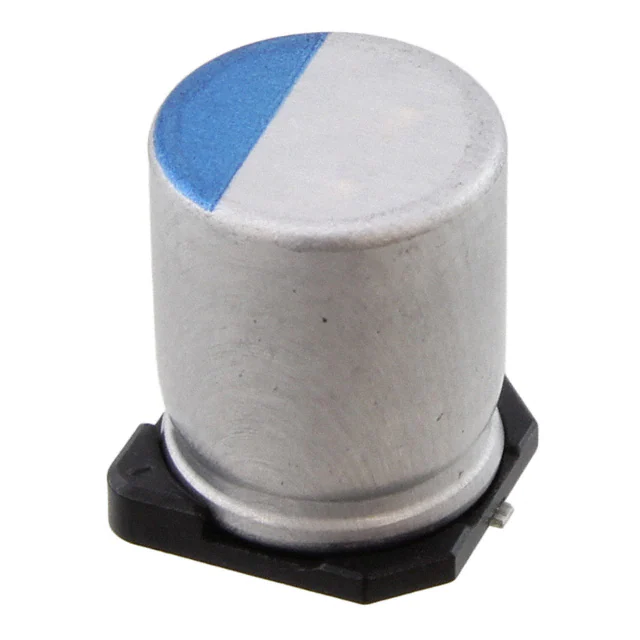

PCX1V101MCL1GSCAP ALUM POLY 100UF 20% 35V SMD Nichicon |
105 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1E391MCL2GSCAP ALUM POLY 390UF 20% 25V SMD Nichicon |
5,087 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 25 V | 21mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PLF0G561MDO1TDCAP ALUM POLY 560UF 20% 4V TH Nichicon |
2,560 |
|
规格书 |
PLF | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
RS80G561MDN1JTCAP ALUM POLY 560UF 20% 4V TH Nichicon |
1,101 |
|
规格书 |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
RPS0J331MCN1GSCAP ALUM POLY 330UF 20% 6.3V SMD Nichicon |
1,992 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RS61A151MCN1JTCAP ALUM POLY 150UF 20% 10V TH Nichicon |
4,085 |
|
规格书 |
FPCAP, RS6 | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
PCK0G331MCO1GSCAP ALUM POLY 330UF 20% 4V SMD Nichicon |
2,039 |
|
规格书 |
PCK | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
