铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNL1C182MDS1PHCAP ALUM POLY 1800UF 20% 16V TH Nichicon |
917 |
|
规格书 |
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 1800 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
|

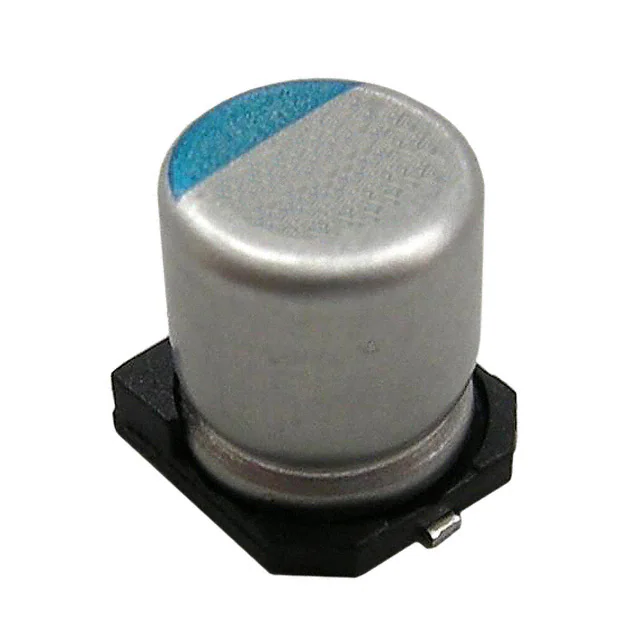

PCZ1V101MCL6GSCAP ALUM POLY 100UF 20% 35V SMD Nichicon |
1,510 |
|
规格书 |
PCZ | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLX1V101MDL1TDCAP ALUM POLY 100UF 20% 35V TH Nichicon |
1,184 |
|
规格书 |
PLX | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 35 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PLX1H470MDL1TDCAP ALUM POLY 47UF 20% 50V TH Nichicon |
4,679 |
|
规格书 |
PLX | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCV1J270MCL2GSCAP ALUM POLY 27UF 20% 63V SMD Nichicon |
2,489 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 63 V | 38mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RPS1H470MCN1GSCAP ALUM POLY 47UF 20% 50V SMD Nichicon |
20,561 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNU1E331MDN1PHCAP ALUM POLY 330UF 20% 25V TH Nichicon |
7,542 |
|
规格书 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PCR1E271MCL1GSCAP ALUM POLY 270UF 20% 25V SMD Nichicon |
2,896 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 25 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1D271MCL2GSCAP ALUM POLY 270UF 20% 20V SMD Nichicon |
725 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 20 V | 21mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCV1K120MCL1GSCAP ALUM POLY 12UF 20% 80V SMD Nichicon |
4,952 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 80 V | 41mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
