铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCR2A220MCL1GSCAP ALUM POLY 22UF 20% 100V SMD Nichicon |
0 |
|
规格书 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 100 V | 39mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

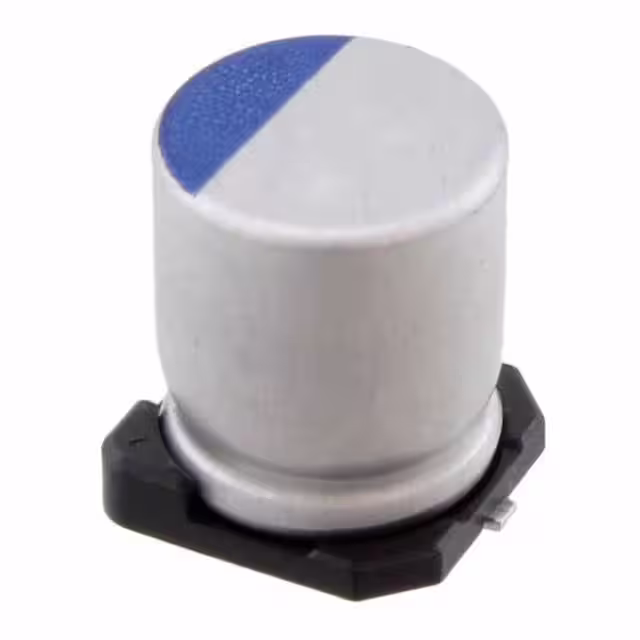

PCX1V390MCL6GSCAP ALUM POLY 39UF 20% 35V SMD Nichicon |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLV1J220MCL1CAP ALUM POLY 22UF 20% 63V TH Nichicon |
0 |
|
规格书 |
PLV | Bulk | Discontinued at Digi-Key | Polymer | 22 µF | ±20% | 63 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
PLV1H390MDL1TDCAP ALUM POLY 39UF 20% 50V TH Nichicon |
19 |
|
规格书 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 39 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCR1A681MCL1GSCAP ALUM POLY 680UF 20% 10V SMD Nichicon |
0 |
|
规格书 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 680 µF | ±20% | 10 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PLV1V820MDL1CAP ALUM POLY 82UF 20% 35V TH Nichicon |
19 |
|
规格书 |
PLV | Bulk | Discontinued at Digi-Key | Polymer | 82 µF | ±20% | 35 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
PCR0J122MCL1GSCAP ALUM POLY 1200UF 20% 6.3V Nichicon |
0 |
|
规格书 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 1200 µF | ±20% | 6.3 V | 18mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCX1C151MCS1GSCAP ALUM POLY 150UF 20% 16V SMD Nichicon |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1A102MCL1GSCAP ALUM POLY 1000UF 20% 10V SMD Nichicon |
0 |
|
规格书 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 1000 µF | ±20% | 10 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PLV1D221MDL1TDCAP ALUM POLY 220UF 20% 20V TH Nichicon |
0 |
|
规格书 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 220 µF | ±20% | 20 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
