铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLE0G561MCO1TDCAP ALUM POLY 560UF 20% 4V T/H Nichicon |
0 |
|
规格书 |
PLE | Cut Tape (CT) | Obsolete | Polymer | 560 µF | ±20% | 4 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|

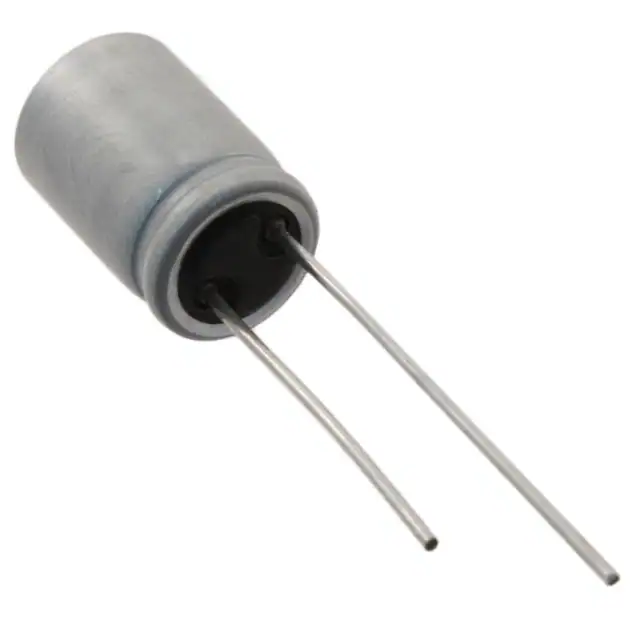

PLE0J471MDO1TDCAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
0 |
|
规格书 |
PLE | Cut Tape (CT) | Obsolete | Polymer | 470 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
PLE0G681MDO1CAP ALUM POLY 680UF 20% 4V TH Nichicon |
0 |
|
规格书 |
PLE | Bulk | Not For New Designs | Polymer | 680 µF | ±20% | 4 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PLE0G122MDO1TDCAP ALUM POLY 1200UF 20% 4V TH Nichicon |
0 |
|
规格书 |
PLE | Cut Tape (CT) | Obsolete | Polymer | 1200 µF | ±20% | 4 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PLV1J470MDL1CAP ALUM POLY 47UF 20% 63V TH Nichicon |
0 |
|
规格书 |
PLV | Bulk | Obsolete | Polymer | 47 µF | ±20% | 63 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCX1C820MCL1GSCAP ALUM POLY 82UF 20% 16V SMD Nichicon |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 45mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCJ0E152MCL1GSCAP ALUM POLY 1500UF 20% 2.5V Nichicon |
0 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PLE0E152MDO1CAP ALUM POLY 1500UF 20% 2.5V TH Nichicon |
0 |
|
规格书 |
PLE | Bulk | Not For New Designs | Polymer | 1500 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCJ0E102MCL1GSCAP ALUM POLY 1000UF 20% 2.5V Nichicon |
0 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.26 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ0E152MCL6GSCAP ALUM POLY 1500UF 20% 2.5V Nichicon |
0 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
