铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCF1D680MCL1GSCAP ALUM POLY 68UF 20% 20V SMD Nichicon |
0 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCH1C681MCL1GSCAP ALUM POLY 680UF 20% 16V SMD Nichicon |
0 |
|
规格书 |
PCH | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 16 V | 19mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCJ0E561MCL4GSCAP ALUM POLY 560UF 20% 2.5V SMD Nichicon |
0 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCR1A331MCL1GSCAP ALUM POLY 330UF 20% 10V SMD Nichicon |
0 |
|
规格书 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 10 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

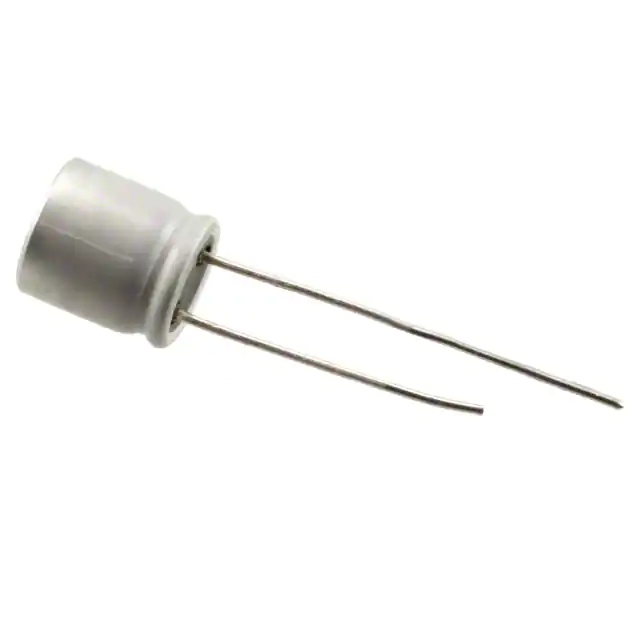

PLG0G122MCO1TDCAP ALUM POLY 1200UF 20% 4V TH Nichicon |
0 |
|
规格书 |
PLG | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PCH1D561MCL1GSCAP ALUM POLY 560UF 20% 20V SMD Nichicon |
0 |
|
规格书 |
PCH | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 20 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

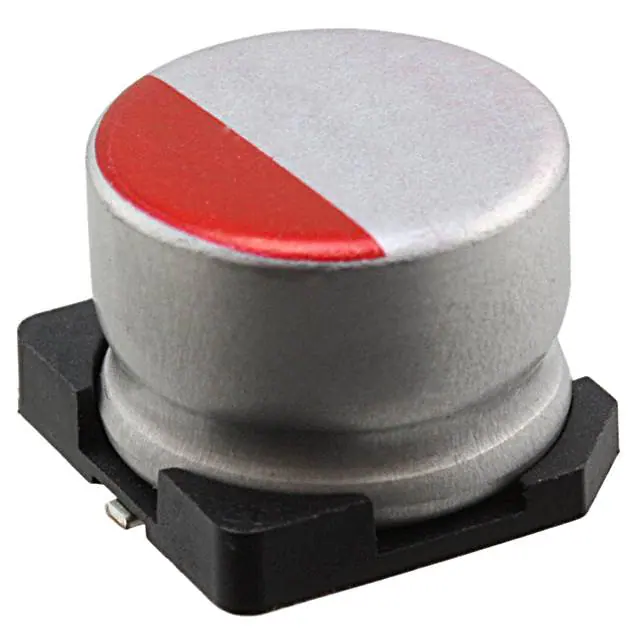

RPA1C221MCN1GSCAP ALUM POLY 220UF 20% 16V SMD Nichicon |
0 |
|
规格书 |
FPCAP, RPA | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 345 mA @ 120 Hz | 3.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCH1C561MCL1GSCAP ALUM POLY 560UF 20% 16V SMD Nichicon |
0 |
|
规格书 |
PCH | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 16 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCX1D560MCL1GSCAP ALUM POLY 56UF 20% 20V SMD Nichicon |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 20 V | 50mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCR2A120MCL1GSCAP ALUM POLY 12UF 20% 100V SMD Nichicon |
0 |
|
规格书 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 12 µF | ±20% | 100 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
