铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNU1H390MDN1CAP ALUM POLY 39UF 20% 50V TH Nichicon |
0 |
|
规格书 |
FPCAP, RNU | Bulk | Active | Polymer | 39 µF | ±20% | 50 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
RNU1E330MDN1PXCAP ALUM POLY 33UF 20% 25V TH Nichicon |
0 |
|
规格书 |
FPCAP, RNU | Tape & Box (TB) | Active | Polymer | 33 µF | ±20% | 25 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RNU1E330MCN1CAP ALUM 100UF 63V Nichicon |
0 |
|
规格书 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PCH1C121MCL1GSCAP ALUM POLY 120UF 20% 16V SMD Nichicon |
0 |
|
规格书 |
PCH | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 36mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 45 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.248" (6.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
RPS0G681MCN1GSCAP ALUM POLY 680UF 20% 4V SMD Nichicon |
0 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

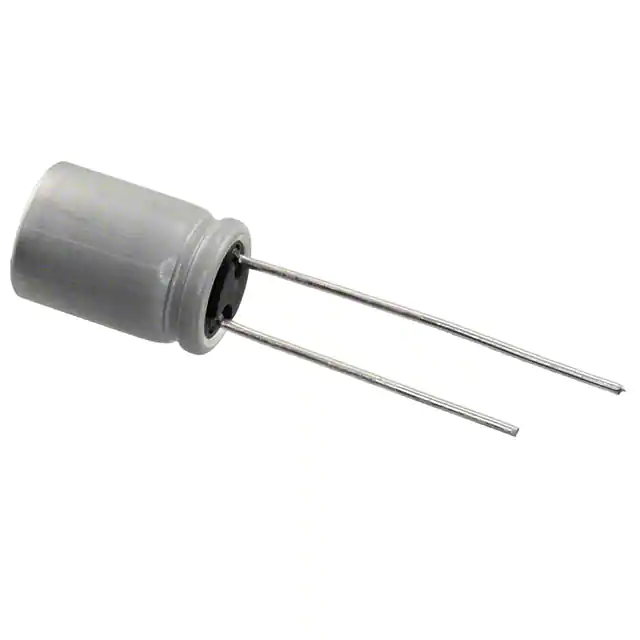

PLS0G681MDO1CAP ALUM POLY 680UF 20% 4V TH Nichicon |
0 |
|
规格书 |
PLS | Bulk | Active | Polymer | 680 µF | ±20% | 4 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCR0J561MCL4GSCAP ALUM POLY 560UF 20% 6.3V SMD Nichicon |
0 |
|
规格书 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 6.3 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
RNU1C681MDN1CAP ALUM POLY 680UF 20% 16V TH Nichicon |
0 |
|
规格书 |
FPCAP, RNU | Bulk | Active | Polymer | 680 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PCG0E221MCL1GSCAP ALUM POLY 220UF 20% 2.5V SMD Nichicon |
0 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
PCG0G181MCL1GSCAP ALUM POLY 180UF 20% 4V SMD Nichicon |
0 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 32mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
