铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RKS1E181MCNAHHGSCAP ALUM POLY 180UF 20% 25V SMD Nichicon |
0 |
|
规格书 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCJ0G151MCL1GSCAP ALUM POLY 150UF 20% 4V SMD Nichicon |
0 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.61 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

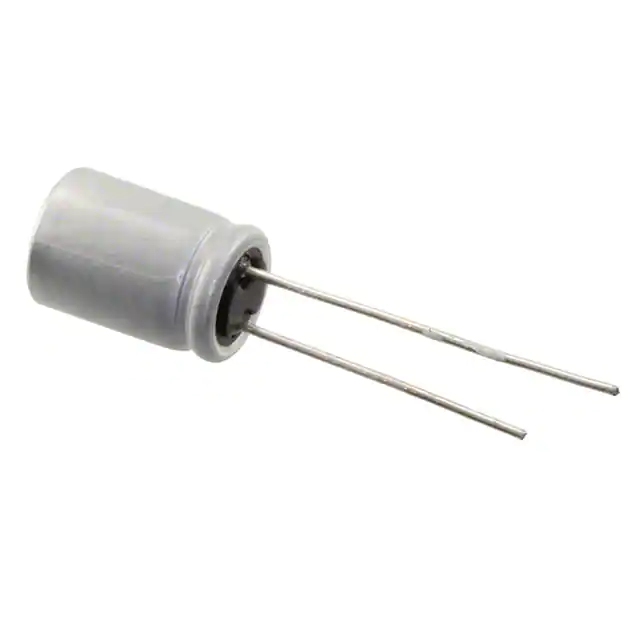

PLS0E821MCO6CAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
0 |
|
规格书 |
PLS | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
PLS0E821MCO8CAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
0 |
|
规格书 |
PLS | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
PLS0E821MDO1CAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
0 |
|
规格书 |
PLS | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
PCH1E560MCL1GSCAP ALUM POLY 56UF 20% 25V SMD Nichicon |
0 |
|
规格书 |
PCH | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 25 V | 43mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 45 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.248" (6.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
RKS1D181MCNAHHGSCAP ALUM POLY 180UF 20% 20V SMD Nichicon |
0 |
|
规格书 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 20 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RKS1V121MCNAHHGSCAP ALUM POLY 120UF 20% 35V SMD Nichicon |
0 |
|
规格书 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 35 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RKS1E470MCNAHHGSCAP ALUM POLY 47UF 20% 25V SMD Nichicon |
0 |
|
规格书 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RKS1H470MCNAHHGSCAP ALUM POLY 47UF 20% 50V SMD Nichicon |
0 |
|
规格书 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
