交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W0812-760AC/DC DESKTOP ADAPTER 12V 8W |
0 |
|
- |
W08 | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 670mA | 8 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | - | - |
|
DPD120050-P1/RAC/DC WALL MOUNT ADAPTER 12V 6W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 500mA | 6 W | - | Positive Tip, Negative Sleeve | ITE (Commercial) | - | - | Phono Plug, 3.5mm O.D. x 14.5mm | 72" (1.83m) | NEMA 1-15P | - | - | - |
|

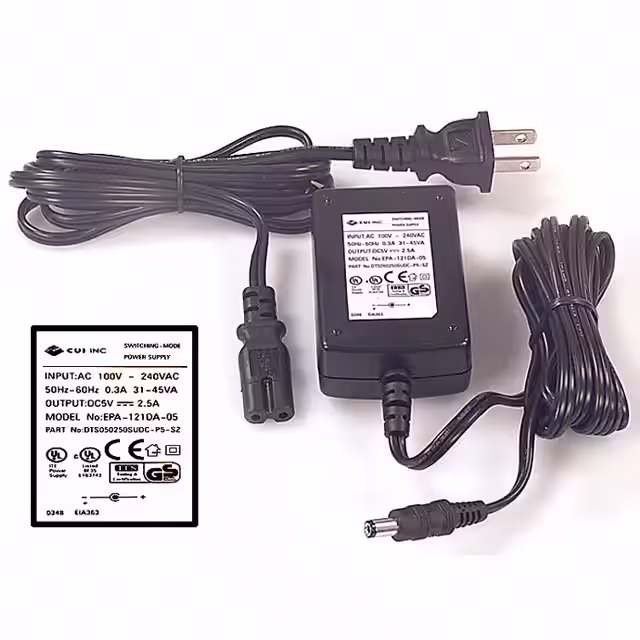

DTS050250SUDC-P5P-SZAC/DC DESKTOP ADAPTER 5V 13W |
0 |
|
规格书 |
- | Bulk | Obsolete | - | Desktop (Class II) | Cord | 90 ~ 264 VAC | 5V | 2.5A | 13 W | - | Positive Center | ITE (Commercial) | 60% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 2.95" L x 1.87" W x 1.04" H (75.0mm x 47.5mm x 26.5mm) | CE, GS, UL |
|
DTS090133SUDC-P5P-SZAC/DC DESKTOP ADAPTER 9V 12W |
0 |
|
规格书 |
- | Bulk | Obsolete | - | Desktop (Class II) | Cord | 90 ~ 264 VAC | 9V | 1.33A | 12 W | - | Positive Center | ITE (Commercial) | 60% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 2.95" L x 1.87" W x 1.04" H (75.0mm x 47.5mm x 26.5mm) | CE, GS, UL |
|

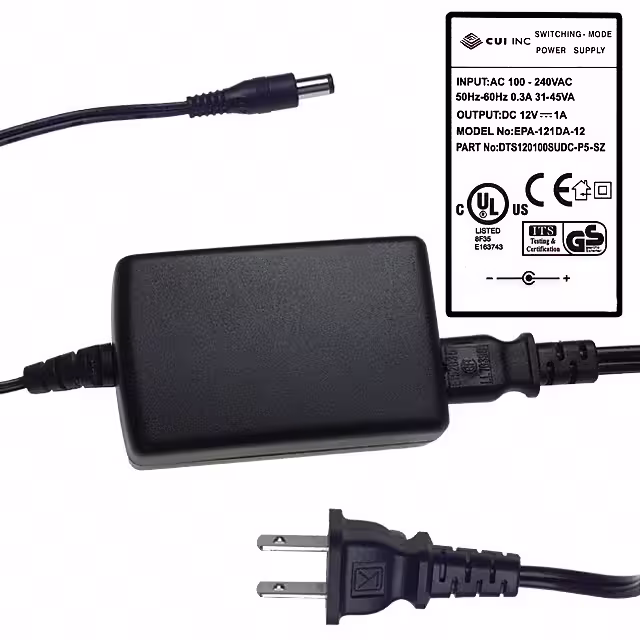

DTS120100SUDC-P5P-SZAC/DC DESKTOP ADAPTER 12V 12W |
0 |
|
规格书 |
- | Bulk | Obsolete | - | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 1A | 12 W | - | Positive Center | ITE (Commercial) | 60% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 2.95" L x 1.87" W x 1.04" H (75.0mm x 47.5mm x 26.5mm) | CE, GS, UL |
|
DPS050200UPS-P5P-SZAC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | - | Positive Center | ITE (Commercial) | 60% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.36" L x 1.73" W x 0.98" H (60.0mm x 44.0mm x 25.0mm) | - |
|

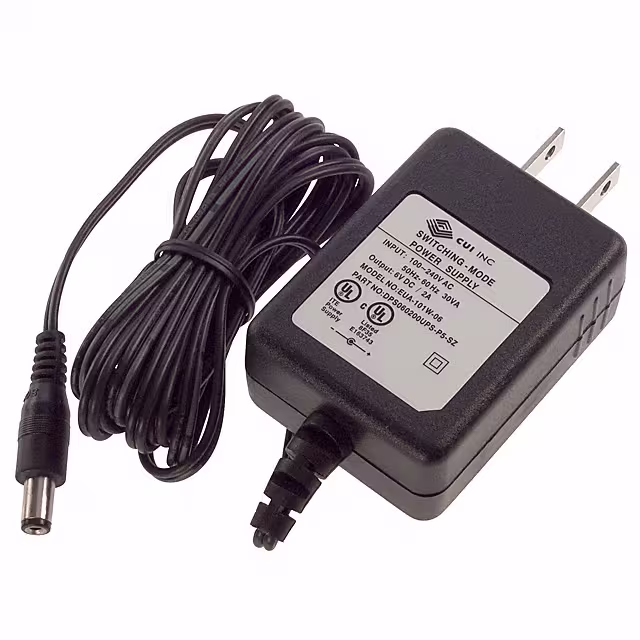

DPS060200UPS-P5P-SZAC/DC WALL MOUNT ADAPTER 6V 12W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 2A | 12 W | - | Positive Center | ITE (Commercial) | 60% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.36" L x 1.73" W x 0.98" H (60.0mm x 44.0mm x 25.0mm) | - |
|
DPS240050UPS-P5P-SZAC/DC WALL MOUNT ADAPTER 24V 12W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | - | Positive Center | ITE (Commercial) | 65% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.36" L x 1.73" W x 0.98" H (60.0mm x 44.0mm x 25.0mm) | - |
|

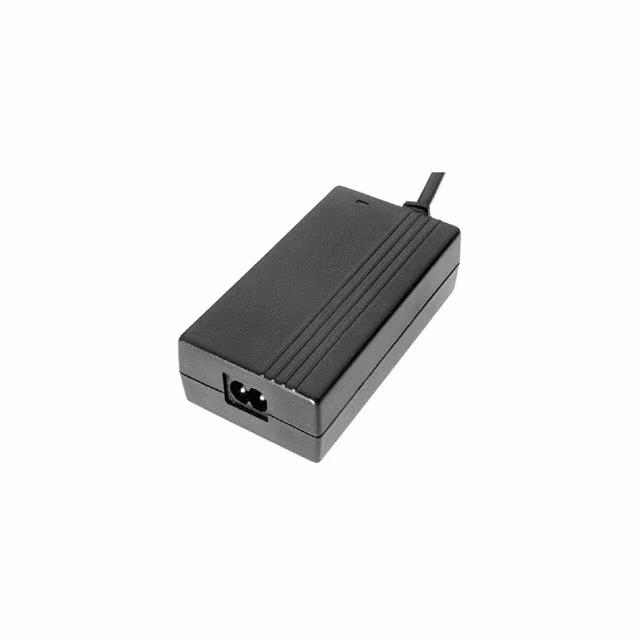

DTS060330UDC-P5PAC/DC DESKTOP ADAPTER 6V 20W |
0 |
|
规格书 |
- | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 6V | 3.3A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | 60% | 10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | IEC 320-C8 | - | 4.33" L x 2.36" W x 1.34" H (110.0mm x 60.0mm x 34.0mm) | CE, cULus |
|
FW1805-760-NCAC/DC DESKTOP ADAPTER 5V 15W |
0 |
|
规格书 |
FW18 (18W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 5V | 3A | 15 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | - |
|
FW1812-760-NCAC/DC DESKTOP ADAPTER 12V 18W |
0 |
|
规格书 |
FW18 (18W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 1.5A | 18 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | - |
|
FW3012-760-NCAC/DC DESKTOP ADAPTER 12V 30W |
0 |
|
规格书 |
FW30 (30W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 2.5A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|
FW3015-760-NCAC/DC DESKTOP ADAPTER 15V 30W |
0 |
|
规格书 |
FW30 (30W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 2A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|
FW3024-760-NCAC/DC DESKTOP ADAPTER 24V 30W |
0 |
|
规格书 |
FW30 (30W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 1.25A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|
FW5012-760-NCAC/DC DESKTOP ADAPTER 12V 50W |
0 |
|
规格书 |
FW50 (50W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 4.15A | 50 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
FW10024-D5-NCAC/DC DESKTOP ADAPTER 24V 96W |
0 |
|
规格书 |
FW100 (96W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 4A | 96 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
|
|
WM1830/.6-760AC/DC WALL MOUNT ADAPTER 30V 18W |
0 |
|
- |
WM | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 108 ~ 132 VAC | 30V | 600mA | 18 W | - | Positive Center | ITE (Commercial) | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | NEMA 1-15P | - | - | - |
|

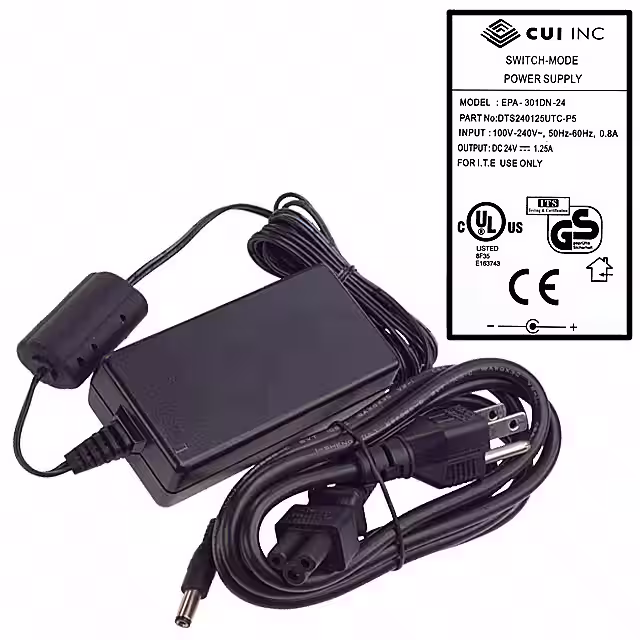

DTS240125UTC-P5PAC/DC DESKTOP ADAPTER 24V 30W |
0 |
|
规格书 |
- | Bulk | Obsolete | - | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | 60% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | IEC 320-C8 | - | 3.54" L x 2.28" W x 1.10" H (90.0mm x 58.0mm x 28.0mm) | CE, cULus, GS |
|
DTS150200UTC-P5PAC/DC DESKTOP ADAPTER 15V 30W |
0 |
|
规格书 |
- | Bulk | Obsolete | - | Desktop (Class II) | Cord | 90 ~ 264 VAC | 15V | 2A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | 70% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | IEC 320-C8 | - | 3.54" L x 2.28" W x 1.10" H (90.0mm x 58.0mm x 28.0mm) | CE, cULus, GS |
|
|
212AS03032AC/DC WALL MNT ADAPTER 3V 960MW |
0 |
|
规格书 |
212AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 3V | 320mA | 960 mW | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.50" L x 1.57" W x 1.40" H (63.5mm x 40.0mm x 35.5mm) | cULus |
