交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WP1212-760AC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
规格书 |
WP12 | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 132 VAC | 12V | 1A | 12 W | - | Positive Center | ITE (Commercial) | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | NEMA 1-15P | - | 2.95" L x 1.95" W x 0.98" H (75.0mm x 49.5mm x 25.0mm) | - |
|
WP1224-760AC/DC WALL MOUNT ADAPTER 24V 12W |
0 |
|
规格书 |
WP12 | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 132 VAC | 24V | 500mA | 12 W | - | Positive Center | ITE (Commercial) | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | NEMA 1-15P | - | 2.95" L x 1.95" W x 0.98" H (75.0mm x 49.5mm x 25.0mm) | - |
|
W1505-760AC/DC DESKTOP ADAPTER 5V 13W |
0 |
|
- |
W15 | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 2.5A | 13 W | - | Positive Center | ITE (Commercial) | 75% | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | - | - |
|
W4012-760AC/DC DESKTOP ADAPTER 12V 48W |
0 |
|
规格书 |
W40 (50W) | - | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 4A | 48 W | - | Positive Center | ITE (Commercial) | 85% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C8 | - | 4.13" L x 2.36" W x 1.12" H (104.9mm x 59.9mm x 28.4mm) | CE |
|
W4024-760AC/DC DESKTOP ADAPTER 24V 50W |
0 |
|
规格书 |
W40 (50W) | - | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 2.1A | 50 W | - | Positive Center | ITE (Commercial) | 85% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C8 | - | 4.13" L x 2.36" W x 1.12" H (104.9mm x 59.9mm x 28.4mm) | CE |
|
W4221-D5AC/DC DESKTOP ADAPTER 5V/12V 42W |
0 |
|
规格书 |
W42 (42W) | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V, 12V | 4.8A, 1.5A | 42 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.50" L x 3.33" W x 1.50" H (139.7mm x 84.6mm x 38.1mm) | CB, CE |
|
W4231-D5AC/DC DSKTP ADAPTER 5V +/-12 42W |
0 |
|
规格书 |
W42 (42W) | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V, 12V, -12V | 3A, 2.5A, 500mA | 42 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.50" L x 3.33" W x 1.50" H (139.7mm x 84.6mm x 38.1mm) | CB, CE |
|
W4232-D5AC/DC DSKTP ADAPTER 5V +/-12 42W |
0 |
|
规格书 |
W42 (42W) | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V, 12V, -12V | 4.8A, 1.5A, 500mA | 42 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.50" L x 3.33" W x 1.50" H (139.7mm x 84.6mm x 38.1mm) | CB, CE |
|
M42012-760AC/DC DESKTOP ADAPTER 12V 20W |
0 |
|
规格书 |
M4 (20W) | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 1.7A | 20 W | - | Positive Center | ITE (Commercial) | 75% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | CE |
|
W7212-D5AC/DC DESKTOP ADAPTER 12V 72W |
0 |
|
- |
W72 | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 265 VAC | 12V | 6A | 72 W | - | - | ITE (Commercial) | - | - | DIN, 5 Pin | - | IEC 320-C14 | - | - | - |
|
W7224-D5AC/DC DESKTOP ADAPTER 24V 72W |
0 |
|
- |
W72 | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 265 VAC | 24V | 3A | 72 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | - | IEC 320-C14 | - | - | - |
|

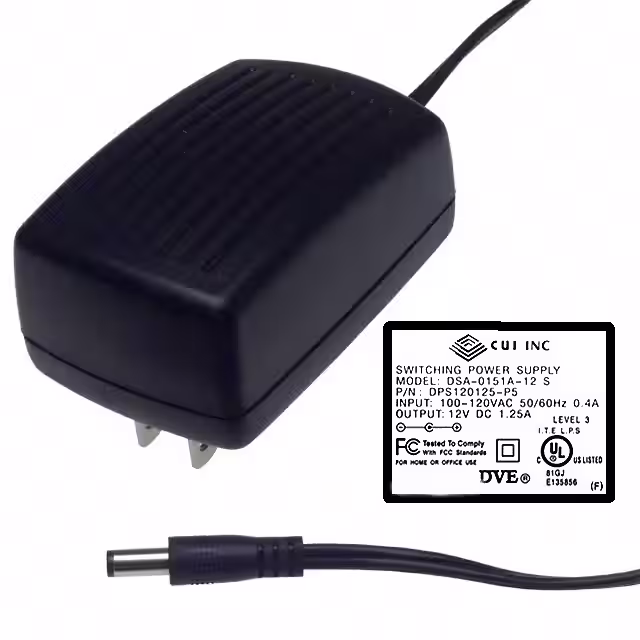

DPS120125-P5PAC/DC WALL MOUNT ADAPTER 12V 15W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 1.25A | 15 W | - | Positive Center | ITE (Commercial) | 70% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 3.19" L x 2.09" W x 1.38" H (81.0mm x 53.0mm x 35.0mm) | - |
|

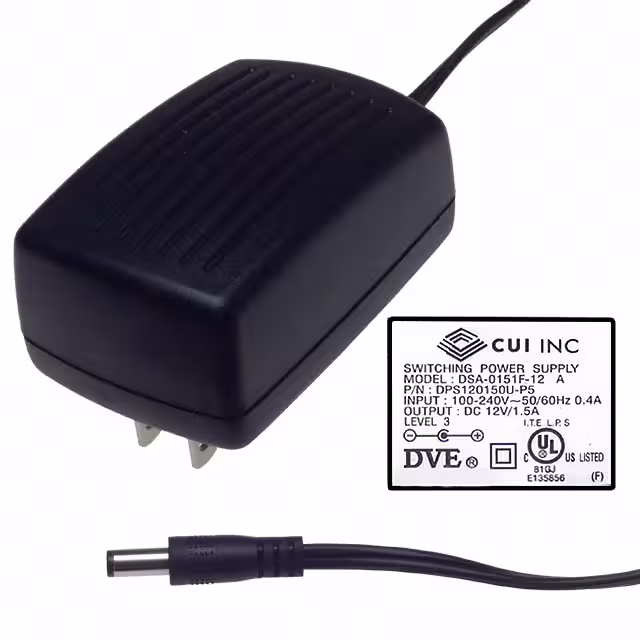

DPS120150U-P5PAC/DC WALL MOUNT ADAPTER 12V 18W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 1.5A | 18 W | - | Positive Center | ITE (Commercial) | 70% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 3.19" L x 2.09" W x 1.38" H (81.0mm x 53.0mm x 35.0mm) | - |
|
DPR050020-P6/R-SZAC/DC WALL MOUNT ADAPTER 5V 1W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 5V | 200mA | 1 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | - | - |
|

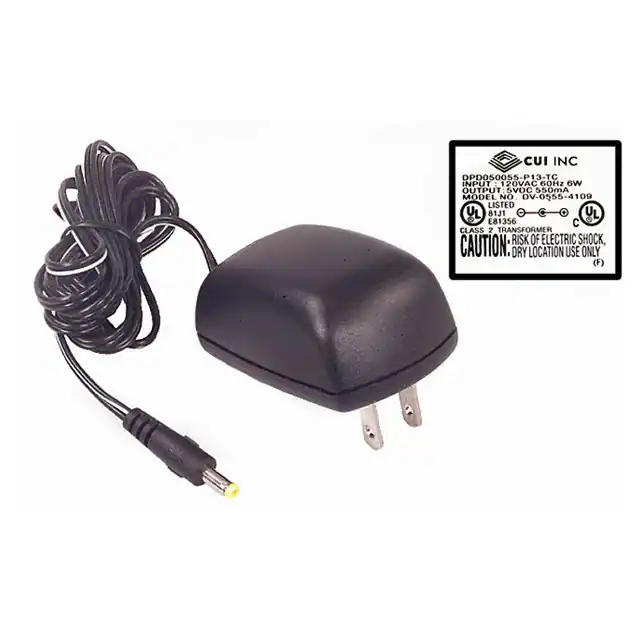

DPD050055-P13P-TCAC/DC WALL MOUNT ADAPTER 5V 2.5W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 5V | 500mA | 2.5 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 1.7mm I.D. x 4.0mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.32" L x 1.77" W x 1.56" H (59.0mm x 45.0mm x 39.5mm) | - |
|
DPD090050-P5P-TCAC/DC WALL MOUNT ADAPTER 9V 4.5W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 9V | 500mA | 4.5 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.07" L x 1.91" W x 1.33" H (78.0mm x 48.5mm x 33.9mm) | - |
|

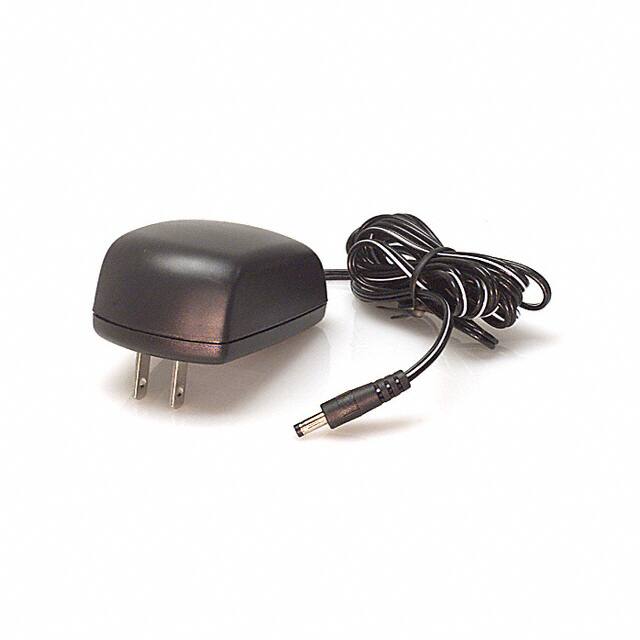

DPD120030-P13P-TCAC/DC WALL MNT ADAPTER 12V 3.6W |
0 |
|
规格书 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 300mA | 3.6 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 1.7mm I.D. x 4.0mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.32" L x 1.77" W x 1.56" H (59.0mm x 45.0mm x 39.5mm) | - |
|
MW4015-760-NC-WHAC/DC DESKTOP ADAPTER 15V 39W |
0 |
|
规格书 |
MW40 (40W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 2.6A | 39 W | - | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
MW4018-760-NC-WHAC/DC DESKTOP ADAPTER 18V 40W |
0 |
|
规格书 |
MW40 (40W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 18V | 2.2A | 40 W | - | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
WP0612-760AC/DC WALL MOUNT ADAPTER 12V 6W |
0 |
|
规格书 |
WP06 | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | 75% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | NEMA 1-15P | - | - | CE |
