交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GEM18I15-P1JAC/DC WALL MOUNT ADAPTER 15V 18W MEAN WELL USA Inc. |
5 |
|
规格书 |
GEM18I (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 15V | 1.2A | 18 W | 75mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.97" L x 1.54" W x 2.21" H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cRUus, TUV |
|
|
GEM18I18-P1JAC/DC WALL MOUNT ADAPTER 18V 18W MEAN WELL USA Inc. |
4 |
|
规格书 |
GEM18I (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 18V | 1A | 18 W | 75mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.97" L x 1.54" W x 2.21" H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cRUus, TUV |
|

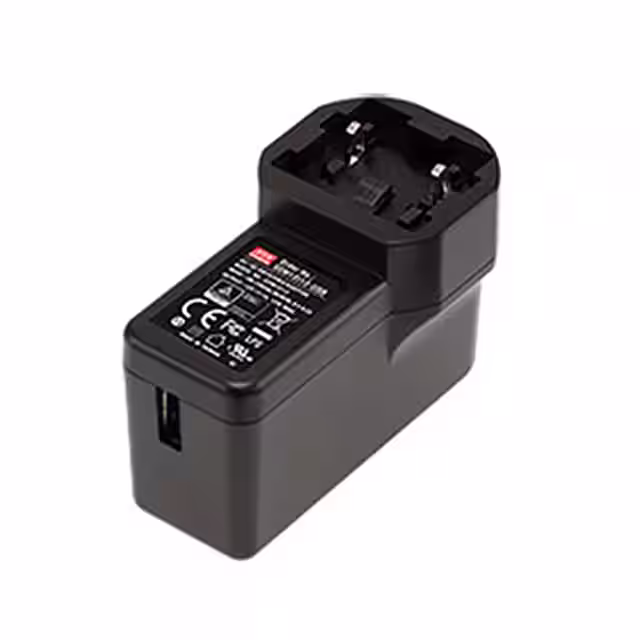

GEM12I05-USBAC/DC WALL MOUNT ADAPTER 5V 12W MEAN WELL USA Inc. |
0 |
|
规格书 |
GEM12I (12W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 5V | 2.4A | 12 W | 75mW (Max) | - | Medical | Level VI | -20°C ~ 70°C | USB A Receptacle | - | Multi-Blade (Sold Separately) | - | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, TUV |
|

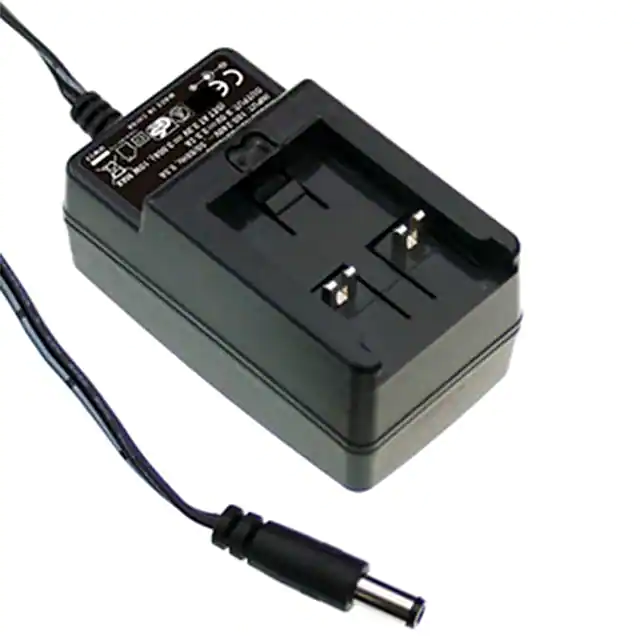

GE30I15-P1JAC/DC WALL MOUNT ADAPTER 15V 30W MEAN WELL USA Inc. |
0 |
|
规格书 |
GE30 (30W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 2A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -10°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.19" L x 1.69" W x 1.59" H (81.0mm x 43.0mm x 40.5mm) | CCC, CE, cULus, GS, RCM |
|
|
GE30I18-P1JAC/DC WALL MOUNT ADAPTER 18V 30W MEAN WELL USA Inc. |
0 |
|
规格书 |
GE30 (30W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.66A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -10°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.19" L x 1.69" W x 1.59" H (81.0mm x 43.0mm x 40.5mm) | CCC, CE, cULus, GS, RCM |
|

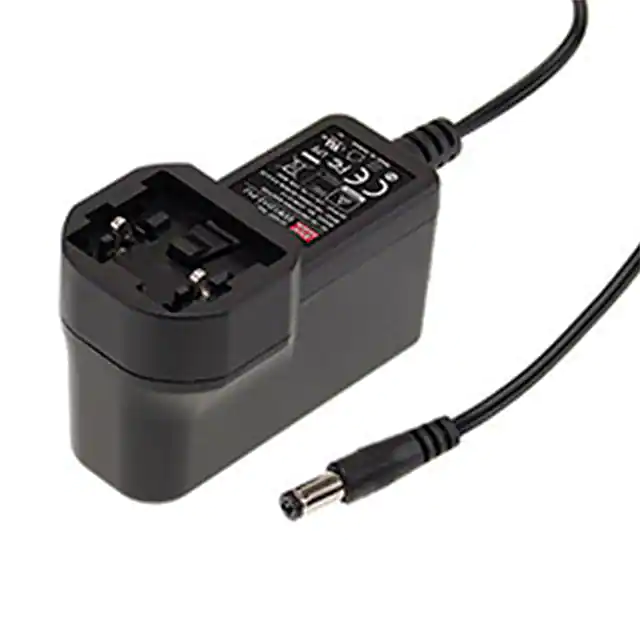

GEM12I15-P1JAC/DC WALL MOUNT ADAPTER 15V 12W MEAN WELL USA Inc. |
3 |
|
规格书 |
GEM12I (12W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 15V | 800mA | 12 W | 75mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, TUV |
|
SGA25E07-P1JAC/DC WALL MNT ADAPTER 7.5V 22W MEAN WELL USA Inc. |
0 |
|
规格书 |
SGA25E (25W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 7.5V | 2.93A | 22 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/16 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS |
|
|
SGA25E09-P1JAC/DC WALL MOUNT ADAPTER 9V 25W MEAN WELL USA Inc. |
0 |
|
规格书 |
SGA25E (25W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 2.77A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/16 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS |
|
|
SGA25E48-P1JAC/DC WALL MOUNT ADAPTER 48V 25W MEAN WELL USA Inc. |
0 |
|
规格书 |
SGA25E (25W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 520mA | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS |
|
SGA25U09-P1JAC/DC WALL MOUNT ADAPTER 9V 25W MEAN WELL USA Inc. |
0 |
|
规格书 |
SGA25U (25W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 2.77A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, cULus |
