交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSM12U24-P1JAC/DC WALL MNT ADAPTER USA MEAN WELL USA Inc. |
2 |
|
规格书 |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | 500mA | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.8" (1.80m) | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | cURus, EAC, FCC |
|
|
GSM12U09-P1JAC/DC WALL MNT MED ADPT USA CBL MEAN WELL USA Inc. |
1 |
|
规格书 |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 9V | 1.33A | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | cURus, EAC, FCC |
|
|
GSM12E12-P1JAC/DC WALL MNT MED ADPT EU CBL C MEAN WELL USA Inc. |
0 |
|
规格书 |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 12V | 1A | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.8" (1.80m) | CEE 7/16 | - | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | CE, EAC, TUV, UKCA |
|
GS15A-11P1JAC/DC DESKTOP ADAPTER 7.5V 12W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS15A (15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 1.6A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS |
|
|
GS15A-2P1JAC/DC DESKTOP ADAPTER 9V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS15A (15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 1.66A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS |
|
|
GS15A-5P1JAC/DC DESKTOP ADAPTER 18V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS15A (15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 830mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS |
|
|
GS15A-8P1JAC/DC DESKTOP ADAPTER 48V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS15A (15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 310mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS |
|

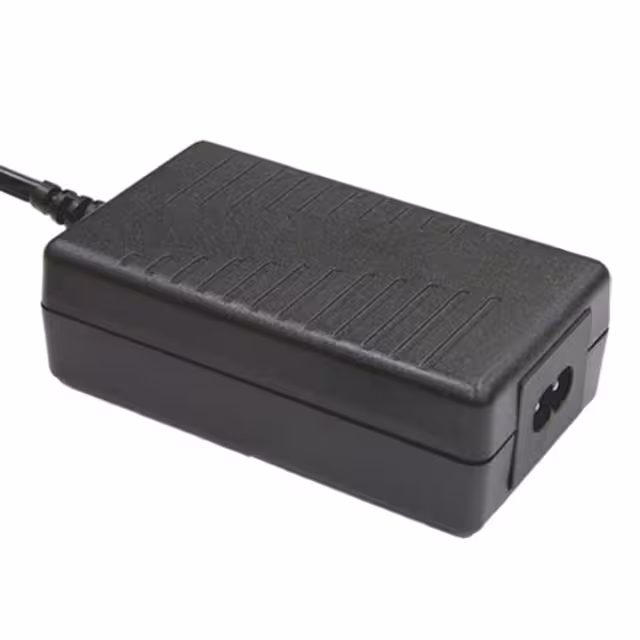

GS15B-11P1JAC/DC DESKTOP ADAPTER 7.5V 12W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 1.6A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS |
|
|
GS15B-1P1JAC/DC DESKTOP ADAPTER 5V 12W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS |
|
|
GS15B-2P1JAC/DC DESKTOP ADAPTER 9V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 1.66A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS |
