交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

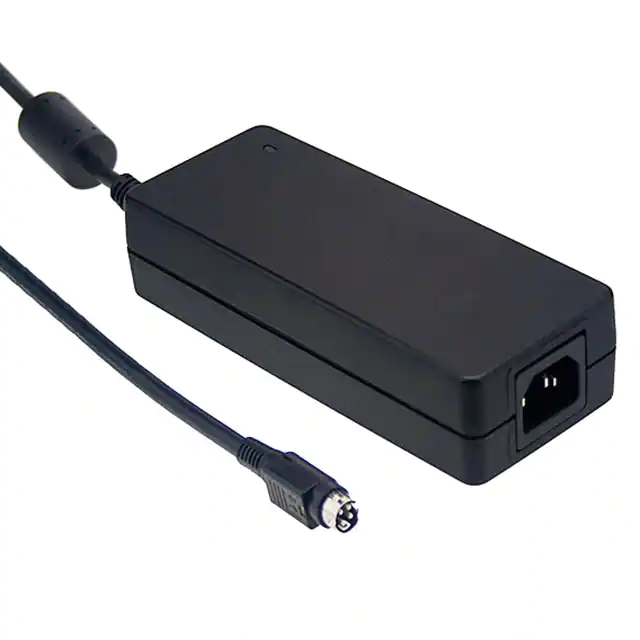

GST120A15-R7BAC/DC DESKTOP ADAPTER 15V 105W MEAN WELL USA Inc. |
229 |
|
规格书 |
GST120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 7A | 105 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|

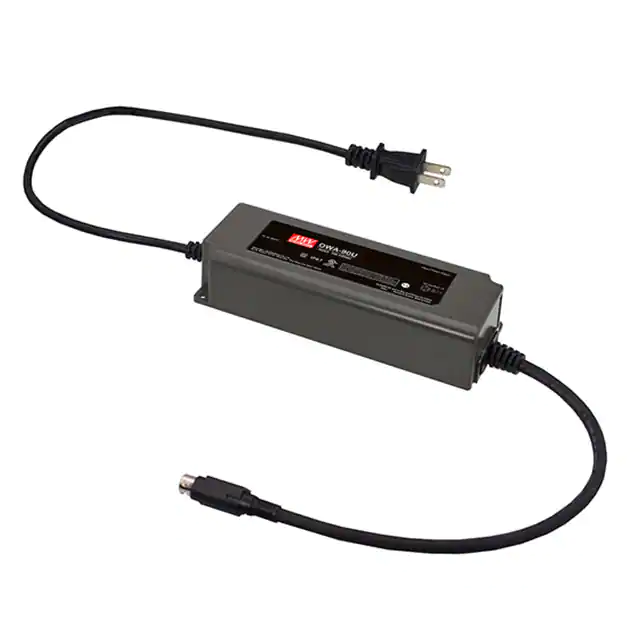

OWA-90U-24-P1MAC/DC DESKTOP ADAPTER 24V 90W MEAN WELL USA Inc. |
652 |
|
规格书 |
OWA-90U (90W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (300.00mm) | NEMA 1-15P | - | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) | cULus, FCC, UL |
|

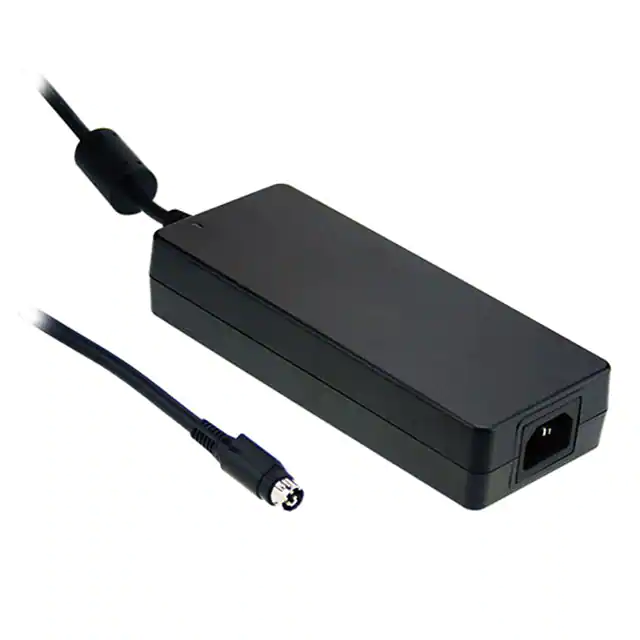

GST160A24-R7BAC/DC DESKTOP ADAPTER 24V 160W MEAN WELL USA Inc. |
2,455 |
|
规格书 |
GST160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 6.67A | 160 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GST160A20-R7BAC/DC DESKTOP ADAPTER 20V 160W MEAN WELL USA Inc. |
861 |
|
规格书 |
GST160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 20V | 8A | 160 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GST160A48-R7BAC/DC DESKTOP ADAPTER 48V 160W MEAN WELL USA Inc. |
145 |
|
规格书 |
GST160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 48V | 3.34A | 160 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GST160A15-R7BAC/DC DESKTOP ADAPTER 15V 144W MEAN WELL USA Inc. |
36 |
|
规格书 |
GST160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 9.6A | 144 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|

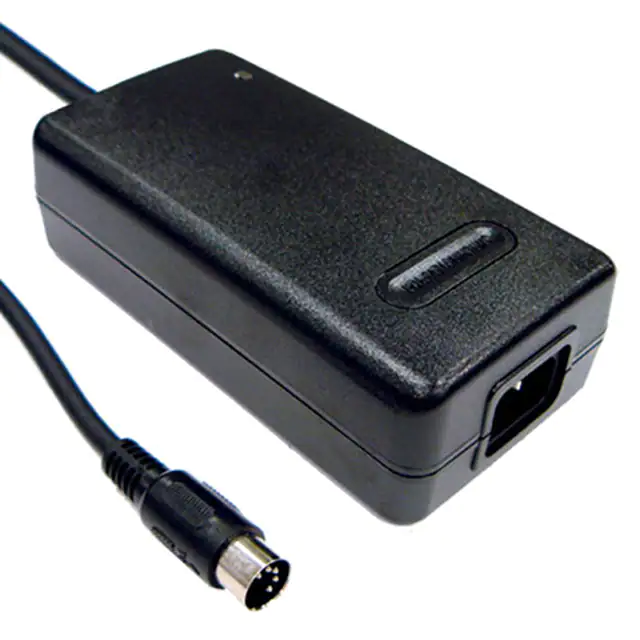

GP50A13A-R1BAC/DC DSKTP ADPT 5V/12V/-5V 47W MEAN WELL USA Inc. |
47 |
|
规格书 |
GP50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -5V | 4A, 2A, 500mA | 47 W | 300mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 70°C | DIN, 5 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 5.75" L x 2.97" W x 1.69" H (146.0mm x 75.5mm x 43.0mm) | CBE, CE, cULus, GS |
|
|
GP50A14E-R1BAC/DC DESKTOP ADPT 5V +/-15V 50W MEAN WELL USA Inc. |
36 |
|
规格书 |
GP50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 15V, -15V | 4A, 1.5A, 500mA | 50 W | 300mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 70°C | DIN, 5 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 5.75" L x 2.97" W x 1.69" H (146.0mm x 75.5mm x 43.0mm) | CBE, CE, cULus, GS |
|
GSM120A48-R7BAC/DC DESKTOP ADAPTER 48V 120W MEAN WELL USA Inc. |
143 |
|
规格书 |
GSM120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 48V | 2.5A | 120 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV |
|
|
GSM120A24-R7BAC/DC DESKTOP ADAPTER 24V 120W MEAN WELL USA Inc. |
213 |
|
规格书 |
GSM120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 5A | 120 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV |
