交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

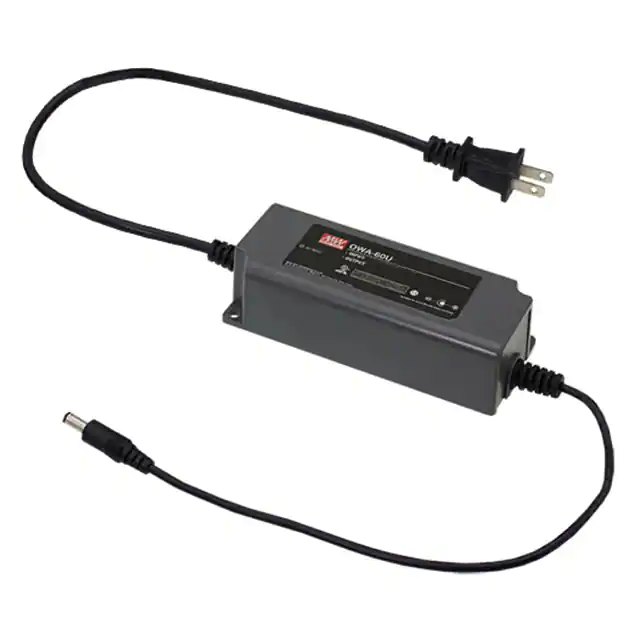

OWA-60U-24AC/DC DESKTOP ADAPTER 24V 60W MEAN WELL USA Inc. |
269 |
|
规格书 |
OWA-60U (60W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 2.5A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -35°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (300.00mm) | NEMA 1-15P | - | 5.12" L x 2.09" W x 1.38" H (130.0mm x 53.0mm x 35.0mm) | cULus, UL |
|
|
OWA-60U-12AC/DC DESKTOP ADAPTER 12V 60W MEAN WELL USA Inc. |
164 |
|
规格书 |
OWA-60U (60W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 5A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -35°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (300.00mm) | NEMA 1-15P | - | 5.12" L x 2.09" W x 1.38" H (130.0mm x 53.0mm x 35.0mm) | cULus, UL |
|

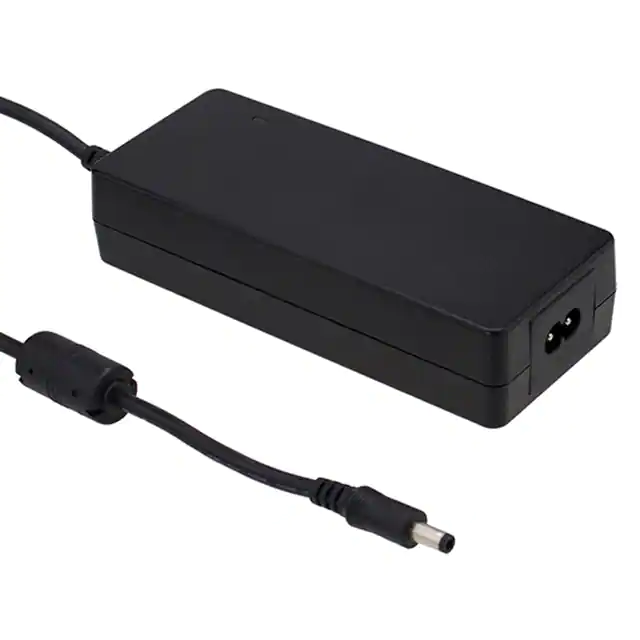

GSM90B24-P1MAC/DC DESKTOP ADAPTER 24V 90W MEAN WELL USA Inc. |
724 |
|
规格书 |
GSM90B (90W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 3.75A | 90 W | 150mW (Max) | Positive Center | Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.71" L x 2.36" W x 1.26" H (145.0mm x 60.0mm x 32.0mm) | CB, CE, cRUus, TUV |
|

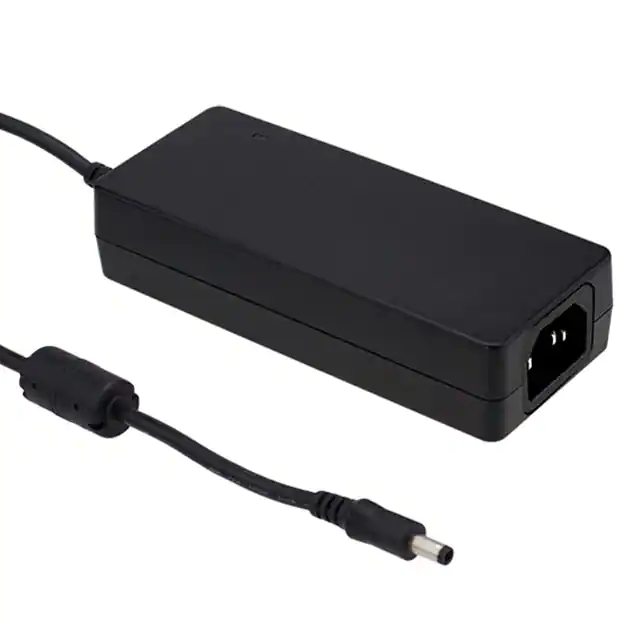

GSM90A15-P1MAC/DC DESKTOP ADAPTER 15V 90W MEAN WELL USA Inc. |
112 |
|
规格书 |
GSM90A (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 6A | 90 W | 150mW (Max) | Positive Center | Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 5.71" L x 2.36" W x 1.26" H (145.0mm x 60.0mm x 32.0mm) | CB, CE, cRUus, TUV |
|

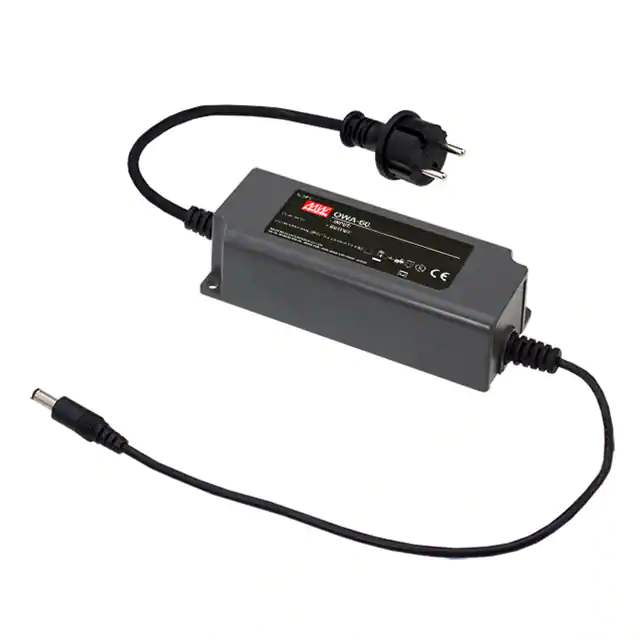

OWA-60E-12AC/DC DESKTOP ADAPTER 12V 60W MEAN WELL USA Inc. |
275 |
|
规格书 |
OWA-60E (60W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 5A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -35°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 11.8" (300.00mm) | CEE 7/7 | - | 5.12" L x 2.09" W x 1.38" H (130.0mm x 53.0mm x 35.0mm) | CB, CE, GS |
|

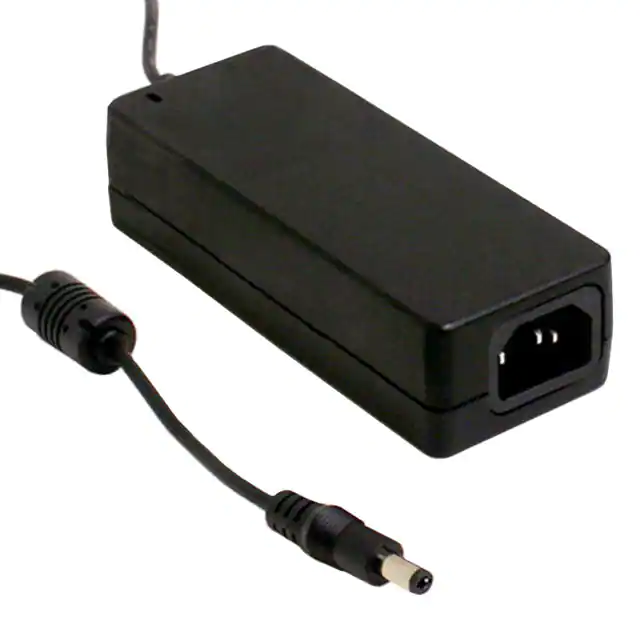

GST60A12-P1MRAC/DC DESKTOP ADAPTER 12V 60W MEAN WELL USA Inc. |
619 |
|
规格书 |
GST60A (60W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GSM90A12-P1MAC/DC DESKTOP ADAPTER 12V 80W MEAN WELL USA Inc. |
151 |
|
规格书 |
GSM90A (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 6.67A | 80 W | 150mW (Max) | Positive Center | Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 5.71" L x 2.36" W x 1.26" H (145.0mm x 60.0mm x 32.0mm) | CB, CE, cRUus, TUV |
|

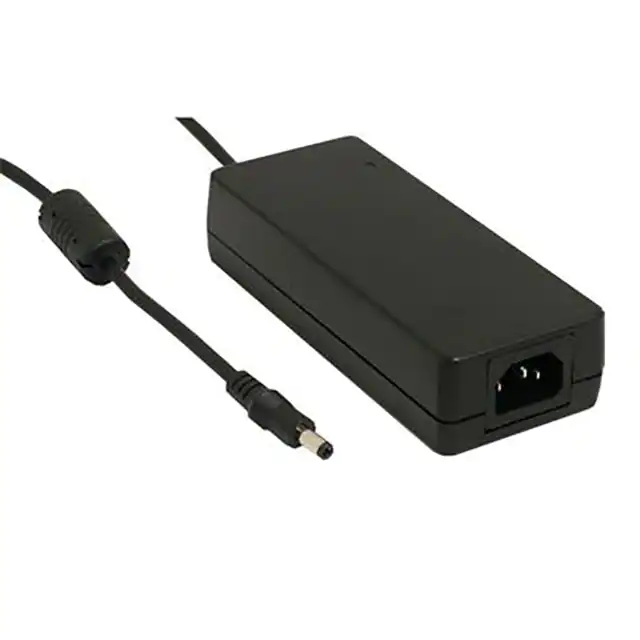

GST120A20-P1MAC/DC DESKTOP ADAPTER 20V 120W MEAN WELL USA Inc. |
1,194 |
|
规格书 |
GST120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 20V | 6A | 120 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|

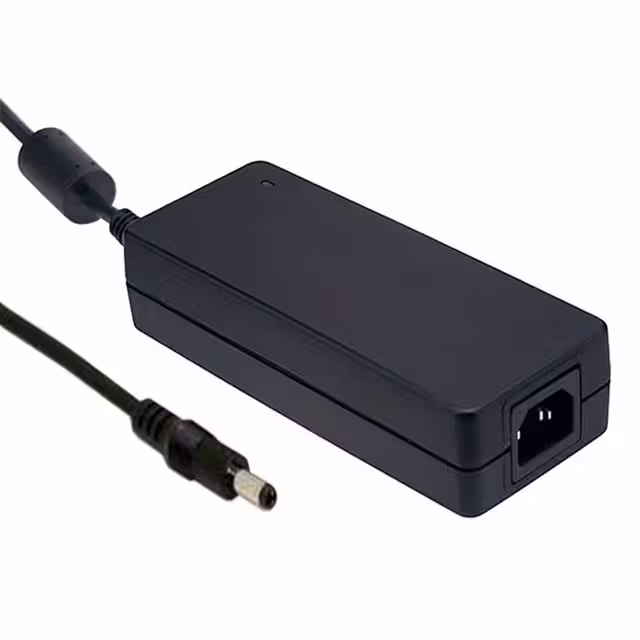

GST120A48-P1MAC/DC DESKTOP ADAPTER 48V 120W MEAN WELL USA Inc. |
156 |
|
规格书 |
GST120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 48V | 2.5A | 120 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GST120A24-R7BAC/DC DESKTOP ADAPTER 24V 120W MEAN WELL USA Inc. |
111 |
|
规格书 |
GST120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 5A | 120 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
