图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LOF225-23B36R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() 规格书 |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 36V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
![]() |
LOF225-23B27R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() 规格书 |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 27V | - | - | - | - | - | 8.35 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
![]() |

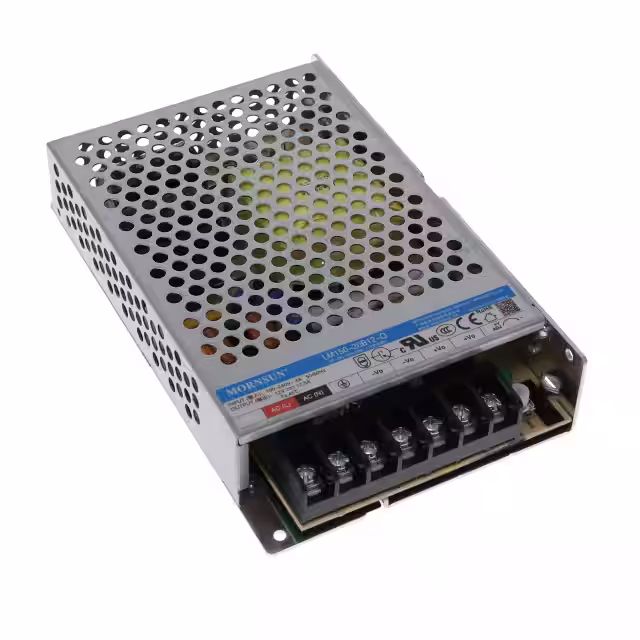

LM150-20B12-QAC/DC CONVERTER 12V 150W Mornsun America, LLC |
4 |
|
![]() 规格书 |
LM150-20Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-23B12-QAC/DC CONVERTER 12V 150W Mornsun America, LLC |
2 |
|
![]() 规格书 |
LM150-23Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

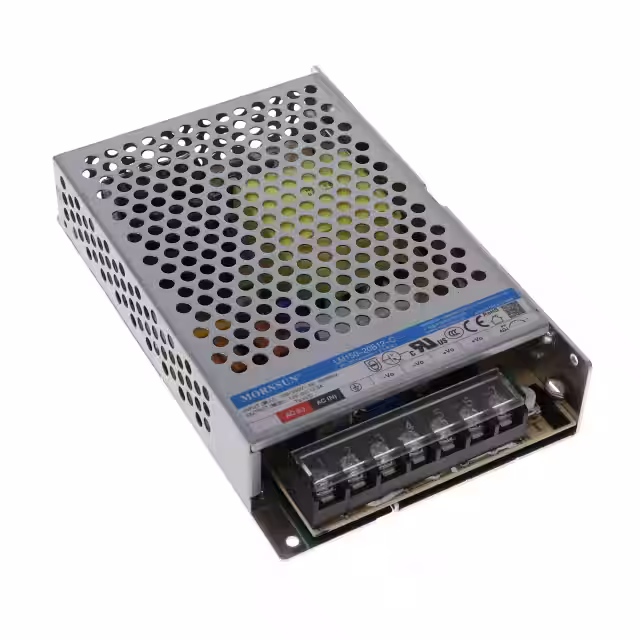

LM150-20B12-CAC/DC CONVERTER 12V 150W Mornsun America, LLC |
0 |
|
![]() 规格书 |
LM150-20Bxx-C (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-20B36-QAC/DC CONVERTER 36V 155W Mornsun America, LLC |
4 |
|
![]() 规格书 |
LM150-20Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 155W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-23B36-QAC/DC CONVERTER 36V 155W Mornsun America, LLC |
1 |
|
![]() 规格书 |
LM150-23Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 155W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-20B48-CAC/DC CONVERTER 48V 158W Mornsun America, LLC |
1 |
|
![]() 规格书 |
LM150-20Bxx-C (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM150-20B48-QAC/DC CONVERTER 48V 158W Mornsun America, LLC |
1 |
|
![]() 规格书 |
LM150-20Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LOF120-20B54OPEN FRAME AC DC CONVERTER 1 OUT Mornsun America, LLC |
0 |
|
![]() 规格书 |
LOF120-20Bxx (120W) | Tray | Not For New Designs | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC, 127 ~ 370 VDC | 54V | - | - | - | - | - | 2.22 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) |
