图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

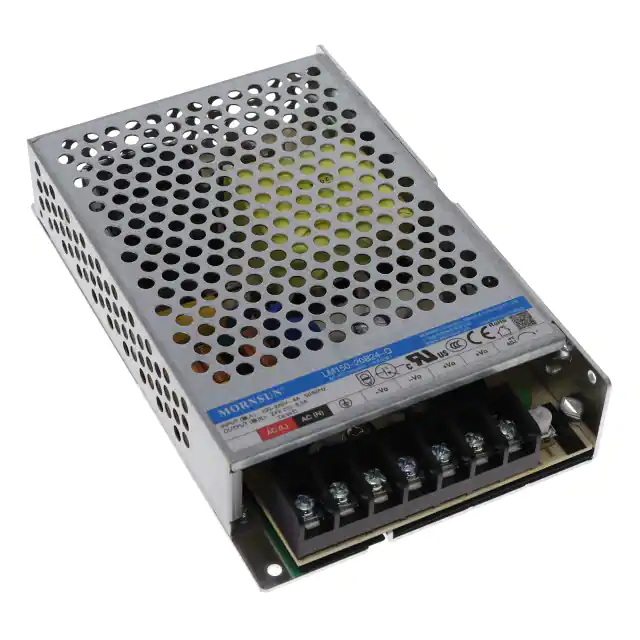

LM150-20B24-QAC/DC CONVERTER 24V 156W Mornsun America, LLC |
0 |
|
![]() 规格书 |
LM150-20Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

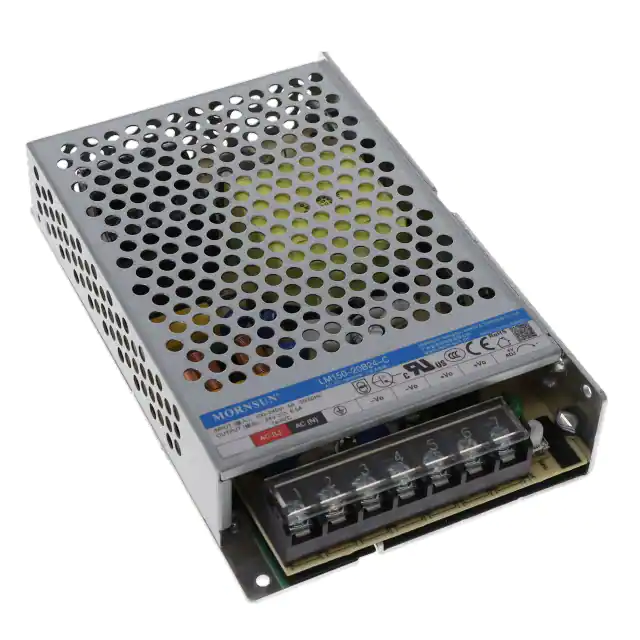

LM150-20B24-CAC/DC CONVERTER 24V 156W Mornsun America, LLC |
0 |
|
![]() 规格书 |
LM150-20Bxx-C (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

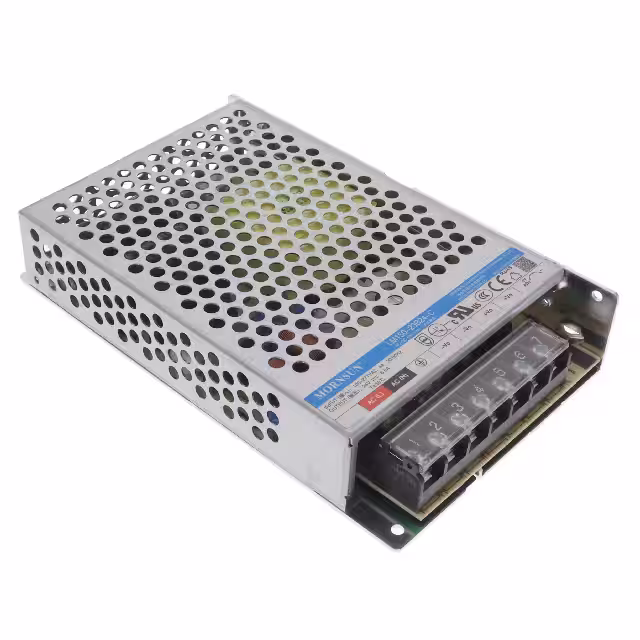

LM150-23B24-CAC/DC CONVERTER 24V 156W Mornsun America, LLC |
0 |
|
![]() 规格书 |
LM150-23Bxx-C (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

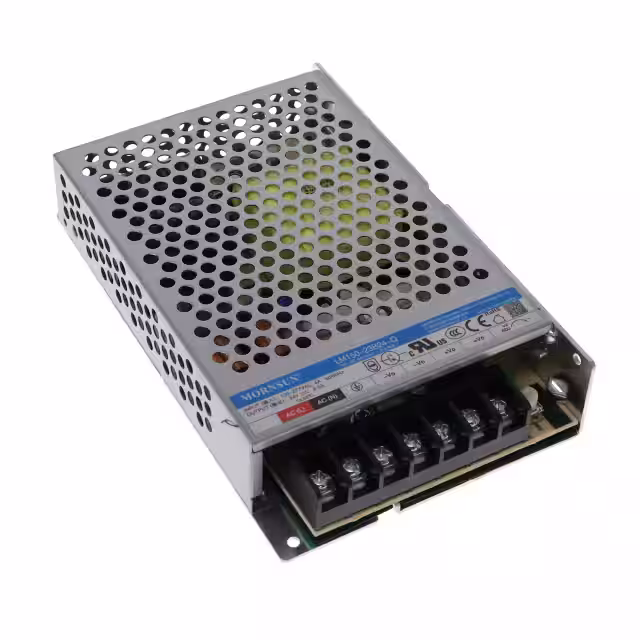

LM150-23B24-QAC/DC CONVERTER 24V 156W Mornsun America, LLC |
0 |
|
![]() 规格书 |
LM150-23Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-10B36AC/DC CONVERTER 36V 212W Mornsun America, LLC |
4 |
|
![]() 规格书 |
LM200-10Bxx (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 36V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 212W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
![]() |
LMF200-23B48UHAC/DC CONVERTER 48V 202W Mornsun America, LLC |
2 |
|
![]() 规格书 |
LMF200-23BxxUH (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
![]() |
LOF225-23B54R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() 规格书 |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 54V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
![]() |
LOF225-23B18R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() 规格书 |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 18V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
![]() |
LOF225-23B15R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() 规格书 |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
![]() |
LOF225-23B19R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() 规格书 |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 19V | - | - | - | - | - | 11.84 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
