交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS50-3.3AC/DC CONVERTER 3.3V 50W Triad Magnetics |
0 |
|
规格书 |
ALS50 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | - | - | 9.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|

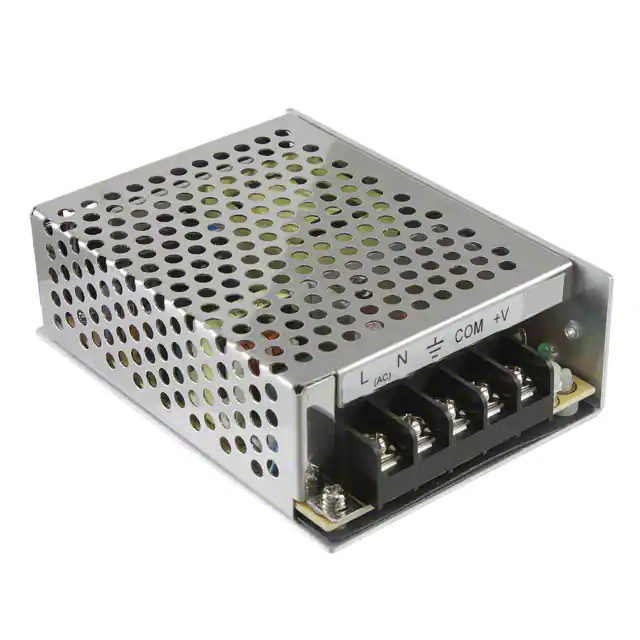

AEU65-480AC/DC CONVERTER 48V 65W Triad Magnetics |
0 |
|
规格书 |
AEU65 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.35 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
|
ALS75-3.3AC/DC CONVERTER 3.3V 40W Triad Magnetics |
0 |
|
规格书 |
ALS75 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC | 3.3V | - | - | - | - | - | 12 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.65" H (127.0mm x 76.2mm x 42.0mm) |
|

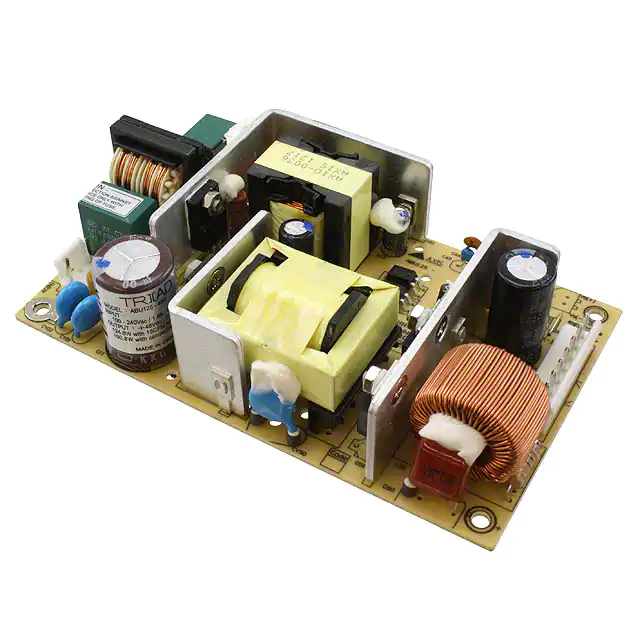

ABU125-480AC/DC CONVERTER 48V 100W Triad Magnetics |
0 |
|
规格书 |
ABU125 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.09 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
|
ABU125-150AC/DC CONVERTER 15V 100W Triad Magnetics |
0 |
|
规格书 |
ABU125 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
|

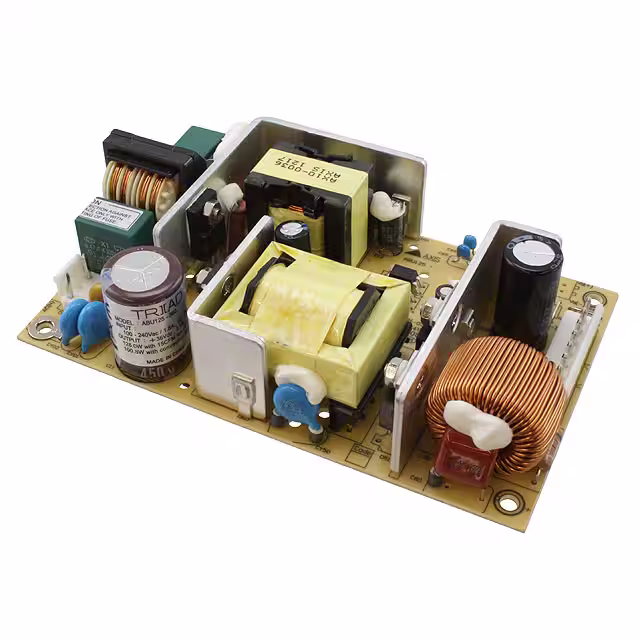

ABU125-360AC/DC CONVERTER 36V 100W Triad Magnetics |
0 |
|
规格书 |
ABU125 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 2.78 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
|
ABU125-540AC/DC CONVERTER 54V 87W Triad Magnetics |
0 |
|
规格书 |
ABU125 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 54V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 87W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) |
|
|
ABU125-560AC/DC CONVERTER 56V 90W Triad Magnetics |
0 |
|
规格书 |
ABU125 | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 56V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 90W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
