交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS75-12AC/DC CONVERTER 12V 75W Triad Magnetics |
1,226 |
|
规格书 |
ALS75 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC | 12V | - | - | - | - | - | 6.2 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.65" H (127.0mm x 76.2mm x 42.0mm) |
|
|
ALS75-24AC/DC CONVERTER 24V 75W Triad Magnetics |
511 |
|
规格书 |
ALS75 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC | 24V | - | - | - | - | - | 3.1 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.65" H (127.0mm x 76.2mm x 42.0mm) |
|
AWSP150-24AC/DC CONVERTER 24V 150W Triad Magnetics |
99 |
|
规格书 |
AWSP150 | Box | Active | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.97" H (199.0mm x 98.0mm x 50.0mm) |
|
|
AWSP150-12AC/DC CONVERTER 12V 150W Triad Magnetics |
57 |
|
规格书 |
AWSP150 | Box | Active | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.97" H (199.0mm x 98.0mm x 50.0mm) |
|
ALS50-24AC/DC CONVERTER 24V 50W Triad Magnetics |
230 |
|
规格书 |
ALS50 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|
AWSP40-12AC/DC CONVERTER 12V 40W Triad Magnetics |
128 |
|
规格书 |
AWSP40 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|

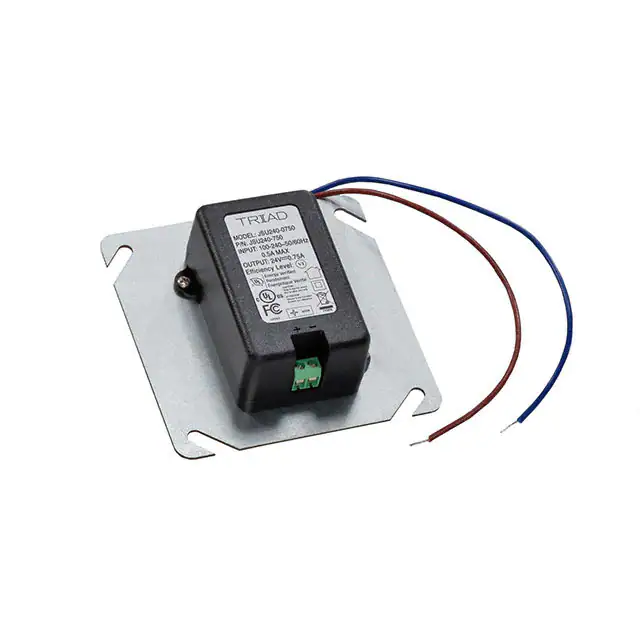

JSU240-0750AC/DC CONVERTER 24V 18W Triad Magnetics |
21 |
|
规格书 |
JSU240 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 750 mA | - | - | - | - | - | 18W | ITE (Commercial) | 3 kV | 0°C ~ 40°C | Universal Input | Rack Mount | 2.95" L x 1.89" W x 1.22" H (74.9mm x 48.0mm x 31.0mm) |
|
|
JSU120-1500AC/DC CONVERTER 12V 18W Triad Magnetics |
35 |
|
规格书 |
JSU120 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 18W | ITE (Commercial) | 3 kV | 0°C ~ 40°C | Universal Input | Rack Mount | 2.95" L x 1.89" W x 1.22" H (74.9mm x 48.0mm x 31.0mm) |
|

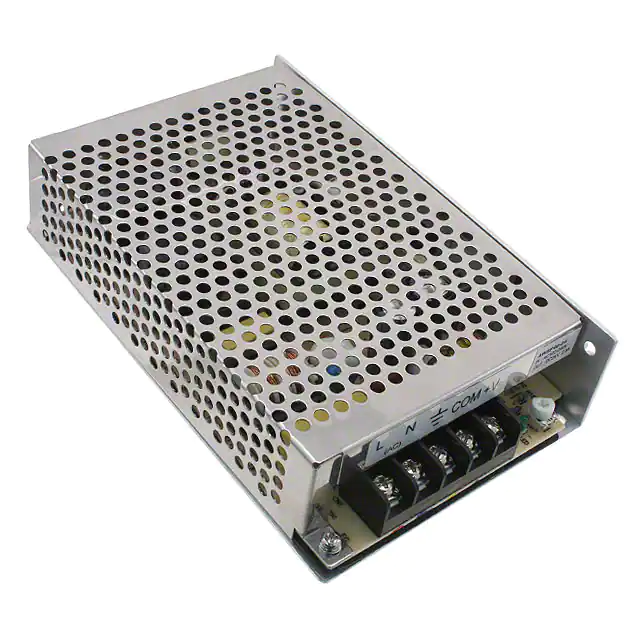

AWSP60-12AC/DC CONVERTER 12V 60W Triad Magnetics |
30 |
|
规格书 |
AWSP60 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.86" W x 1.50" H (160.0mm x 98.0mm x 38.0mm) |
|

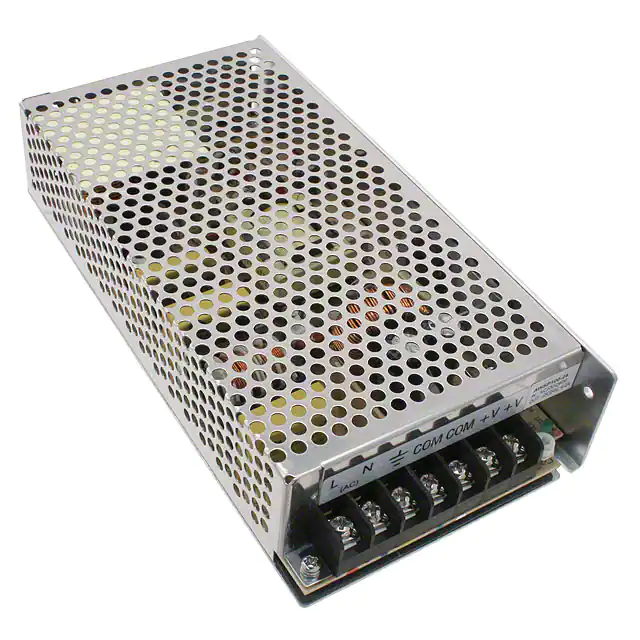

AWSP100-24AC/DC CONVERTER 24V 100W Triad Magnetics |
27 |
|
规格书 |
AWSP100 | Box | Active | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.65" H (199.0mm x 98.0mm x 42.0mm) |
