交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LRS-600N2-12O/P +12V50A MEAN WELL USA Inc. |
12 |
|
规格书 |
LRS-600N2 (600W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 600W | ITE (Commercial) | 3.75 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.88" W x 1.61" H (215.0mm x 124.0mm x 41.0mm) |
|
|
LRS-600N2-48O/P +48V12.5A MEAN WELL USA Inc. |
8 |
|
规格书 |
LRS-600N2 (600W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 600W | ITE (Commercial) | 3.75 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.88" W x 1.61" H (215.0mm x 124.0mm x 41.0mm) |
|

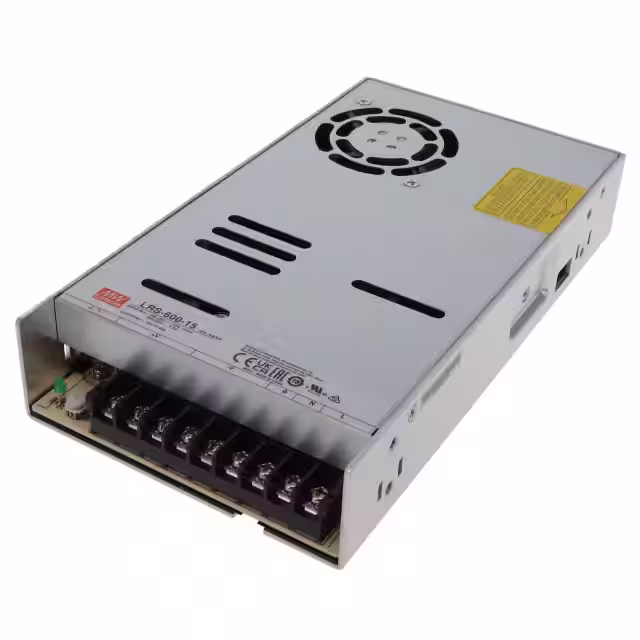

LRS-600-15AC/DC CONVERTER 15V 600W MEAN WELL USA Inc. |
14 |
|
规格书 |
- | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 15V | - | - | - | - | - | - | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 8.86" L x 4.88" W x 1.61" H (225.0mm x 124.0mm x 41.0mm) |
|
SPV-150-24AC/DC CONVERTER 24V 150W MEAN WELL USA Inc. |
11 |
|
规格书 |
SPV-150 (150W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 124 ~ 370 VDC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) |
|
PID-250AAC/DC CONVERTER 12V 5V 205W MEAN WELL USA Inc. |
2 |
|
规格书 |
PID-250 (250W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | 5V | - | - | - | - | 15 A | 5 A | - | - | - | - | 205W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.74" L x 3.74" W x 1.57" H (222.0mm x 95.0mm x 40.0mm) |
|
|
LOP-400-4880-264VAC O/P +48V8.4A MEAN WELL USA Inc. |
1 |
|
- |
LOP-400 (400W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 48V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 254W (400W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.08" H (127.0mm x 76.2mm x 27.5mm) |
|
|
LRS-600-5AC/DC CONVERTER 5V 500W MEAN WELL USA Inc. |
20 |
|
规格书 |
- | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 5V | - | - | - | - | - | - | - | - | - | - | - | 500W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 8.86" L x 4.88" W x 1.61" H (225.0mm x 124.0mm x 41.0mm) |
|
|
LRS-600N2-36O/P +36V16.6A MEAN WELL USA Inc. |
24 |
|
规格书 |
LRS-600N2 (600W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 36V | - | - | - | - | - | 16.6 A | - | - | - | - | - | 598W | ITE (Commercial) | 3.75 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.88" W x 1.61" H (215.0mm x 124.0mm x 41.0mm) |
|
HSP-300-4.2AC/DC CONVERTER 4.2V 252W MEAN WELL USA Inc. |
10 |
|
规格书 |
HSP-300 (300W) | Box | Active | Enclosed, Conformal Coated | 1 | 90 ~ 135 VAC, 180 ~ 264 VAC | 4.2V | - | - | - | - | - | 60 A | - | - | - | - | - | 252W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.27" L x 3.19" W x 1.22" H (210.0mm x 81.0mm x 31.0mm) |
|
UHP-350R-48AC/DC CONVERTER 48V 350W MEAN WELL USA Inc. |
13 |
|
规格书 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) |
