交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LOP-300-1880-264VAC O/P +18V10A MEAN WELL USA Inc. |
30 |
|
规格书 |
LOP-300 (300W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 18V | - | - | - | - | - | 10 A | - | - | - | - | - | 180W (300W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
|
LOP-300-3080-264VAC O/P +30V10A MEAN WELL USA Inc. |
15 |
|
规格书 |
LOP-300 (300W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 30V | - | - | - | - | - | 6 A | - | - | - | - | - | 180W (300W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
|
LRS-450-48AC/DC CONVERTER 48V 451W MEAN WELL USA Inc. |
9 |
|
规格书 |
LRS-450 (450W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 48V | - | - | - | - | - | - | - | - | - | - | - | 451W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 10.04" L x 4.88" W x 1.38" H (255.0mm x 124.0mm x 35.0mm) |
|
HRP-150-48AC/DC CONVERTER 48V 158W MEAN WELL USA Inc. |
23 |
|
规格书 |
HRP-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) |
|
|
LRS-450-36AC/DC CONVERTER 36V 450W MEAN WELL USA Inc. |
22 |
|
规格书 |
LRS-450 (450W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 36V | - | - | - | - | - | - | - | - | - | - | - | 450W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 10.04" L x 4.88" W x 1.38" H (255.0mm x 124.0mm x 35.0mm) |
|
NEL-400-5AC/DC CONVERTER 5V 400W MEAN WELL USA Inc. |
11 |
|
规格书 |
NEL-400 (400W) | Box | Active | Enclosed, Conformal Coated | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 5V | - | - | - | - | - | 80 A | - | - | - | - | - | 400W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
LSP-160-24TAC/DC CONVERTER 24V 162W MEAN WELL USA Inc. |
23 |
|
规格书 |
LSP-160 (160W) | Box | Active | Enclosed | 1 | 100 ~ 264 VAC, 141 ~ 370 VDC | 24V | - | - | - | - | - | 6.75 A | - | - | - | - | - | 162W | ITE (Commercial) | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 0.79" H (194.0mm x 55.0mm x 20.0mm) |
|
|

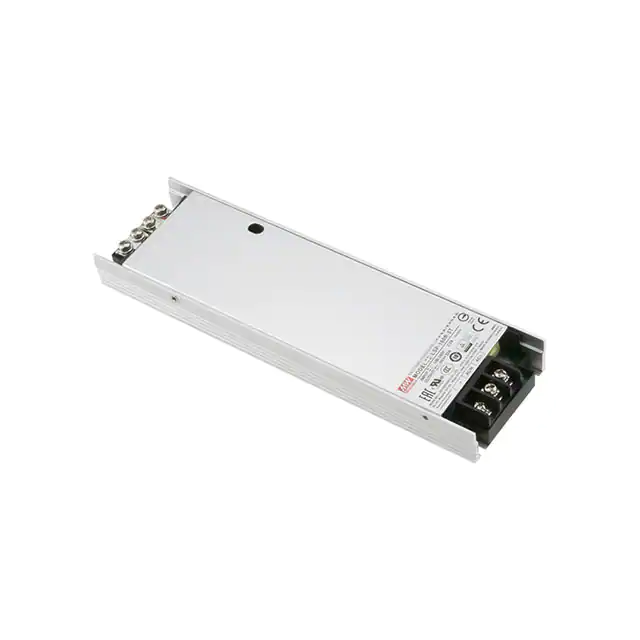

LSP-160-5TAC/DC CONVERTER 5V 160W MEAN WELL USA Inc. |
16 |
|
规格书 |
LSP-160 (160W) | Box | Active | Enclosed | 1 | 100 ~ 264 VAC, 141 ~ 370 VDC | 5V | - | - | - | - | - | 32 A | - | - | - | - | - | 160W | ITE (Commercial) | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 0.79" H (194.0mm x 55.0mm x 20.0mm) |
|
UHP-200-4.2AC/DC CONVERTER 4.2V 168W MEAN WELL USA Inc. |
6 |
|
规格书 |
UHP-200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 4.2V | - | - | - | - | - | 40 A | - | - | - | - | - | 168W | Household Appliances, ITE (Commercial) | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
|
|
LRS-600-36AC/DC CONVERTER 36V 598W MEAN WELL USA Inc. |
15 |
|
规格书 |
- | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 36V | - | - | - | - | - | - | - | - | - | - | - | 598W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 8.86" L x 4.88" W x 1.61" H (225.0mm x 124.0mm x 41.0mm) |
