| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

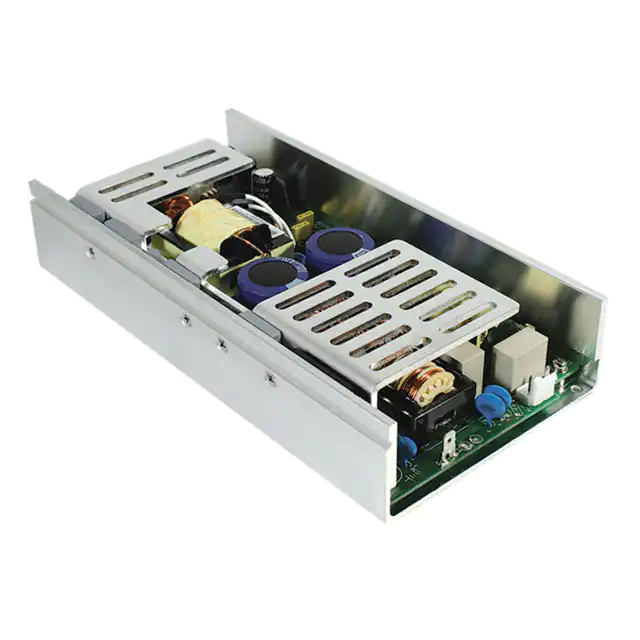

USP-225-3.3AC/DC CONVERTER 3.3V 132W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 40 A | - | - | - | - | - | 132W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|
|
USP-225-48AC/DC CONVERTER 48V 226W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 226W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|
|
USP-225-5AC/DC CONVERTER 5V 200W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|

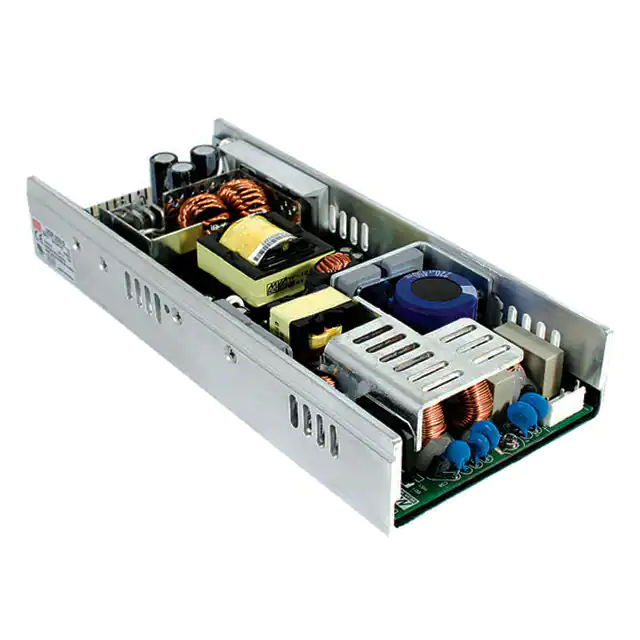

USP-350-12AC/DC CONVERTER 12V 300W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-15AC/DC CONVERTER 15V 300W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 20 A | - | - | - | - | - | 300W (351W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-24AC/DC CONVERTER 24V 300W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-3.3AC/DC CONVERTER 3.3V 165W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 50 A | - | - | - | - | - | 165W (231W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-48AC/DC CONVERTER 48V 300W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-5AC/DC CONVERTER 5V 250W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 50 A | - | - | - | - | - | 250W (350W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
USP-500-12AC/DC CONVERTER 12V 396W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-500 (500W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 33 A | - | - | - | - | - | 396W (504W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm) |
