交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

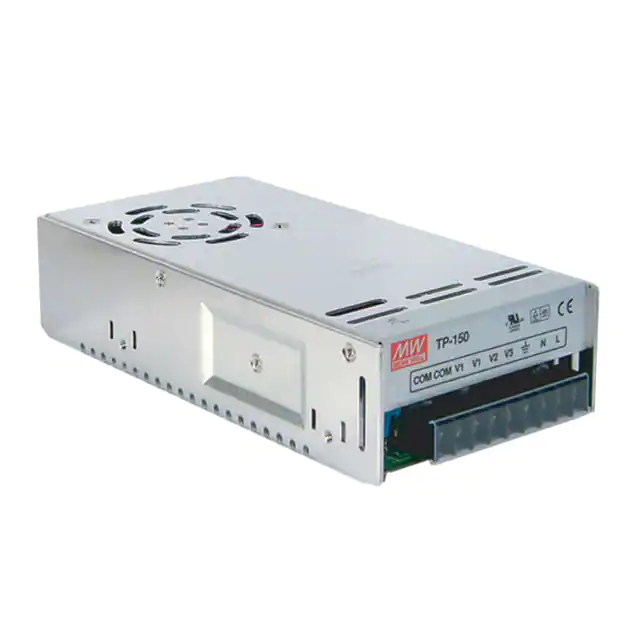

TP-150DAC/DC CONVERTER 5V 24V 12V 154W MEAN WELL USA Inc. |
0 |
|
规格书 |
TP-150 (150W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 24V | 12V | - | - | - | 15 A | 3 A | 600 mA | - | - | - | 154W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
|

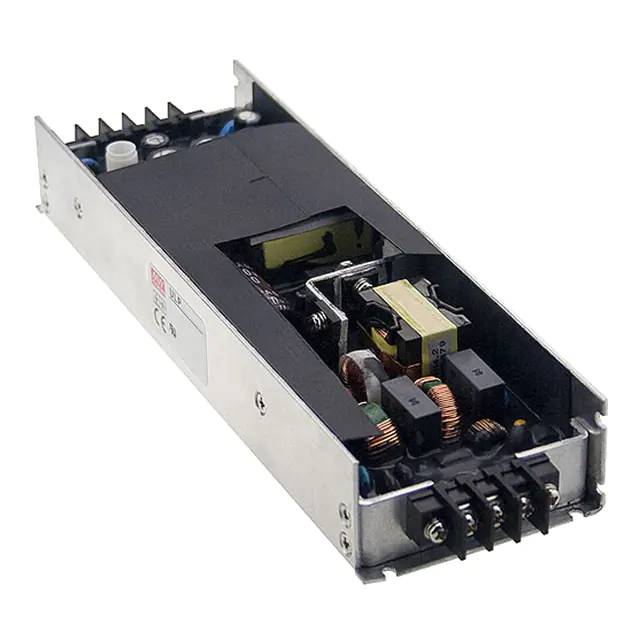

ULP-150-24AC/DC CONVERTER 24V 151W MEAN WELL USA Inc. |
0 |
|
规格书 |
ULP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | LED Lighting | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) |
|
|
ULP-150-36AC/DC CONVERTER 36V 151W MEAN WELL USA Inc. |
0 |
|
规格书 |
ULP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 151W | LED Lighting | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) |
|
USP-150-12AC/DC CONVERTER 12V 150W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) |
|
|
USP-150-15AC/DC CONVERTER 15V 150W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) |
|
|
USP-150-24AC/DC CONVERTER 24V 151W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) |
|
|
USP-150-36AC/DC CONVERTER 36V 151W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) |
|
USP-225-12AC/DC CONVERTER 12V 224W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 18.7 A | - | - | - | - | - | 224W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|
|
USP-225-15AC/DC CONVERTER 15V 225W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 225W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|
|
USP-225-24AC/DC CONVERTER 24V 226W MEAN WELL USA Inc. |
0 |
|
规格书 |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 226W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
