交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP-120-27AC/DC CONVERTER 27V 108W MEAN WELL USA Inc. |
0 |
|
规格书 |
ESP-120 (120W) | Box | Obsolete | Enclosed | 1 | 88 ~ 132 VAC, 176 ~ 264 VAC, 249 ~ 370 VDC | 27V | - | - | - | - | - | 4 A | - | - | - | - | - | 108W | ITE (Commercial), Laboratory | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output | Chassis Mount | 5.91" L x 5.51" W x 2.95" H (150.0mm x 140.0mm x 75.0mm) |
|
|
ESP-120-54AC/DC CONVERTER 54V 108W MEAN WELL USA Inc. |
0 |
|
规格书 |
ESP-120 (120W) | Box | Obsolete | Enclosed | 1 | 88 ~ 132 VAC, 176 ~ 264 VAC, 249 ~ 370 VDC | 54V | - | - | - | - | - | 2 A | - | - | - | - | - | 108W | ITE (Commercial), Laboratory | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output | Chassis Mount | 5.91" L x 5.51" W x 2.95" H (150.0mm x 140.0mm x 75.0mm) |
|

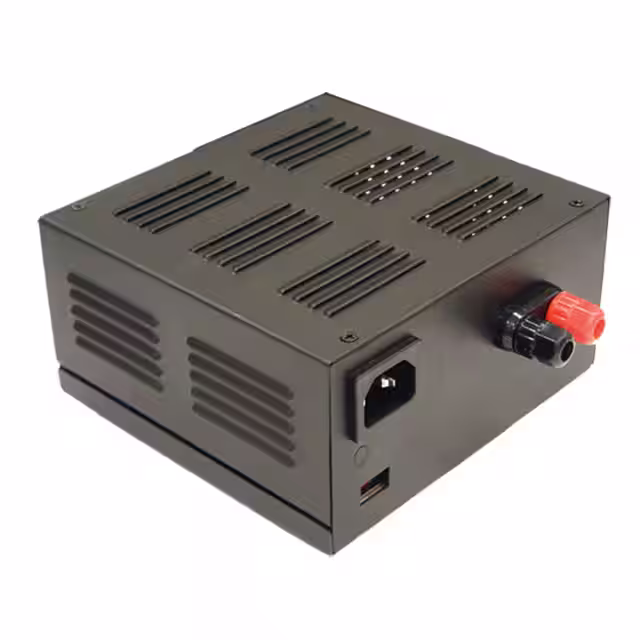

ESC-120-13.5AC/DC CONVERTER 13.5V 108W MEAN WELL USA Inc. |
0 |
|
规格书 |
ESC-120 (120W) | Box | Obsolete | Enclosed | 1 | 88 ~ 132 VAC, 176 ~ 264 VAC, 249 ~ 370 VDC | 13.5V | - | - | - | - | - | 8 A | - | - | - | - | - | 108W | ITE (Commercial), Laboratory | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Benchtop | 5.91" L x 5.51" W x 2.95" H (150.0mm x 140.0mm x 75.0mm) |
|
|
ESC-120-27AC/DC CONVERTER 27V 108W MEAN WELL USA Inc. |
0 |
|
规格书 |
ESC-120 (120W) | Box | Obsolete | Enclosed | 1 | 88 ~ 132 VAC, 176 ~ 264 VAC, 249 ~ 370 VDC | 27V | - | - | - | - | - | 4 A | - | - | - | - | - | 108W | ITE (Commercial), Laboratory | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Benchtop | 5.91" L x 5.51" W x 2.95" H (150.0mm x 140.0mm x 75.0mm) |
|
TP-7503AC/DC CONVERTER 5V 3.3V 12V 75W MEAN WELL USA Inc. |
0 |
|
规格书 |
TP-75 (75W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 3.3V | 12V | - | - | - | 9 A | 8 A | 300 mA | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.30" H (179.0mm x 99.0mm x 33.0mm) |
|
|
TP-75AAC/DC CONVERTER 5V 12V -5V 74W MEAN WELL USA Inc. |
0 |
|
规格书 |
TP-75 (75W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | -5V | - | - | - | 7 A | 3 A | 600 mA | - | - | - | 74W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.30" H (179.0mm x 99.0mm x 33.0mm) |
|
|
TP-75BAC/DC CONVERTER 5V +/-12V 76W MEAN WELL USA Inc. |
0 |
|
规格书 |
TP-75 (75W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | -12V | - | - | - | 7 A | 3 A | 400 mA | - | - | - | 76W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.30" H (179.0mm x 99.0mm x 33.0mm) |
|
|
TP-75CAC/DC CONVERTER 5V +/-15V 75W MEAN WELL USA Inc. |
0 |
|
规格书 |
TP-75 (75W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 15V | -15V | - | - | - | 6 A | 2.5 A | 500 mA | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.30" H (179.0mm x 99.0mm x 33.0mm) |
|
|
TP-75DAC/DC CONVERTER 5V 24V 12V 76W MEAN WELL USA Inc. |
0 |
|
规格书 |
TP-75 (75W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 24V | 12V | - | - | - | 7 A | 1.5 A | 400 mA | - | - | - | 76W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.30" H (179.0mm x 99.0mm x 33.0mm) |
|
HRP-150N-24AC/DC CONVERTER 24V 156W MEAN WELL USA Inc. |
0 |
|
规格书 |
HRP-150N (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) |
