上传BOM
交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSP-160-3.3TAC/DC CONVERTER 3.3V 106W MEAN WELL USA Inc. |
0 |
|
规格书 |
LSP-160 (160W) | Box | Active | Enclosed | 1 | 100 ~ 264 VAC, 141 ~ 370 VDC | 3.3V | - | - | - | - | - | 32 A | - | - | - | - | - | 106W | ITE (Commercial) | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 0.79" H (194.0mm x 55.0mm x 20.0mm) |
|

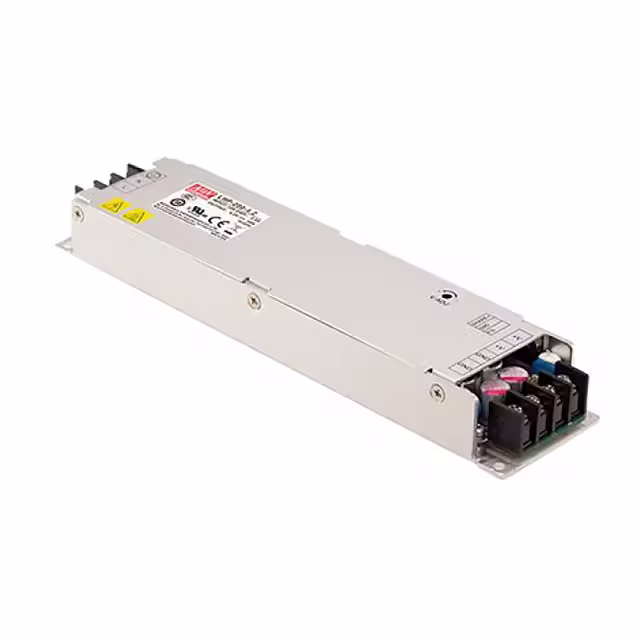

LHP-200-4.2AC/DC CONVERTER 4.2V 168W MEAN WELL USA Inc. |
0 |
|
规格书 |
LHP-200 (200W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 4.2V | - | - | - | - | - | 40 A | - | - | - | - | - | 168W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | Chassis Mount | 8.66" L x 1.97" W x 1.02" H (220.0mm x 50.0mm x 26.0mm) |
|
|
LHP-200-4.6AC/DC CONVERTER 4.6V 184W MEAN WELL USA Inc. |
0 |
|
规格书 |
LHP-200 (200W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 4.6V | - | - | - | - | - | 40 A | - | - | - | - | - | 184W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | Chassis Mount | 8.66" L x 1.97" W x 1.02" H (220.0mm x 50.0mm x 26.0mm) |
|
|
LHP-200-5AC/DC CONVERTER 5V 200W MEAN WELL USA Inc. |
0 |
|
规格书 |
LHP-200 (200W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | Chassis Mount | 8.66" L x 1.97" W x 1.02" H (220.0mm x 50.0mm x 26.0mm) |
|
HSN-300-5BAC/DC CONVERTER 5V 300W MEAN WELL USA Inc. |
0 |
|
规格书 |
HSN-300 (300W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 5V | - | - | - | - | - | 60 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.27" L x 3.19" W x 1.22" H (210.0mm x 81.0mm x 31.0mm) |
|
SE-350-12AC/DC CONVERTER 12V 348W MEAN WELL USA Inc. |
0 |
|
- |
SE-350 (350W) | Box | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 12V | - | - | - | - | - | 29 A | - | - | - | - | - | 348W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) |
|
|
SE-350-15AC/DC CONVERTER 15V 348W MEAN WELL USA Inc. |
0 |
|
- |
SE-350 (350W) | Box | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 15V | - | - | - | - | - | 23.2 A | - | - | - | - | - | 348W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) |
|
|
SE-350-24AC/DC CONVERTER 24V 350W MEAN WELL USA Inc. |
0 |
|
- |
SE-350 (350W) | Box | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output | Chassis Mount | 8.07" L x 4.53" W x 1.97" H (205.0mm x 115.0mm x 50.0mm) |
|
|
SE-350-27AC/DC CONVERTER 24V 312W MEAN WELL USA Inc. |
0 |
|
- |
SE-350 (350W) | Box | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 24V | - | - | - | - | - | 13 A | - | - | - | - | - | 312W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) |
|
|
SE-350-3.3AC/DC CONVERTER 3.3V 198W MEAN WELL USA Inc. |
0 |
|
- |
SE-350 (350W) | Box | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 3.3V | - | - | - | - | - | 60 A | - | - | - | - | - | 198W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) |
