| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线规 | 导体直径 | 长度 | 护套（绝缘）材料 | 护套（绝缘）直径 | 导体材料 | 导体镀层 | 护套颜色 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

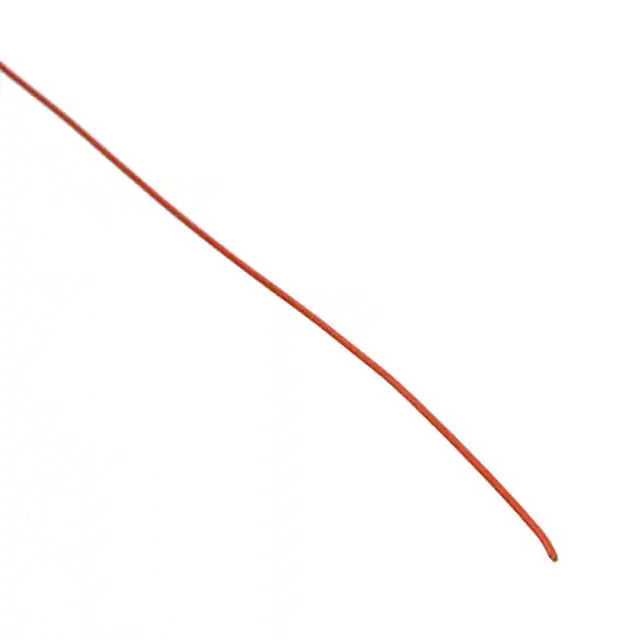

W28-6BUWIRE WW 28AWG ETFE RED 150' |
4 |
|
规格书 |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | 150' (45.72m) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | Silver | Red | UL Style 1516/1523 | - |
|

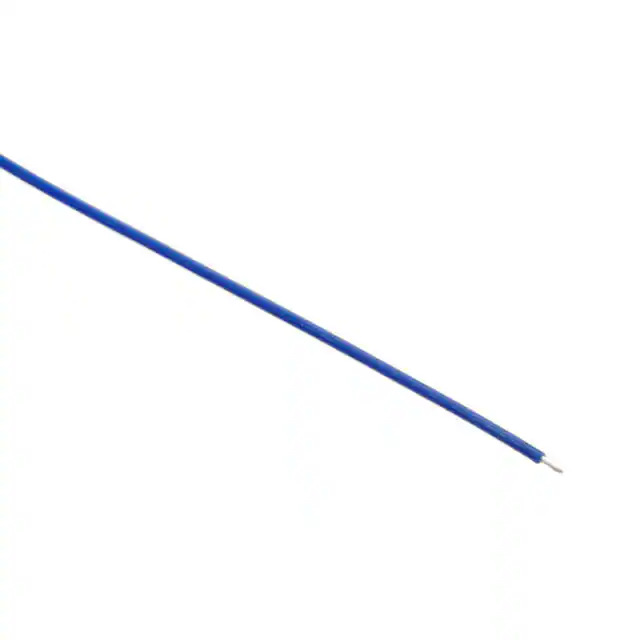

W28-6DUWIRE WW 28AWG ETFE BLUE 150' |
4 |
|
规格书 |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | 150' (45.72m) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | Silver | Blue | - | - |
|
R30Y-1000WIRE WW 30AWG PVDF YELLOW 1000' |
11 |
|
规格书 |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | - |
|
30-W-50-010WIRE WW 30AWG PVDF WHITE 3" 50PC |
6 |
|
规格书 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.250' (76.20mm, 3.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
|

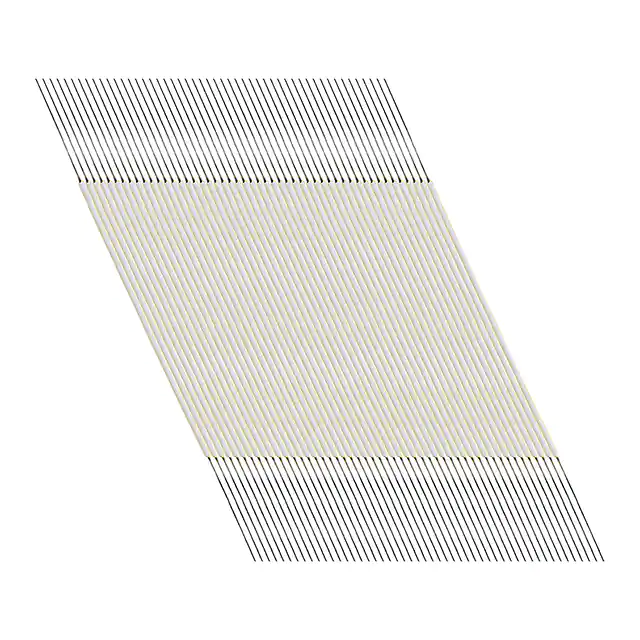

30-W-50-050WIRE WW 30AWG PVDF WHITE 7" 50PC |
8 |
|
规格书 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.583' (177.70mm, 7.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
|

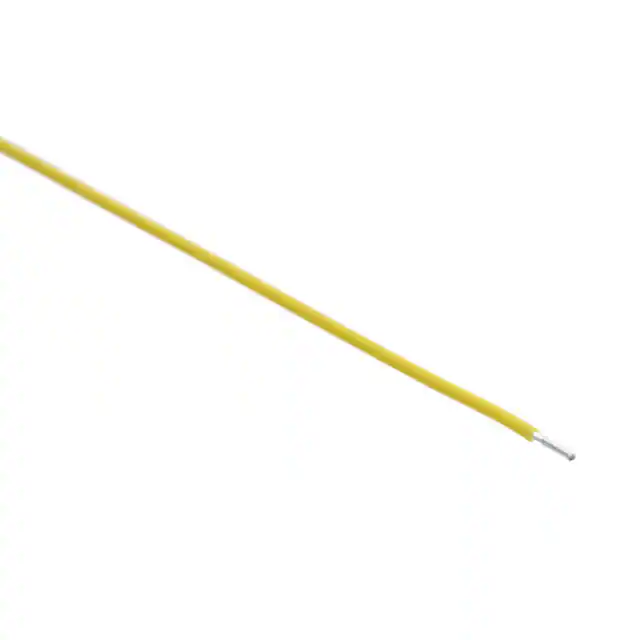

R26Y-0100WIRE WW 26AWG PVDF YELLOW |
0 |
|
规格书 |
- | Roll | Active | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | Yellow | UL Style 1422 | - |
|

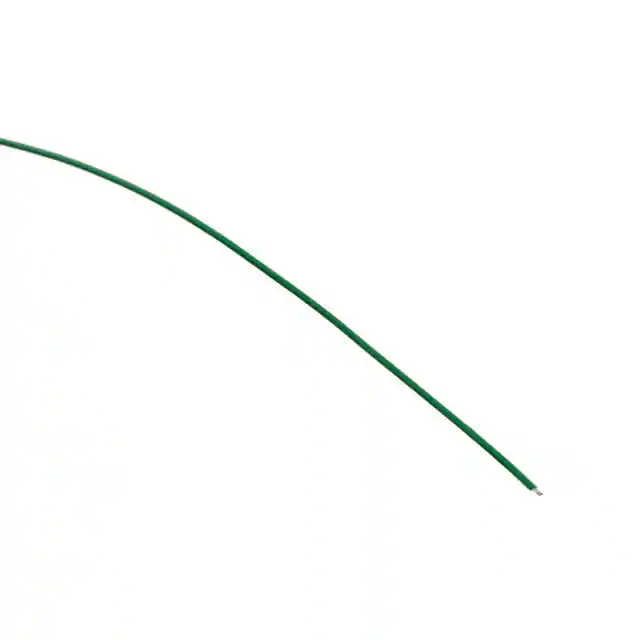

W28-6AUWIRE WW 28AWG ETFE GREEN 150' |
0 |
|
规格书 |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | 150' (45.72m) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | Silver | Green | UL Style 1516/1523 | - |
|
30-R-50-030WIRE WW 30AWG PVDF RED 5" 50PC |
0 |
|
规格书 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.417' (127.00mm, 5.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | - |
|
|
W28-6AWIRE WW 28AWG ETFE GRN 50' 2/PK |
5 |
|
规格书 |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | 50' (15.24m) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | Silver | Green | UL Style 1516/1523 | - |
|
W28-6HUWIRE WW 28AWG ETFE BLACK 150' |
1 |
|
规格书 |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | 150' (45.72m) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | Silver | Black | - | - |
|
|
30-R-50-010WIRE WW 30AWG PVDF RED 3" 50PC |
1 |
|
规格书 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.250' (76.20mm, 3.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | - |
|
30-Y-50-010WIRE WW 30AWG PVDF YELLW 3" 50PC |
1 |
|
规格书 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.250' (76.20mm, 3.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | - |
|
|
30-Y-50-050WIRE WW 30AWG PVDF YELLW 7" 50PC |
0 |
|
规格书 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.583' (177.70mm, 7.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | - |
|
|
30-Y-50-030WIRE WW 30AWG PVDF YELLW 5" 50PC |
0 |
|
规格书 |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.417' (127.00mm, 5.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | - |
|

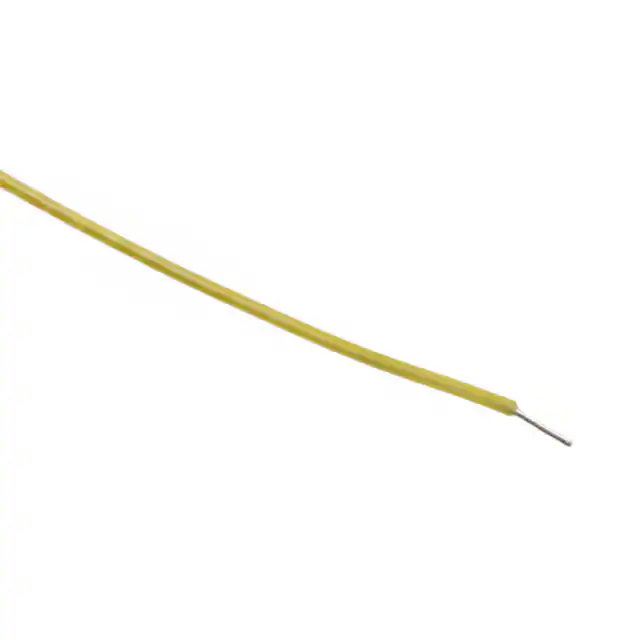

W28-6FUWIRE WW 28AWG ETFE YELLOW 150' |
1 |
|
规格书 |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | 150' (45.72m) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | Silver | Yellow | UL Style 1516/1523 | - |
|
KSW30B-1000WIRE WW 30AWG PVDF BLUE 1000' |
1 |
|
规格书 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423 | - |
|

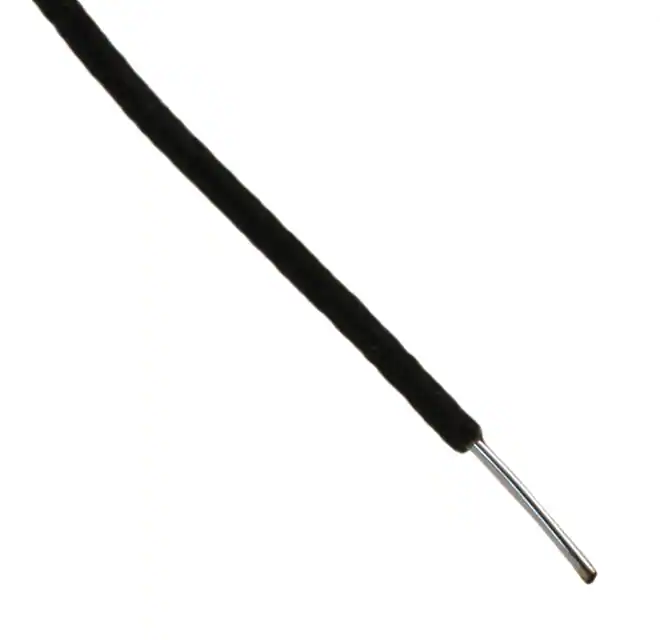

KSW30BLK-1000WIRE WW 30AWG PVDF BLACK 1000' |
0 |
|
规格书 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Black | UL Style 1423 | - |
|
KSW30W-1000WIRE WW 30AWG PVDF WHITE 1000' |
0 |
|
规格书 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423 | - |
|

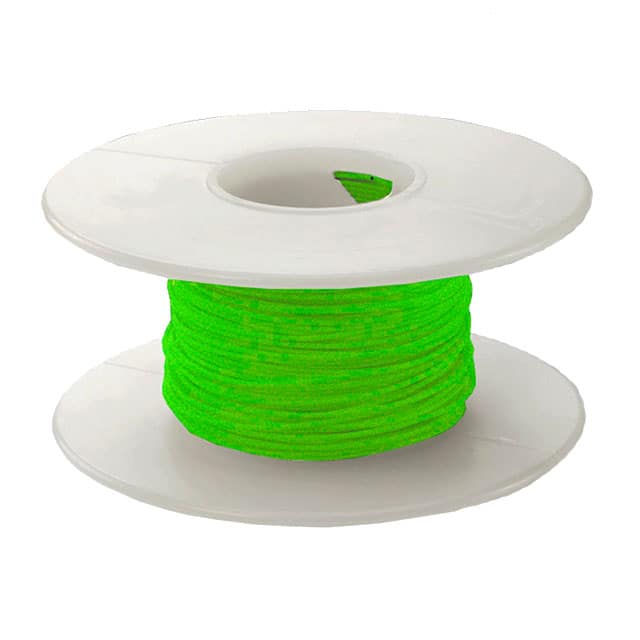

KSW30G-1000WIRE 30AWG GREEN 1000 FT CSW |
0 |
|
规格书 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Green | UL Style 1423 | - |
|
|
KSW30BLK-0100WIRE WW 30AWG PVDF BLACK 100' |
0 |
|
规格书 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Black | UL Style 1423 | - |
