微调器、可变电容器

制造商	系列	包装	产品状态	电容范围	调整类型	额定电压	介电材料	品质因数 (Q) @ 频率	尺寸 / 尺寸	高度 - 安装后（最大值）	工作温度	安装类型	特性
EW Electronics Knowles Johanson Manufacturing Knowles Voltronics KYOCERA AVX Murata Electronics Passive Plus Vishay Beyschlag/Draloric/BC Components	* - 2807S 512 518 538 9350 A A1 A1_HV A2 A3 A4 A4_HV AIRTRIM® GAA A_HV BFC2 808 BFC2 809 Cera-Trim® CTZ, Kyocera E E_HV FILMTRIM® Giga-Trim® GKH H JR JZ JZ_HV K KE KE_HV K_HV LXRW NMA NMNT NMP NT P PISTONCAP® QM Sapphire Trimmers Seal-Trim® SGC3S SGNM-Series 1 SGNM-Series 2 SGNM-Series 3 SURFTRIM® GKG Thin-Trim® TM TP TZ03 TZB4 TZC3 TZR1 TZS2 TZV2 TZW4 TZY2	Bag Box Bulk Cut Tape (CT) Tape & Reel (TR) Tray	Active Discontinued at Digi-Key Obsolete	- 0.2 ~ 1pF 0.25 ~ 0.7pF 0.3 ~ 1.2pF 0.3 ~ 2.3pF 0.3 ~ 2pF 0.3 ~ 3pF 0.3 ~ 5pF 0.35 ~ 1.5pF 0.35 ~ 3.5pF 0.4 ~ 1.5pF 0.4 ~ 10pF 0.4 ~ 2.5pF 0.4 ~ 3.5pF 0.45 ~ 3 pF 0.45 ~ 3pF 0.45 ~ 4pF 0.5 ~ 1.3pF 0.5 ~ 15pF 0.5 ~ 1pF 0.5 ~ 2.5pF 0.5 ~ 3.5pF 0.5 ~ 4pF 0.5 ~ 5pF 0.5 ~ 8pF 0.55 ~ 1pF 0.6 ~ 1.8pF 0.6 ~ 10pF 0.6 ~ 11pF 0.6 ~ 12pF 0.6 ~ 14pF 0.6 ~ 15pF 0.6 ~ 1pF 0.6 ~ 2.5pF 0.6 ~ 2pF 0.6 ~ 3.5pF 0.6 ~ 4.5pF 0.6 ~ 4pF 0.6 ~ 5.5pF 0.6 ~ 5pF 0.6 ~ 6pF 0.6 ~ 7pF 0.6 ~ 8pF 0.6 ~ 9.5pF 0.6 ~ 9pF 0.65 ~ 2.5pF 0.7 ~ 1.5pF 0.7 ~ 20pF 0.7 ~ 9pF 0.8 ~ 10pF 0.8 ~ 12pF 0.8 ~ 13pF 0.8 ~ 14pF 0.8 ~ 16pF 0.8 ~ 18pF 0.8 ~ 20pF 0.8 ~ 21pF 0.8 ~ 23pF 0.8 ~ 25pF 0.8 ~ 30pF 0.8 ~ 38pF 0.8 ~ 4.5pF 0.8 ~ 5.5pF 0.8 ~ 5pF 0.8 ~ 7pF 0.8 ~ 8.5pF 0.8 ~ 8pF 1 ~ 10pF 1 ~ 11pF 1 ~ 120pF 1 ~ 12pF 1 ~ 14pF 1 ~ 15pF 1 ~ 16pF 1 ~ 2.5pF 1 ~ 20pF 1 ~ 22pF 1 ~ 23pF 1 ~ 24pF 1 ~ 25pF 1 ~ 28pF 1 ~ 3.5pF 1 ~ 30pF 1 ~ 36pF 1 ~ 3pF 1 ~ 4.5pF 1 ~ 42pF 1 ~ 4pF 1 ~ 52pF 1 ~ 55pF 1 ~ 5pF 1 ~ 60pF 1 ~ 6pF 1 ~ 75pF 1 ~ 90pF 1 ~ 9pF 1.2 ~ 3.5pF 1.2 ~ 4pF 1.2 ~ 5pF 1.25 ~ 2.3pF 1.4 ~ 3pF 1.4 ~ 5.5pF 1.5 ~ 10pF 1.5 ~ 14pF 1.5 ~ 15pF 1.5 ~ 19pF 1.5 ~ 20pF 1.5 ~ 30pF 1.5 ~ 3pF 1.5 ~ 4.5pF 1.5 ~ 40pF 1.5 ~ 48pF 1.5 ~ 4pF 1.5 ~ 55pF 1.5 ~ 5pF 1.6 ~ 5pF 1.8 ~ 10pF 1.8 ~ 4.5pF 1.8 ~ 9pF 10 ~ 100pF 10 ~ 120pF 10 ~ 150pF 10 ~ 50pF 10.5 ~ 50pF 100 ~ 200pF 12 ~ 180pf 12 ~ 60pF 15 ~ 60pF 16.5 ~ 33pF 18 ~ 300pF 18 ~ 300pF 2 ~ 10pF 2 ~ 120pF 2 ~ 12pF 2 ~ 130pF 2 ~ 13pF 2 ~ 15pF 2 ~ 18pF 2 ~ 19pF 2 ~ 210pF 2 ~ 250pF 2 ~ 25pF 2 ~ 30pF 2 ~ 34pF 2 ~ 46pF 2 ~ 5pF 2 ~ 64pF 2 ~ 6pF 2 ~ 7pF 2 ~ 95pF 2 ~ 96pF 2 ~ 9pF 2.3 ~ 18pF 2.5 ~ 10pF 2.5 ~ 11pF 2.5 ~ 15pF 2.5 ~ 20pF 2.5 ~ 22pF 2.5 ~ 6pF 2.5 ~ 70pF 2.5 ~ 9pF 2.6 ~ 18pF 2.7 ~ 10pF 2.7 ~ 20pF 25 ~ 600pF 3 ~ 10pF 3 ~ 11pF 3 ~ 12pF 3 ~ 15pF 3 ~ 18pF 3 ~ 20pF 3 ~ 22.5pF 3 ~ 23pF 3 ~ 33pF 3 ~ 40pF 3 ~ 55pF 3 ~ 60pF 3 ~ 6pF 3 ~ 75pF 3 ~ 8pF 3.5 ~ 10pF 3.5 ~ 20pF 3.5 ~ 27pF 30 ~ 60pF 4 ~ 18pF 4 ~ 20pF 4 ~ 25pF 4 ~ 27pF 4 ~ 30pF 4 ~ 38pF 4 ~ 40pF 4.2 ~ 20pF 4.5 ~ 20pF 4.5 ~ 30pF 4.5 ~ 40pF 4.5 ~ 50pF 45 ~ 90pF 5 ~ 15pF 5 ~ 18pF 5 ~ 20pF 5 ~ 25pF 5 ~ 57pF 5 ~ 60pF 5 ~ 85pF 5.2 ~ 30pF 5.5 ~ 18pF 5.5 ~ 20pF 5.5 ~ 25pF 5.5 ~ 30pF 5.5 ~ 40pF 5.5 ~ 50pF 5.5 ~ 65pF 5.8 ~ 20pF 6 ~ 25pF 6 ~ 35pF 6 ~ 50pF 6 ~ 80pF 6.5 ~ 25pF 6.5 ~ 30pF 6.5 ~ 70pF 6.8 ~ 45pF 7 ~ 100pF 7 ~ 18pF 7 ~ 25pF 7 ~ 40pF 7 ~ 50pF 7.5 ~ 18pF 7.5 ~ 24pF 7.5 ~ 50pF 8 ~ 25pF 8 ~ 29pF 8 ~ 30pF 8 ~ 40pF 8 ~ 45pF 8 ~ 50pF 8 ~ 80pF 8 ~ 90pF 8.5 ~ 25pF 8.5 ~ 40pF 9 ~ 100pF 9 ~ 35pF 9 ~ 90pF 9.8 ~ 60pF	- Bottom Bottom Adjustment Side Top Top and Bottom	- 100 V 1000 V 125 V 1250 V 150 V 1500 V 200 V 2000 V 25 V 250 V 2500 V 3.5 kV 300 V 3000 V 350 V 4 kV 400 V 4000 V 4500 V 50 V 500 V 6.4 kV 600 V 6000 V 750 V 7500 V 8.75 kV 8750 V	- Air Alumina Ceramic Glass Polycarbonate (PC) Polyester, Polyethylene Terephthalate (PET) Polyethylene (PE) Polypropylene (PP) Polytetrafluoroethylene (PTFE) Quartz Sapphire Zirconia	- 100 @ 1MHz 1000 @ 100MHz 1000 @ 10MHz 1000 @ 175MHz 1000 @ 1MHz 1000 @ 200MHz 1000 @ 20MHz 1000 @ 250MHz 10000 @ 100MHz 1250 @ 250MHz 1400 @ 195MHz 150 @ 1MHz 1500 @ 100MHz 1500 @ 1MHz 1500 @ 20MHz 1500 @ 213MHz 1500 @ 250MHz 1500 @ 25MHz 1700 @ 25MHz 1800 @ 25MHz 200 @ 100MHz 200 @ 1MHz 200 @ 200MHz 200 @ 500MHz 2000 @ 100MHz 2000 @ 1MHz 2000 @ 237MHz 2000 @ 250MHz 2000 @ 25MHz 2200 @ 25MHz 250 @ 100MHz 250 @ 1MHz 250 @ 20MHz 300 @ 100MHz 300 @ 1MHz 3000 @ 100MHz 3000 @ 250MHz 3000 @ 25MHz 350 @ 1MHz 350 @ 20MHz 3500 @ 25MHz 4000 @ 100MHz 4000 @ 195MHz 4000 @ 250MHz 500 @ 100MHz 500 @ 1MHz 500 @ 20MHz 500 @ 25MHz 5000 @ 100MHz 5000 @ 250MHz 550 @ 20MHz 600 @ 100MHz 600 @ 1MHz 600 @ 25MHz 650 @ 1MHz 650 @ 25MHz 700 @ 100MHz 700 @ 1MHz 700 @ 20MHz 700 @ 25MHz 7000 @ 25MHz 750 @ 100MHz 750 @ 1MHz 7500 @ 100MHz 780 @ 100MHz 800 @ 100MHz 800 @ 175MHz 800 @ 1MHz 800 @ 20MHz 800 @ 25MHz 900 @ 1MHz 900 @ 20MHz 9000 @ 100MHz 9000 @ 25MHz	- 0.024" L x 0.024" W (0.60mm x 0.60mm) 0.051" L x 0.035" W (1.30mm x 0.90mm) 0.063" Dia (1.60mm) 0.067" L x 0.059" W (1.70mm x 1.50mm) 0.075" Dia (1.90mm) 0.091" Dia (2.30mm) 0.094" Dia (2.39mm) 0.106" L x 0.087" W (2.70mm x 2.20mm) 0.114" Dia (2.90mm) 0.118" Dia (3.00mm) 0.120" Dia (3.05mm) 0.125" Dia (3.18mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.091" W (3.20mm x 2.30mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.130" Dia (3.30mm) 0.138" L x 0.122" W (3.50mm x 3.10mm) 0.140" (3.56mm) Dia 0.140" Dia (3.56mm) 0.141" Dia (3.58mm) 0.145" Dia (3.68mm) 0.150" Dia (3.81mm) 0.154" Dia (3.91mm) 0.156" Dia (3.96mm) 0.160" Dia (4.06mm) 0.161" Dia (4.10mm) 0.176" L x 0.130" W (4.47mm x 3.30mm) 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.177" L x 0.157" W (4.50mm x 4.00mm) 0.180" Dia (4.57mm) 0.180" L x 0.167" W (4.57mm x 4.24mm) 0.185" (4.70mm) Dia 0.190" Dia (4.83mm) 0.197" Dia (5.00mm) 0.200" Dia (5.08mm) 0.205" L x 0.165" W (5.20mm x 4.20mm) 0.210" Dia (5.33mm) 0.217" L x 0.197" W (5.50mm x 5.00mm) 0.218" Dia (5.54mm) 0.220" Dia (5.59mm) 0.225" Dia (5.72mm) 0.230" Dia (5.84mm) 0.235" Dia (5.97mm) 0.236" Dia (6.00mm) 0.240" Dia (6.10mm) 0.250" Dia (6.35mm) 0.270" Dia (6.86mm) 0.275" Dia (6.99mm) 0.280" Dia (7.11mm) 0.283" L x 0.213" W (7.20mm x 5.40mm) 0.290" L x 0.190" W (7.37mm x 4.83mm) 0.291" L x 0.264" W (7.40mm x 6.70mm) 0.295" Dia (7.49mm) 0.299" Dia (7.60mm) 0.300" Dia (7.62mm) 0.303" Dia (7.62mm) 0.310" Dia (7.87mm) 0.311" Dia (7.90mm) 0.312" Dia (7.92mm) 0.335" Dia (8.50mm) 0.335" L x 0.295" W (8.50mm x 7.50mm) 0.340" Dia (8.64mm) 0.346" L x 0.315" W (8.80mm x 8.00mm) 0.360" Dia (9.14mm) 0.365" Dia (9.27mm) 0.370" Dia (9.40mm) 0.375" Dia (9.52mm) 0.375" Dia (9.53mm) 0.380" Dia (9.65mm) 0.390" Dia (9.91mm) 0.394" Dia (10.00mm) 0.402" L x 0.402" W (10.20mm x 10.20mm) 0.429" L x 0.413" W (10.90mm x 10.50mm) 0.433" Dia (11.00mm) 0.433" L x 0.374" W (11.00mm x 9.50mm) 0.490" L x 0.250" W (12.45mm x 6.35mm) 0.525" Dia (13.34mm) 0.540" Dia (13.72mm) 0.550" Dia (13.97mm) 0.551" L x 0.453" W (14.00mm x 11.50mm) 0.560" L x 0.440" W (14.22mm x 11.18mm) 0.580" Dia (14.73mm) 0.610" L x 0.440" W (15.49mm x 11.18mm) 0.630" Dia (16.00mm) 0.670" Dia (17.02mm) 0.700" Dia (17.78mm) 0.709" L x 0.610" W (18.00mm x 15.50mm) 0.710" Dia (18.03mm) 0.750" Dia (19.05mm) 0.760" L x 0.160" W (19.30mm x 4.06mm) 0.980" Dia (24.89mm) 1.060" Dia (26.92mm) 1.130" Dia (28.70mm) 1.500" Dia (38.10mm) 1.630" Dia (41.40mm) 3.000" Dia (76.20mm)	- 0.011" (0.28mm) 0.012" (0.30mm) 0.017" (0.43mm) 0.024" (0.60mm) 0.035" (0.90mm) 0.039" (1.00mm) 0.040" (1.02mm) 0.045" (1.15mm) 0.047" (1.20mm) 0.049" (1.25mm) 0.051" (1.30mm) 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.54mm) 0.067" (1.70mm) 0.071" (1.80mm) 0.085" (2.16mm) 0.086" (2.18mm) 0.087" (2.20mm) 0.090" (2.28mm) 0.090" (2.29mm) 0.094" (2.40mm) 0.100" (2.54mm) 0.100" (2.55mm) 0.102" (2.60mm) 0.106" (2.70mm) 0.110" (2.79mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.125" (3.18mm) 0.126" (3.20mm) 0.145" (3.68mm) 0.160" (4.06mm) 0.197" (5.00mm) 0.209" (5.30mm) 0.220" (5.59mm) 0.225" (5.72mm) 0.228" (5.80mm) 0.230" (5.80mm) 0.230" (5.84mm) 0.236" (6.00mm) 0.240" (6.10mm) 0.250" (6.35mm) 0.260" (6.60mm) 0.270" (6.86mm) 0.275" (6.99mm) 0.280" (7.11mm) 0.290" (7.37mm) 0.295" (7.49mm) 0.297" (7.54mm) 0.300" (7.62mm) 0.310" (7.87mm) 0.310" (7.90mm) 0.312" (7.92mm) 0.314" (7.98mm) 0.315" (8.00mm) 0.325" (8.26mm) 0.329" (8.36mm) 0.330" (8.38mm) 0.340" (8.64mm) 0.354" (9.00mm) 0.359" (9.12mm) 0.360" (9.13mm) 0.370" (9.40mm) 0.375" (9.53mm) 0.378" (9.60mm) 0.380" (9.65mm) 0.383" (9.73mm) 0.390" (9.91mm) 0.391" (9.93mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.410" (10.41mm) 0.420" (10.67mm) 0.433" (11.00mm) 0.440" (11.18mm) 0.449" (11.40mm) 0.450" (11.43mm) 0.460" (11.68mm) 0.469" (11.91mm) 0.470" (11.94mm) 0.470" (12.00mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.480" (12.20mm) 0.484" (12.30mm) 0.488" (12.40mm) 0.490" (12.45mm) 0.495" (12.57mm) 0.500" (12.70mm) 0.510" (12.95mm) 0.520" (13.21mm) 0.530" (13.46mm) 0.540" (13.72mm) 0.550" (13.97mm) 0.560" (14.22mm) 0.562" (14.27mm) 0.570" (14.48mm) 0.580" (14.73mm) 0.600" (15.24mm) 0.609" (15.47mm) 0.610" (15.49mm) 0.620" (15.75mm) 0.630" (16.00mm) 0.641" (16.28mm) 0.656" (16.66mm) 0.660" (16.76mm) 0.669" (17.00mm) 0.673" (17.10mm) 0.680" (17.27mm) 0.690" (17.53mm) 0.696" (17.70mm) 0.700" (17.78mm) 0.703" (17.86mm) 0.730" (18.54mm) 0.745" (18.92mm) 0.750" (19.05mm) 0.760" (19.30mm) 0.770" (19.56mm) 0.780" (19.81mm) 0.795" (20.19mm) 0.810" (20.57mm) 0.812" (20.62mm) 0.830" (21.08mm) 0.840" (21.34mm) 0.843" (21.41mm) 0.850" (21.59mm) 0.860" (21.84mm) 0.870" (22.10mm) 0.910" (23.11mm) 0.920" (23.37mm) 0.930" (23.62mm) 0.940" (23.88mm) 0.950" (24.13mm) 0.960" (24.38mm) 0.970" (24.64mm) 0.980" (24.89mm) 0.984" (24.99mm) 1.000" (25.40mm) 1.030" (26.16mm) 1.031" (26.19mm) 1.050" (26.67mm) 1.060" (26.92mm) 1.080" (27.43mm) 1.090" (27.69mm) 1.109" (28.17mm) 1.130" (28.70mm) 1.140" (28.96mm) 1.150" (29.21mm) 1.160" (29.46mm) 1.170" (29.72mm) 1.210" (30.73mm) 1.220" (30.99mm) 1.240" (31.50mm) 1.359" (34.52mm) 1.360" (34.54mm) 1.400" (35.56mm) 1.420" (36.07mm) 1.440" (36.58mm) 1.450" (36.83mm) 1.460" (37.08mm) 1.468" (37.29mm) 1.480" (37.59mm) 1.609" (40.87mm) 1.610" (40.89mm) 1.620" (41.15mm) 1.630" (41.40mm) 1.640" (41.66mm) 1.656" (42.06mm) 1.660" (42.16mm) 1.670" (42.42mm) 1.690" (42.93mm) 1.700" (43.18mm) 1.730" (43.94mm) 1.750" (44.45mm) 1.760" (44.70mm) 1.770" (44.96mm) 1.830" (46.48mm) 1.845" (46.86mm) 1.850" (46.99mm) 1.870" (47.50mm) 1.953" (49.61mm) 1.980" (50.29mm) 2.000" (50.80mm) 2.030" (51.56mm) 2.080" (52.83mm) 2.250" (57.15mm) 2.500" (63.50mm) 3.000" (76.20mm) 3.250" (82.55mm) 3.500" (88.90mm) 4.250" (107.95mm) 4.500" (114.30mm)	- -25°C ~ 85°C -30°C ~ 85°C -40°C ~ 125°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 200°C -65°C ~ 125°C	- Chassis Mount Panel Mount Surface Mount Through Hole User Defined	- General Purpose Low Profile Low Profile, Non-Magnetic Non-Magnetic Non-Magnetic, Sealed Sealed Voltage Tuning

全部重置

应用所有

结果:

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	电容范围	调整类型	额定电压	介电材料	品质因数 (Q) @ 频率	尺寸 / 尺寸	高度 - 安装后（最大值）	工作温度	安装类型	特性

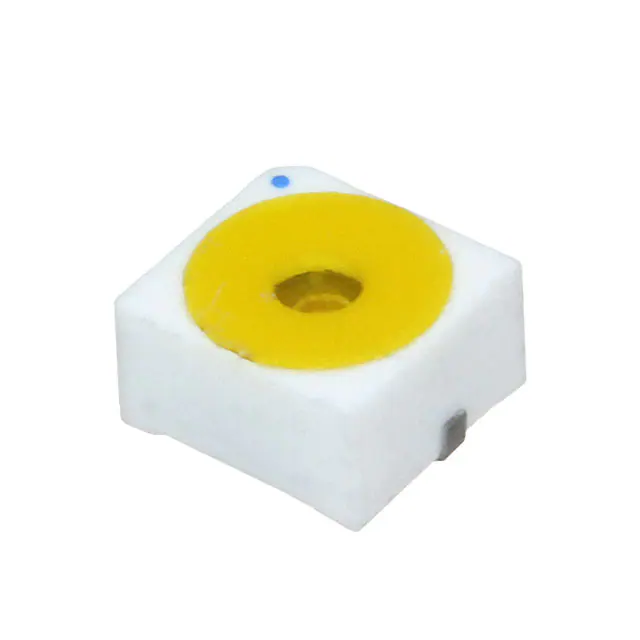

	2320-2 CAP TRIMMER 2.5-10PF 250V SMD Knowles Johanson Manufacturing	25	-	立即询盘	规格书	Cera-Trim®	Bulk	Active	2.5 ~ 10pF	Top	250 V	Ceramic	1000 @ 100MHz	0.180" L x 0.167" W (4.57mm x 4.24mm)	0.086" (2.18mm)	-55°C ~ 125°C	Surface Mount	Sealed
	9610 CAP TRIMMER 1.5-4.5PF 250V TH Knowles Johanson Manufacturing	25	-	立即询盘	规格书	Seal-Trim®	Bulk	Active	1.5 ~ 4.5pF	Top	250 V	-	1000 @ 100MHz	0.270" Dia (6.86mm)	0.100" (2.54mm)	-55°C ~ 125°C	Through Hole	Sealed
	5750 CAP TRIMMER 0.8-10PF 250V PNL MT Knowles Johanson Manufacturing	58	-	立即询盘	规格书	-	Bulk	Active	0.8 ~ 10pF	Top	250 V	Air	7500 @ 100MHz	0.235" Dia (5.97mm)	-	-65°C ~ 125°C	Panel Mount	Sealed

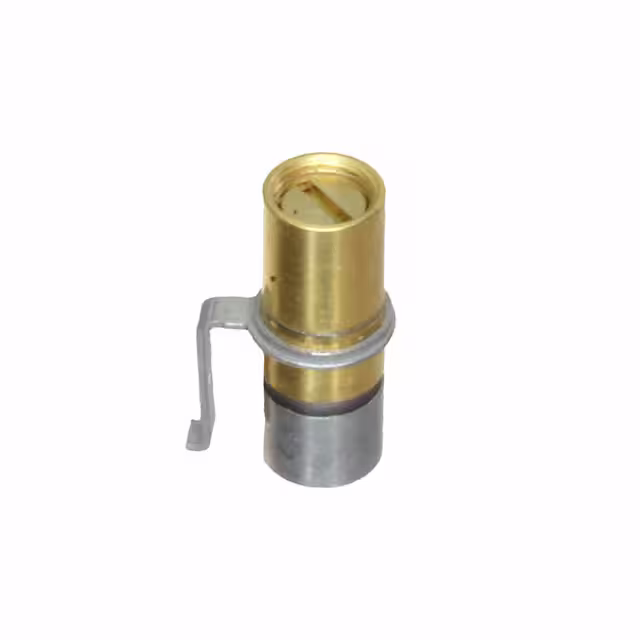

	27273L CAP TRIMMER Knowles Johanson Manufacturing	73	-	立即询盘	规格书	Giga-Trim®	Bulk	Active	-	-	-	Sapphire	3000 @ 250MHz	0.140" Dia (3.56mm)	0.314" (7.98mm)	-65°C ~ 125°C	-	-

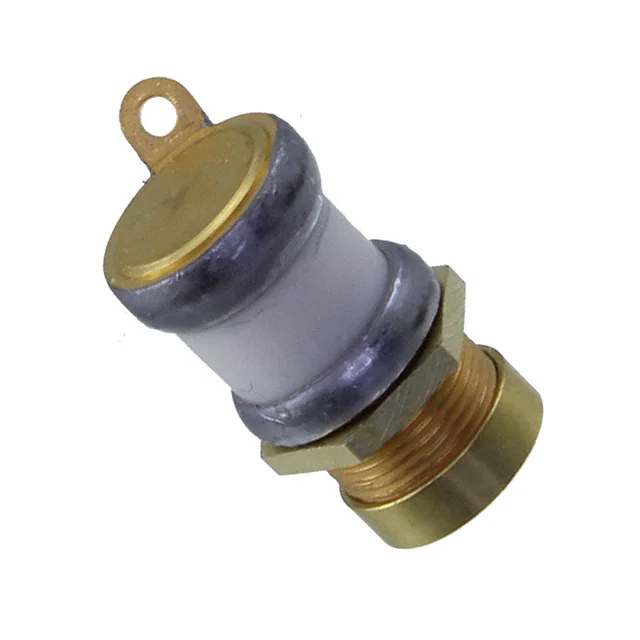

	5200 CAP TRIMMER 0.8-10PF 250V PNL MT Knowles Johanson Manufacturing	58	-	立即询盘	规格书	-	Bulk	Active	0.8 ~ 10pF	Top	250 V	Air	5000 @ 100MHz	0.280" Dia (7.11mm)	-	-65°C ~ 125°C	Panel Mount	Sealed
	9701-0 Thin film Knowles Johanson Manufacturing	28	-	立即询盘	规格书	-	Bulk	Active	0.25 ~ 0.7pF	Top	250 V	Ceramic	1000 @ 100MHz	0.225" Dia (5.72mm)	0.040" (1.02mm)	-55°C ~ 125°C	Surface Mount	Low Profile
	27281SL CAP TRIMMER Knowles Johanson Manufacturing	10	-	立即询盘	规格书	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-
	5500 CAP FILM TRIM Knowles Johanson Manufacturing	18	-	立即询盘	规格书	-	Bulk	Active	1 ~ 20pF	Side	250 V	Air	1500 @ 100MHz	0.490" L x 0.250" W (12.45mm x 6.35mm)	-	-55°C ~ 125°C	Surface Mount	Sealed
	5601 CAP FILM TRIM Knowles Johanson Manufacturing	19	-	立即询盘	规格书	-	Bulk	Active	1 ~ 30pF	Side	250 V	Air	800 @ 100MHz	0.760" L x 0.160" W (19.30mm x 4.06mm)	-	-55°C ~ 125°C	Surface Mount	Sealed
	5761 CAP FILM TRIM Knowles Johanson Manufacturing	10	-	立即询盘	规格书	-	Bulk	Active	0.6 ~ 6pF	Side	250 V	Air	10000 @ 100MHz	0.290" L x 0.190" W (7.37mm x 4.83mm)	-	-	Surface Mount	Non-Magnetic

共 380 条记录«上一页 1 2 3 4 5 678 9 10...38 下一页»
