拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2047L1L1W01SWITCH TOGGLE DP3T 6A 125V |
0 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | - | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2112LCG01SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2112TCW03SWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2113LCFG03SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

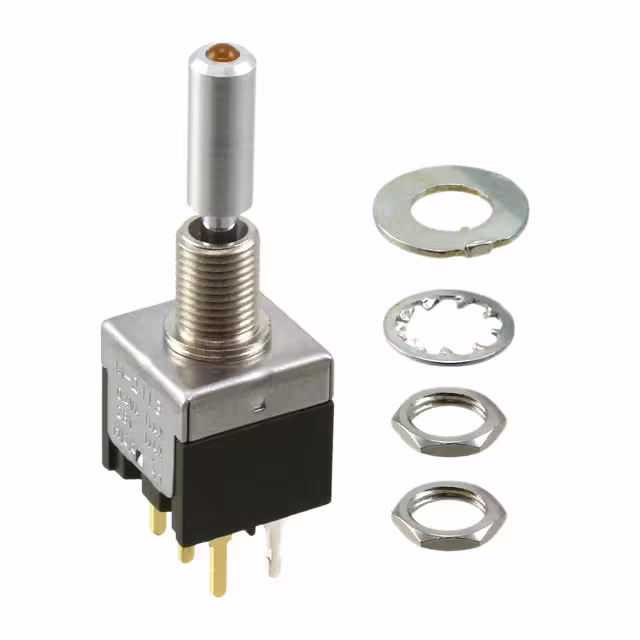

M2113LEG03SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Yellow | 2.1 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2113TCW03SWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2113TEFW03SWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Yellow | 2.1 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2113TFW02SWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2122TCFG01SWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2122TCW01/USWITCH TOGGLE DPDT 6A 125V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2122TCW03SWITCH TOGGLE DPDT 6A 125V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2123LEW02SWITCH TOGGLE DPDT 6A 125V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Yellow | 2.1 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2123LFW02SWITCH TOGGLE DPDT 6A 125V |
0 |
|
规格书 |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2T12S4A5G40/CULSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
规格书 |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12S4A5W40/CULSWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12S4A5W40/USWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12SA5A03/UCSWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12SA5A13/CULSWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13S4A5G13SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
规格书 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13S4A5W30SWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
