上传BOM
拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

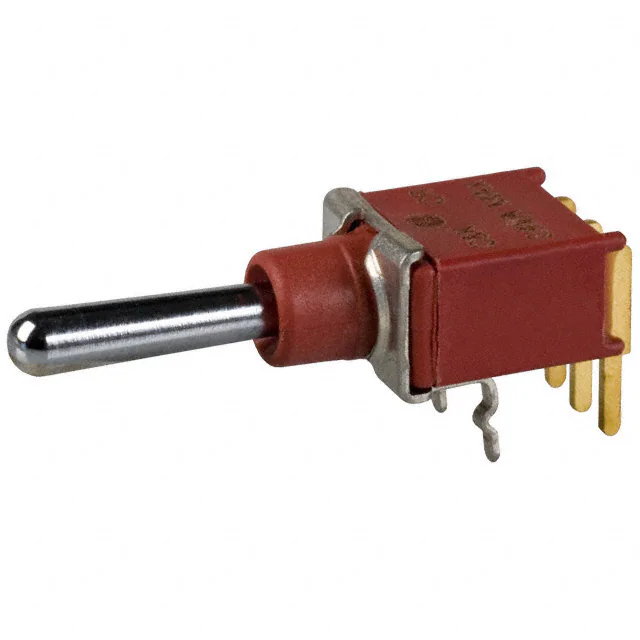

ET05SF1ABESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
规格书 |
ET | Tray | Obsolete | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | ESD Conductive Bushing | -30°C ~ 85°C |
|
ET07MD1CKESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
规格书 |
ET | Tray | Obsolete | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ET21MF1AVGESWITCH TOGGLE DPDT 3A 120V |
0 |
|
规格书 |
ET | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | ESD Conductive Bushing | -30°C ~ 85°C |
|
|
ET24LD1CBESWITCH TOGGLE SP3T 0.4VA 20V |
0 |
|
规格书 |
ET | Tray | Obsolete | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.13mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
ET24MD1V3BESWITCH TOGGLE SP3T 0.4VA 20V |
0 |
|
规格书 |
ET | Tray | Obsolete | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
ET25MD1AKESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
规格书 |
ET | Tray | Obsolete | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ET27MD1CKESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
规格书 |
ET | Tray | Obsolete | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ET28MD1CKESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
规格书 |
ET | Tray | Obsolete | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M83731/10-262SWITCH TOGGLE DPDT 5A 115V |
0 |
|
规格书 |
M83731 | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
M83731/10-341SWITCH TOGGLE DPDT 5A 115V |
0 |
|
规格书 |
M83731 | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|

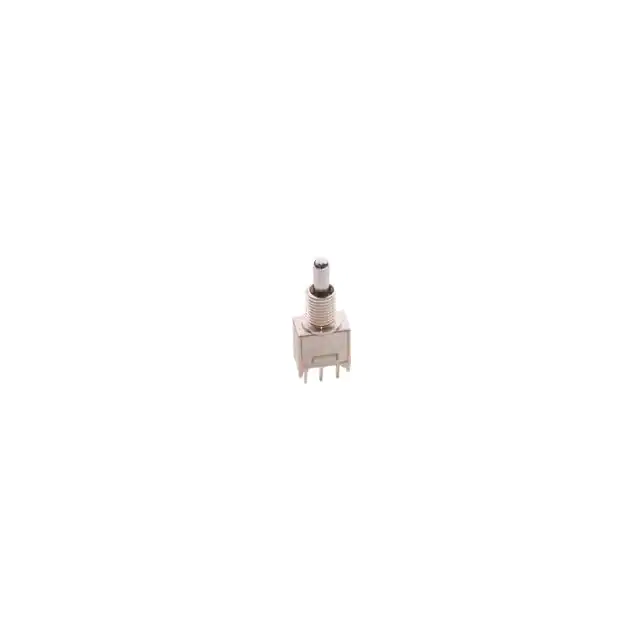

T101LHAVKESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
规格书 |
T | Tray | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T101M1TALESWITCH TOGGLE SPDT 3A 120V |
0 |
|
规格书 |
T | Tray | Obsolete | Panel Mount, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T101MHAKESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
规格书 |
T | Tray | Obsolete | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T103KAKESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
规格书 |
T | Tray | Obsolete | Panel Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 16.26mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T103LHCKESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
规格书 |
T | Tray | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T103M1H9AKESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
规格书 |
T | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T103MHCLESWITCH TOGGLE SPDT 2A 120V |
0 |
|
规格书 |
T | Tray | Obsolete | Panel Mount | SPDT | On-Off-On | 2A (AC/DC) | 120 V | 28 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T103SCFALESWITCH TOGGLE SPDT 2A 120V |
0 |
|
规格书 |
T | Tray | Obsolete | Panel Mount, Right Angle | SPDT | On-Off-On | 2A (AC/DC) | 120 V | 28 V | Standard Round | 7.11mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T105SYCKESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
规格书 |
T | Tray | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T107P3T9ALESWITCH TOGGLE SPDT 2A 120V |
0 |
|
规格书 |
T | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-Off-Mom | 2A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
