上传BOM
拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S301F/UC-AT402HSWITCH TOGGLE SPST 15A 125V |
0 |
|
规格书 |
S | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S301F/UC-AT402ASWITCH TOGGLE SPST 15A 125V |
0 |
|
规格书 |
S | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S301F/UC-AT402CSWITCH TOGGLE SPST 15A 125V |
0 |
|
规格书 |
S | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
7201P3YZQESSWITCH TOGGLE DPDT 5A 120V |
0 |
|
规格书 |
7000 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 85°C |
|

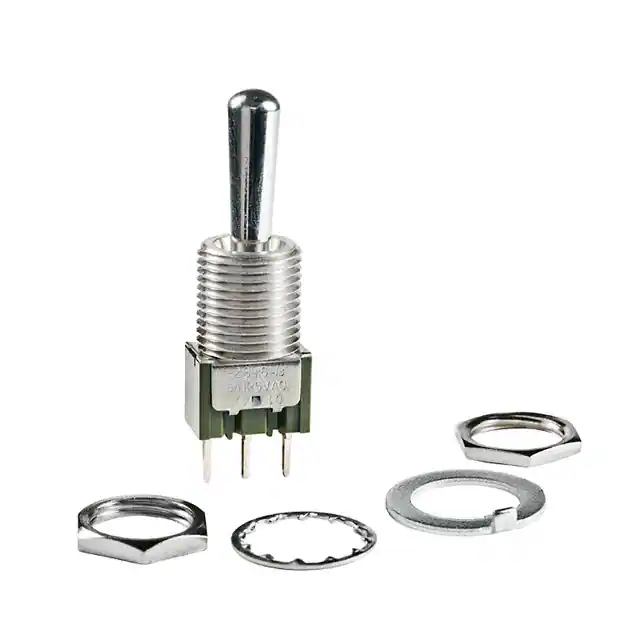

M2018B2B1W03SWITCH TOGGLE SPDT 6A 125V |
0 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2023SS1W01SWITCH TOGGLE DPDT 6A 125V |
0 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

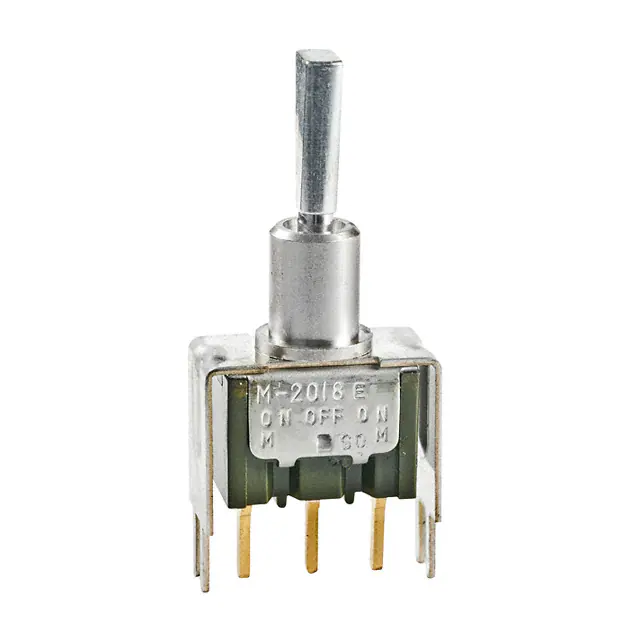

M2018ES2G13SWITCH TOGGLE SPDT 0.4VA 28V |
13 |
|
规格书 |
M | Tray | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

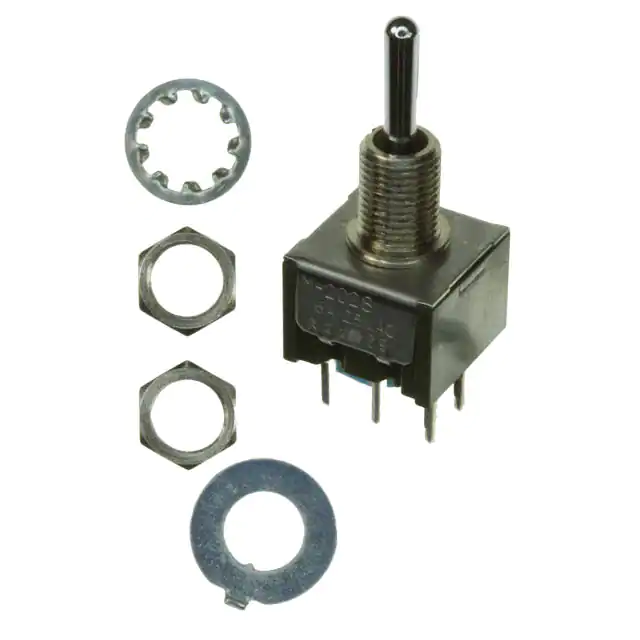

M2028SS1W03SWITCH TOGGLE DPDT 6A 125V |
2,071 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B25KH-AASWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
规格书 |
B | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
B25KV-AHSWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
规格书 |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Gray Actuator | -30°C ~ 85°C |
|

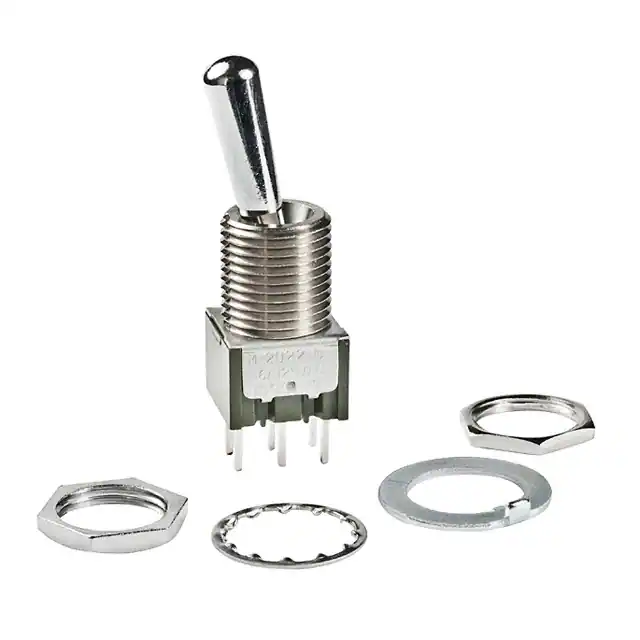

M2022B2B1W03SWITCH TOGGLE DPDT 6A 125V |
0 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

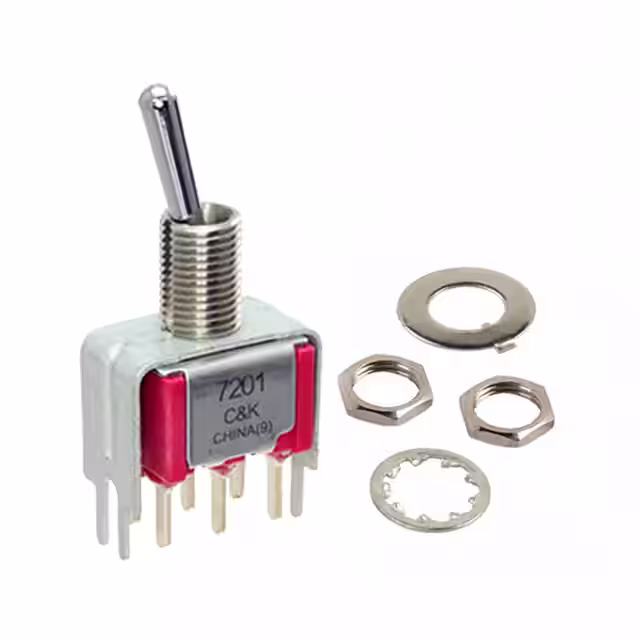

7201SYV3QESWITCH TOGGLE DPDT 5A 120V |
184 |
|
规格书 |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022B2B1W01SWITCH TOGGLE DPDT 6A 125V |
199 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

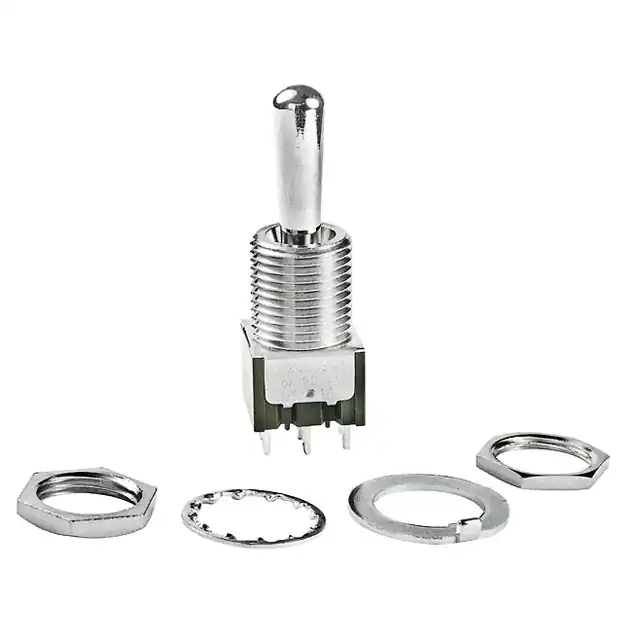

M2027B2B1W01SWITCH TOGGLE SP3T 6A 125V |
0 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2012SS1W13-BCSWITCH TOGGLE SPDT 6A 125V |
886 |
|
规格书 |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -30°C ~ 85°C |
|

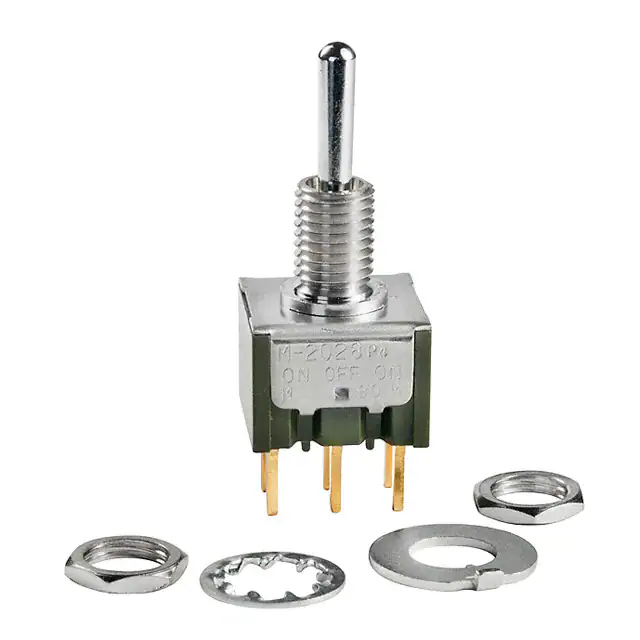

M2028SS4G03SWITCH TOGGLE DPDT 0.4VA 28V |
19 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

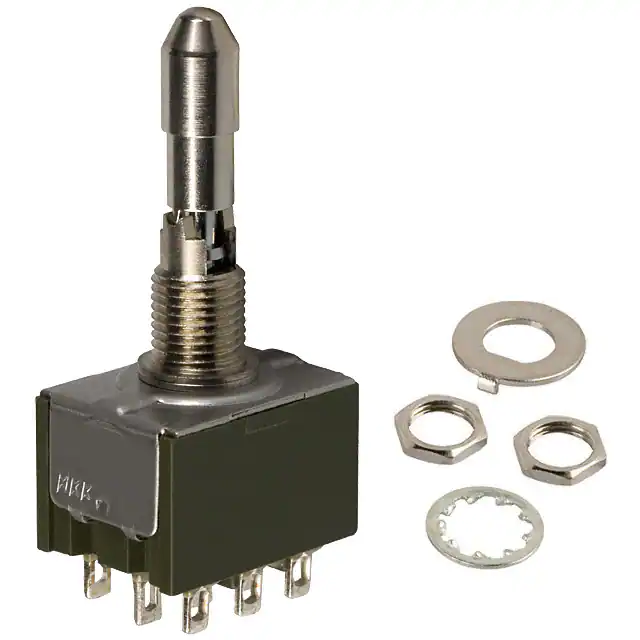

M2032LL1W01SWITCH TOGGLE 3PDT 6A 125V |
0 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012SS1G01-BGSWITCH TOGGLE SPDT 0.4VA 28V |
1,519 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Blue Cap | -30°C ~ 85°C |
|
|
M2012SS1G01-BASWITCH TOGGLE SPDT 0.4VA 28V |
1,162 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
|
M2012SS1G01-BBSWITCH TOGGLE SPDT 0.4VA 28V |
1,141 |
|
规格书 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | White Cap | -30°C ~ 85°C |
