拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

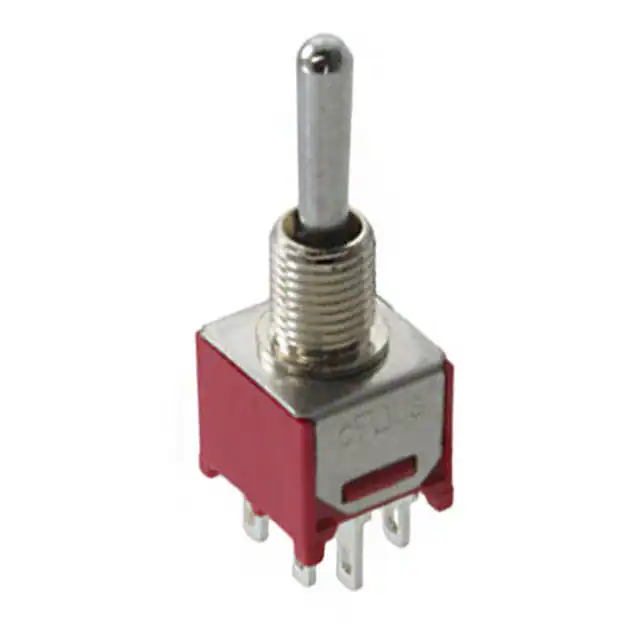

200MDP3T1B1M1QESWITCH TOGGLE DPDT 3A 120V |
195 |
|
规格书 |
200 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
CF-TA-1EB4-A12SWITCH TOGGLE SPDT 50MA 48V |
195 |
|
规格书 |
CF-TA | Bulk | Active | Surface Mount, Right Angle | SPDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | - | -40°C ~ 85°C |
|
200MSP3T3B2M6RESWITCH TOGGLE SPDT 0.4VA 20V |
540 |
|
规格书 |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825136-8SWITCH TOGGLE SPDT 0.4VA 20V |
434 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
FT 1 D-VMSWITCH TOGGLE 1-POLE ON - ON |
600 |
|
规格书 |
FT | Box | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 150mA (DC) | - | 25 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
FT 2 DSWITCH TOGGLE 2-POLE ON - ON |
600 |
|
规格书 |
FT | Box | Active | Through Hole | DPDT | On-On | 150mA (DC) | - | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|

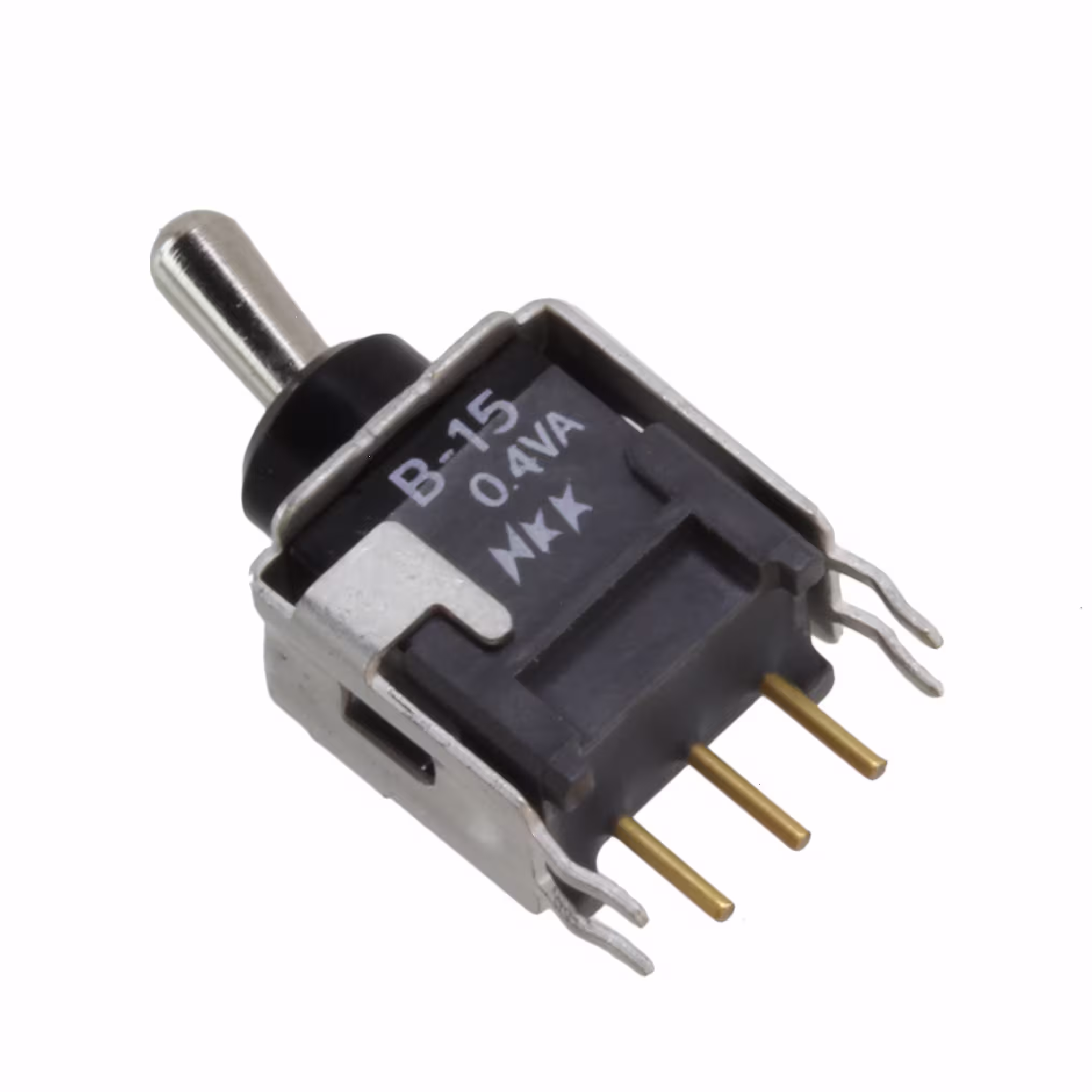

B15JBSWITCH TOGGLE SPDT 0.4VA 28V |
109 |
|
规格书 |
B | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
3-1825138-8SWITCH TOGGLE DPDT 5A 120V |
450 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

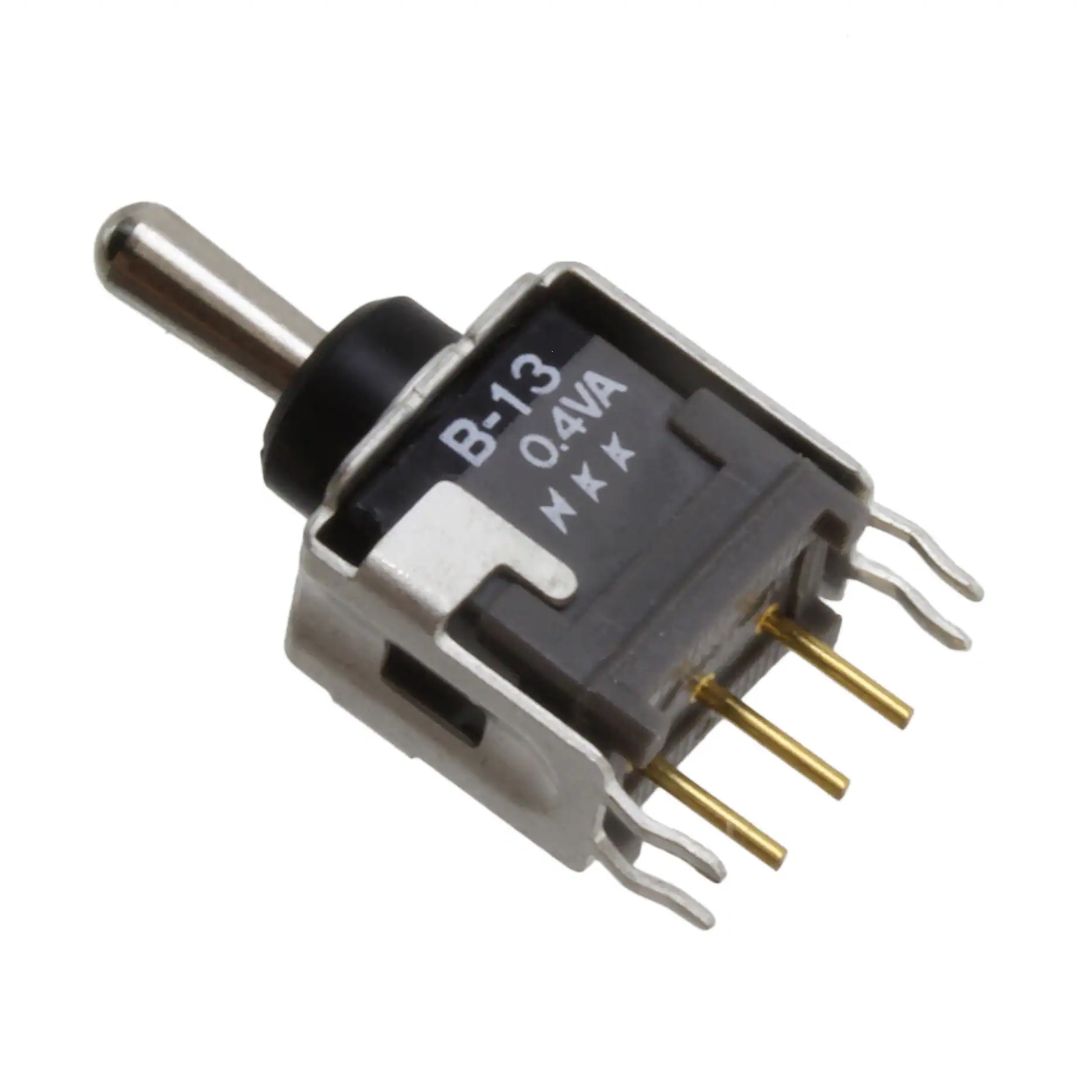

B13JBSWITCH TOGGLE SPDT 0.4VA 28V |
178 |
|
规格书 |
B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6-1825136-3SWITCH TOGGLE SPDT 5A 120V |
445 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
4-1825136-3SWITCH TOGGLE SPDT 5A 120V |
498 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
033TEHSATABSWITCH TOGGLE SPDT 0.4VA 28V |
200 |
|
规格书 |
033TE | Bag | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
SST 1 DB-RSWITCH TOGGLE ON - ON |
490 |
|
规格书 |
SST | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
FT 2 D-VMSWITCH TOGGLE 2-POLE ON - ON |
600 |
|
规格书 |
FT | Box | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 150mA (DC) | - | 25 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
FT 1 HSWITCH TOGGLE 1-POLE MOM OFF ON |
600 |
|
规格书 |
FT | Box | Active | Through Hole | SPDT | Mom-Off-On | 150mA (DC) | - | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
FT 1 ESWITCH TOGGLE 1-POLE ON OFF ON |
600 |
|
规格书 |
FT | Box | Active | Through Hole | SPDT | On-Off-On | 150mA (DC) | - | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
FT 1 DSWITCH TOGGLE 1-POLE ON - ON |
600 |
|
规格书 |
FT | Box | Active | Through Hole | SPDT | On-On | 150mA (DC) | - | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
033TBSSATCSSWITCH TOGGLE SPDT 3A 120V |
197 |
|
规格书 |
033TB | Bag | Active | Through Hole | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
8F2012-ZSWITCH TOGGLE DPDT 6A 125V |
112 |
|
规格书 |
8F | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -30°C ~ 85°C |
|
ATE1E-6M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
116 |
|
规格书 |
ATE | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
