拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GTS447R101HRSWITCH TOGGLE SPST-NC 16A 277V |
174 |
|
规格书 |
GTS447 | Bulk | Active | Panel Mount | SPST-NC | On-Mom | 16A (AC) | 277 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
100DP5T6B11M1QEHSWITCH TOGGLE DPDT 5A 120V |
512 |
|
规格书 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
FT1D-2M-ZSWITCH TOGGLE SPDT 0.4VA 28V |
3,180 |
|
规格书 |
FT | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Yellow Actuator | -40°C ~ 85°C |
|
2M1-SP3-T6-B1-M1QESWITCH TOGGLE SPDT 5A 125V |
1,120 |
|
规格书 |
2M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TMS3T5B2M2RESWITCH TOGGLE SPDT 0.4VA 20V |
178 |
|
规格书 |
- | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
1825139-2SWITCH TOGGLE DPDT 0.4VA 20V |
215 |
|
规格书 |
Gemini A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
CFT2-1EC-AWSWITCH TOGGLE SPDT 0.4VA 28V |
207 |
|
规格书 |
CFT2 | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
200RDP1T1B1M7RSWITCH TOGGLE DPDT 0.4VA 48V |
182 |
|
规格书 |
200R | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|

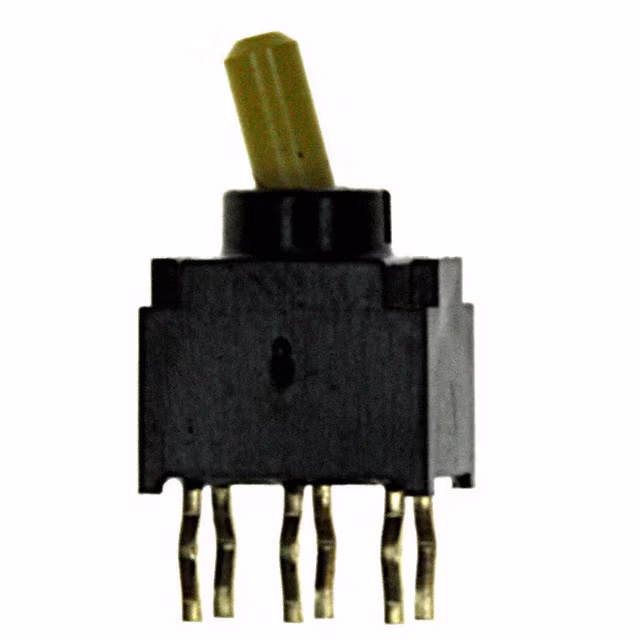

FT2D-2M-ZSWITCH TOGGLE DPDT 0.4VA 28V |
164 |
|
规格书 |
FT | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Yellow Actuator | -40°C ~ 85°C |
|
|
100SP4T7B13M2QEHSWITCH TOGGLE SPDT 5A 120V |
141 |
|
规格书 |
100 | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

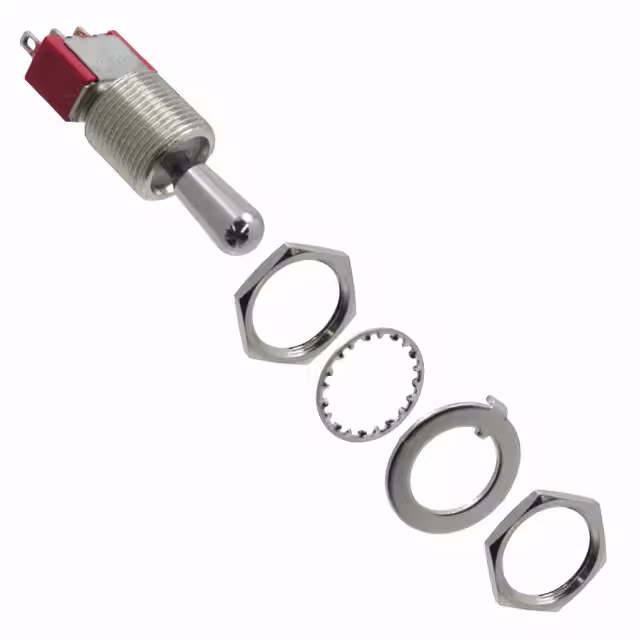

100SP4T7B13M1QEHSWITCH TOGGLE SPDT 5A 120V |
423 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

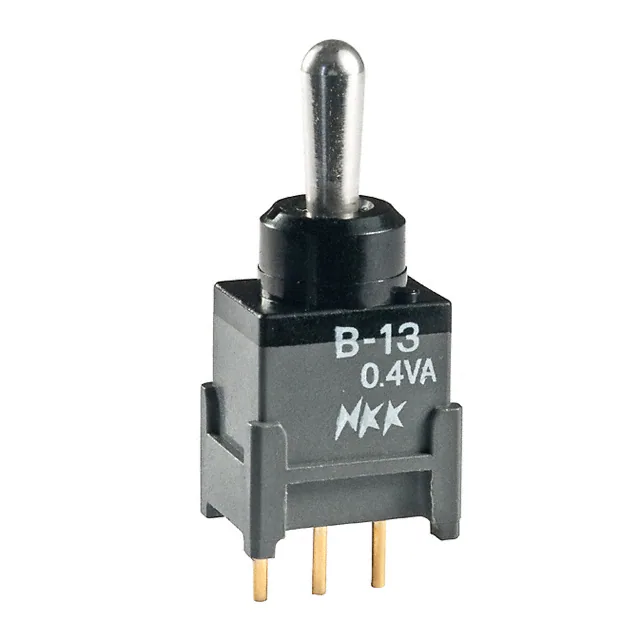

B13JPSWITCH TOGGLE SPDT 0.4VA 28V |
147 |
|
规格书 |
B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

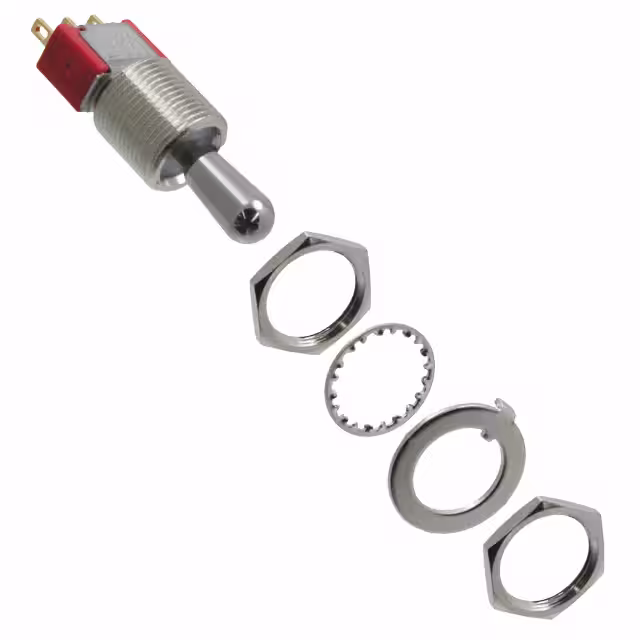

100SP3T7B13M1REHSWITCH TOGGLE SPDT 0.4VA 20V |
477 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

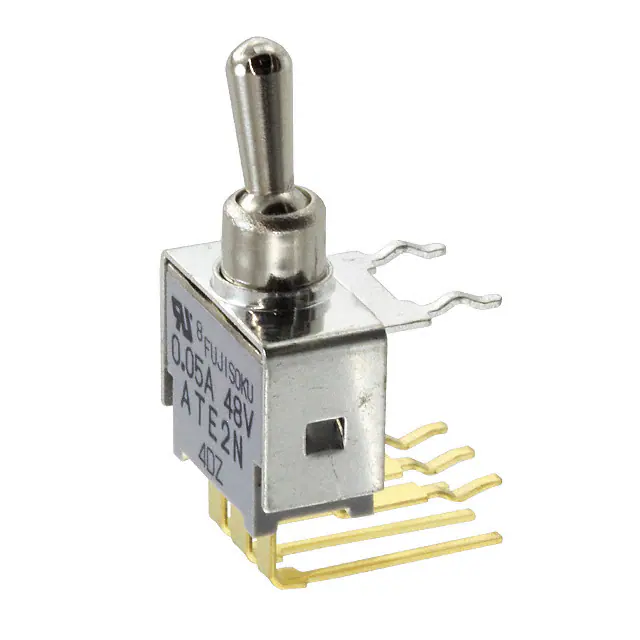

ATE2D-6M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
135 |
|
规格书 |
ATE | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
5239ABSWITCH TOGGLE SPDT 6A 125V |
3,156 |
|
规格书 |
5000 | Tray | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

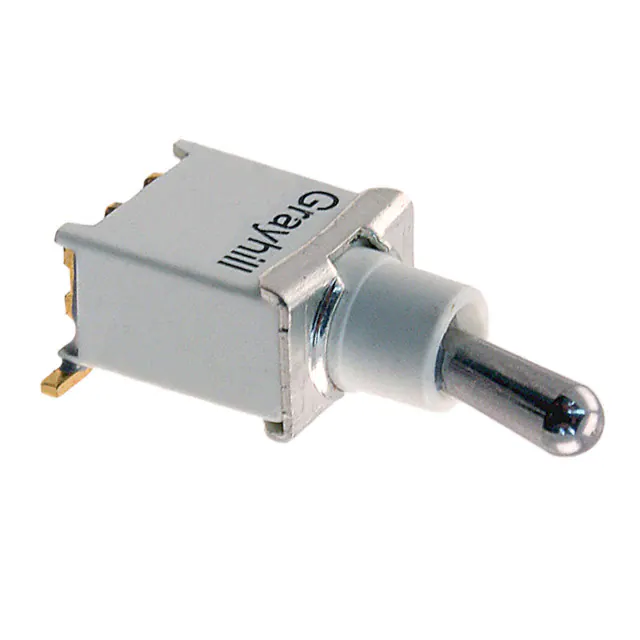

34EWMSP12M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,213 |
|
规格书 |
34E | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
, ET01MD1SAKE(T&R), ET03MD1SAKE(T&R).jpg)
|
ET03MD1SAPESWITCH TOGGLE SPDT 0.4VA 20V |
191 |
|
规格书 |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

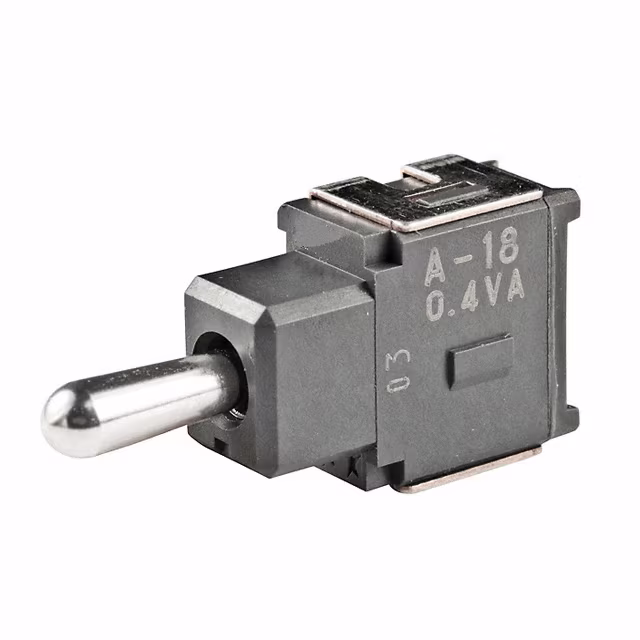

A18JHSWITCH TOGGLE SPDT 0.4VA 28V |
381 |
|
规格书 |
A | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

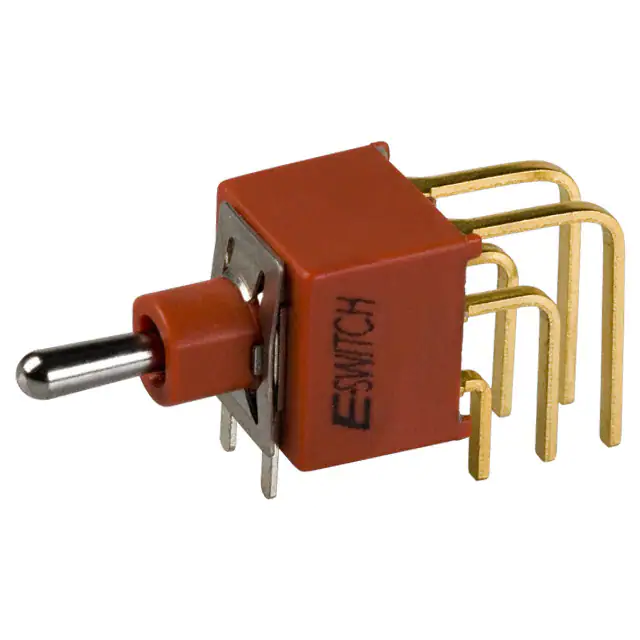

100AWDP1T2B4M7RESWITCH TOGGLE DPDT 0.4VA 20V |
252 |
|
规格书 |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
3-1825137-9SWITCH TOGGLE SPDT 5A 120V |
396 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
