拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

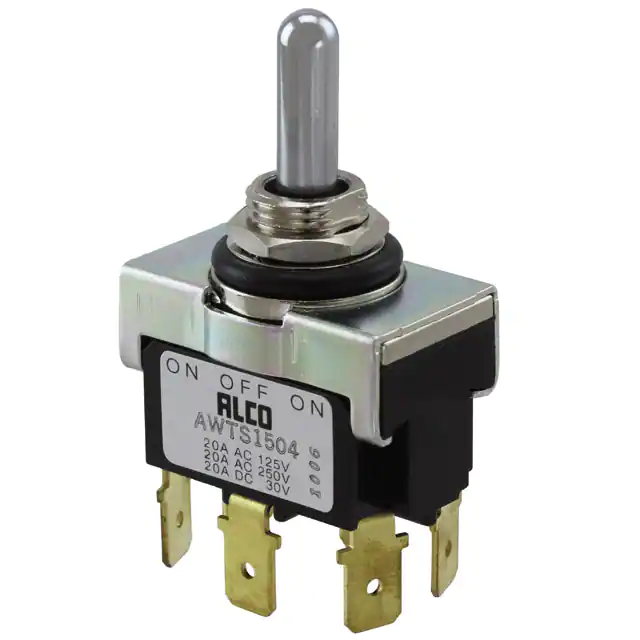

7-6437630-4SWITCH TOGGLE SPDT 20A 125V TE Connectivity ALCOSWITCH Switches |
430 |
|
规格书 |
AW | Bulk | Active | Panel Mount | SPDT | On-Mom | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
1-6437630-1SWITCH TOGGLE DPDT 20A 125V TE Connectivity ALCOSWITCH Switches |
480 |
|
规格书 |
AW | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Sealed | -20°C ~ 70°C |
|
1825136-8SWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
434 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

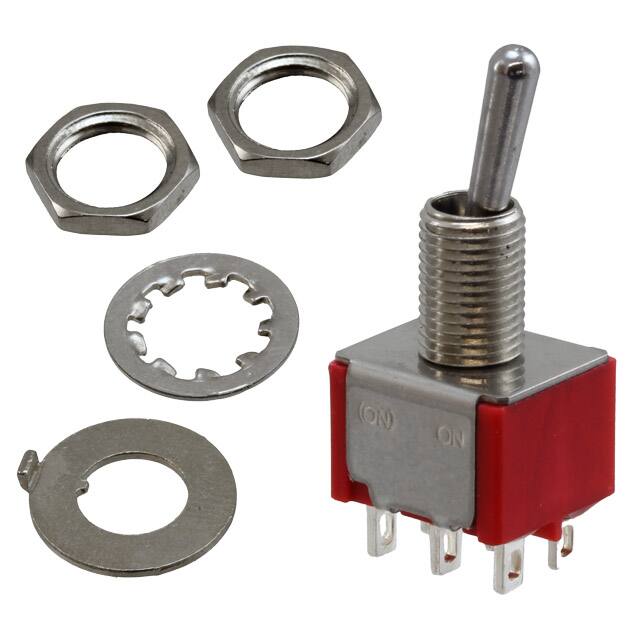

3-1825138-8SWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
450 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6-1825136-3SWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
445 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
4-1825136-3SWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
498 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

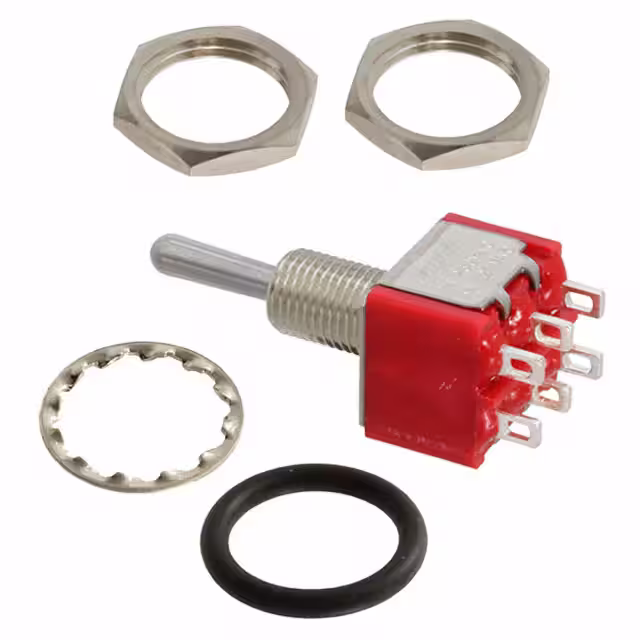

4-1825139-5SWITCH TOGGLE SP3T 5A 120V TE Connectivity ALCOSWITCH Switches |
500 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

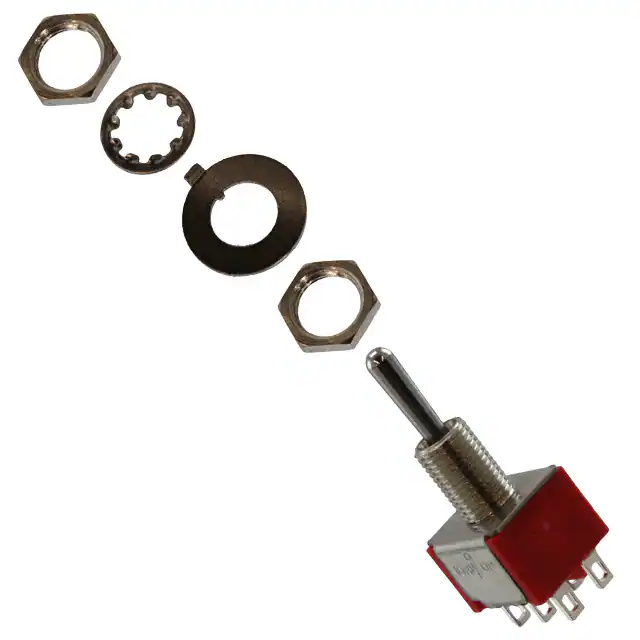

2-1825139-4SWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
486 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
3-1825138-1SWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
316 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
3-1825139-4SWITCH TOGGLE SP3T 5A 120V TE Connectivity ALCOSWITCH Switches |
392 |
|
规格书 |
Gemini A | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.19mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
