拨动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

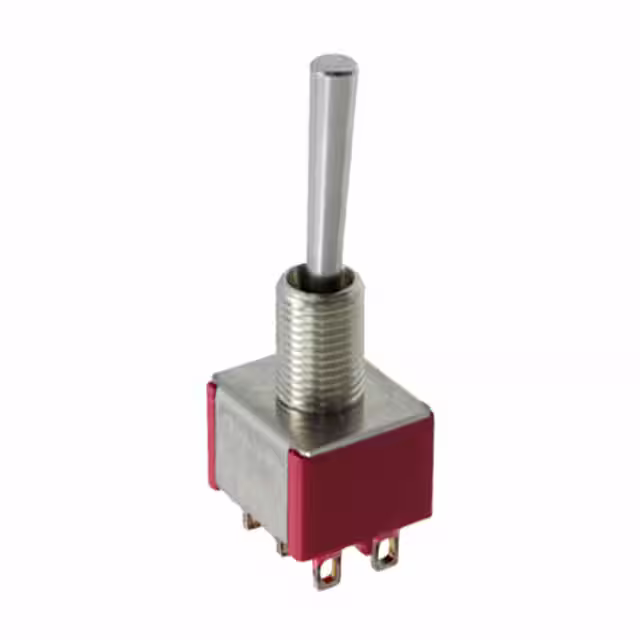

100DP3T4B1M1QESWITCH TOGGLE DPDT 5A 120V |
179 |
|
规格书 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

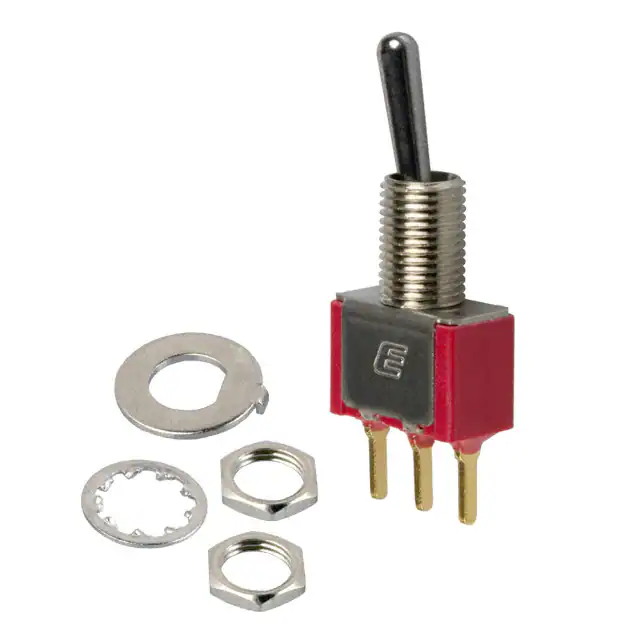

100SP1T1B1M2REHSWITCH TOGGLE SPDT 0.4VA 20V |
447 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP4T1B1M1QEHSWITCH TOGGLE SPDT 5A 120V |
246 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

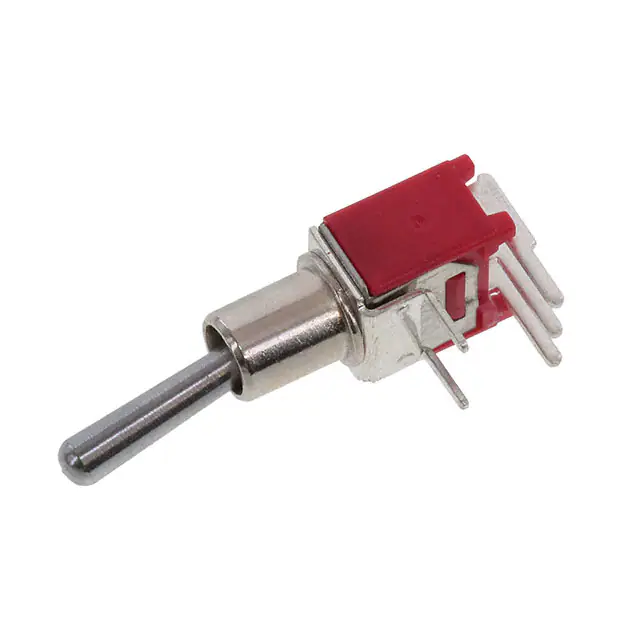

200MSP1T1B2M6QESWITCH TOGGLE SPDT 3A 120V |
594 |
|
规格书 |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

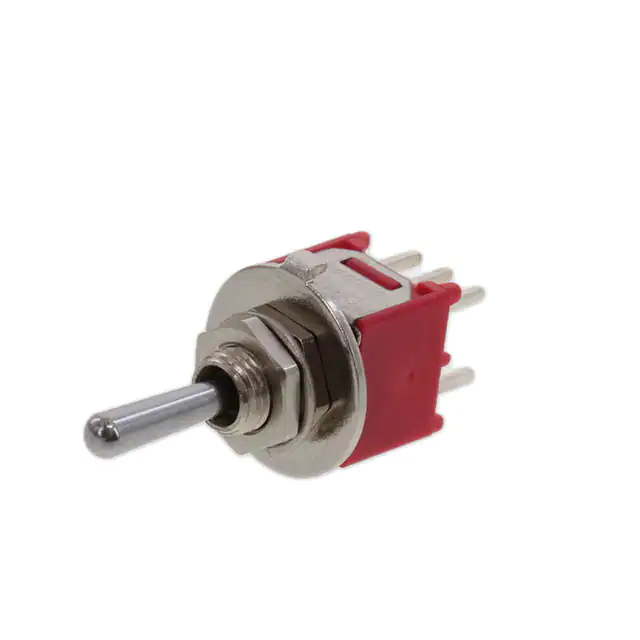

200MDP3T1B1M2QEHSWITCH TOGGLE DPDT 3A 120V |
653 |
|
规格书 |
200 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

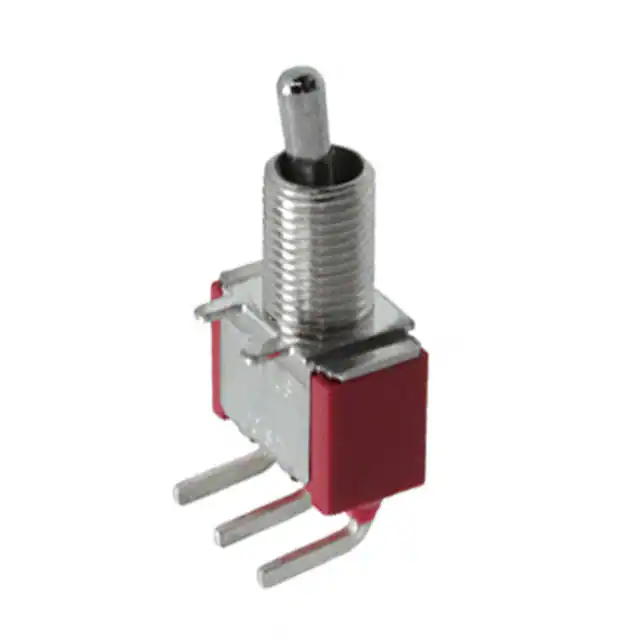

100SP1T2B1M6QESWITCH TOGGLE SPDT 5A 120V |
258 |
|
规格书 |
100 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

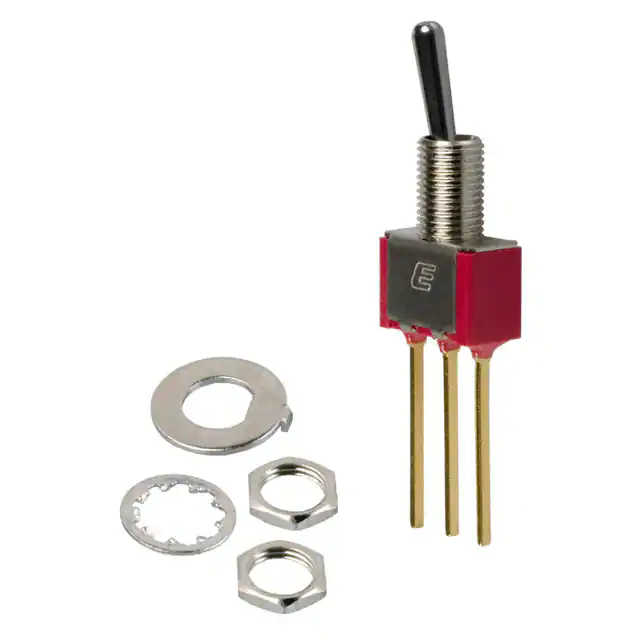

100SP1T1B1M51REHSWITCH TOGGLE SPDT 0.4VA 20V |
169 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

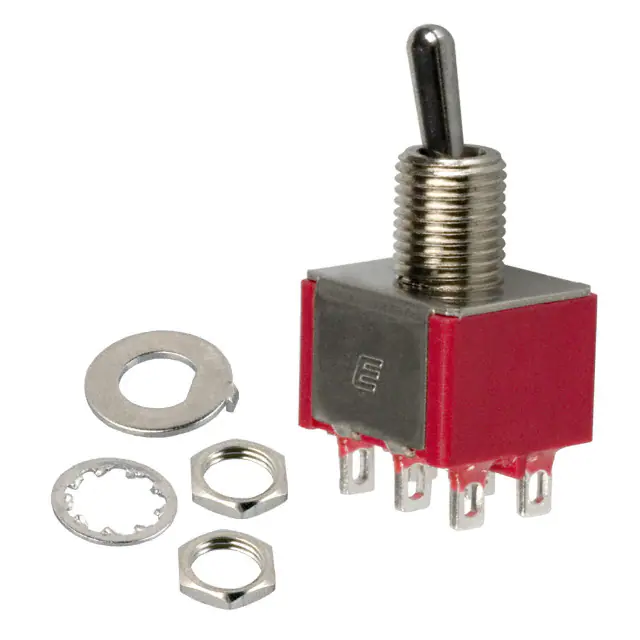

100DP1T2B3M1QEHSWITCH TOGGLE DPDT 5A 120V |
1,079 |
|
规格书 |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

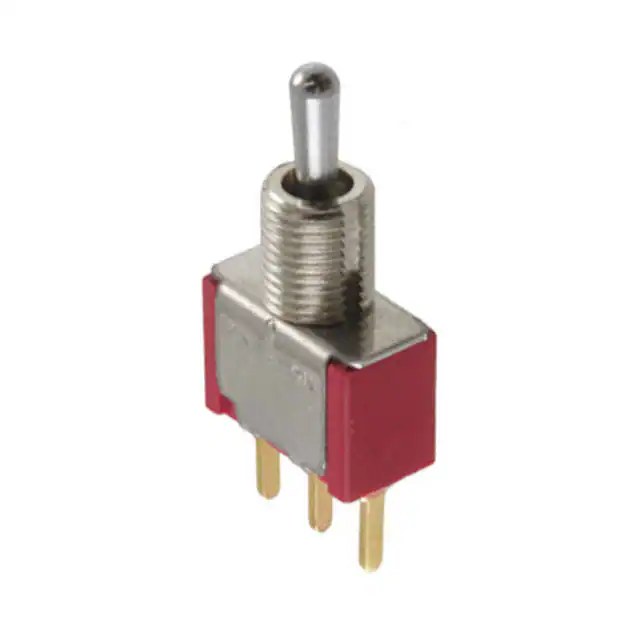

100SP3T2B3M2RESWITCH TOGGLE SPDT 0.4VA 20V |
1,134 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200USP1T1A1M7RESWITCH TOGGLE SPDT 0.4VA 20V |
1,965 |
|
规格书 |
200U | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T1B1M1QEHSWITCH TOGGLE SPDT 5A 120V |
1,525 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

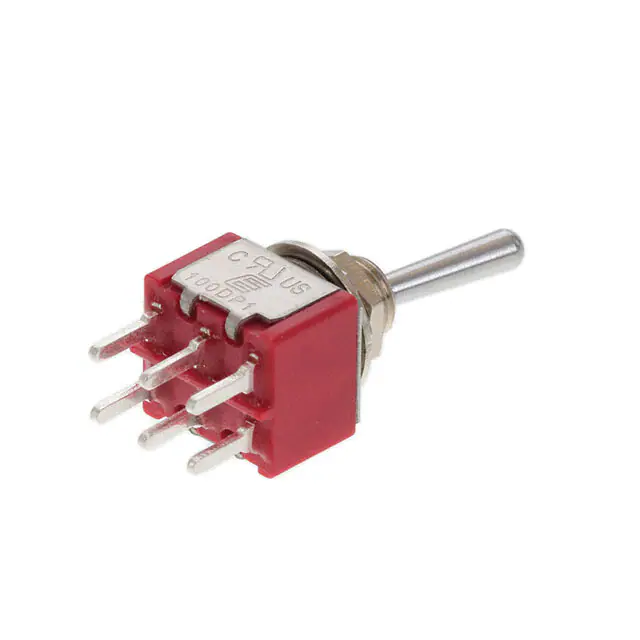

100DP1T1B3M2QEHSWITCH TOGGLE DPDT 5A 120V |
337 |
|
规格书 |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

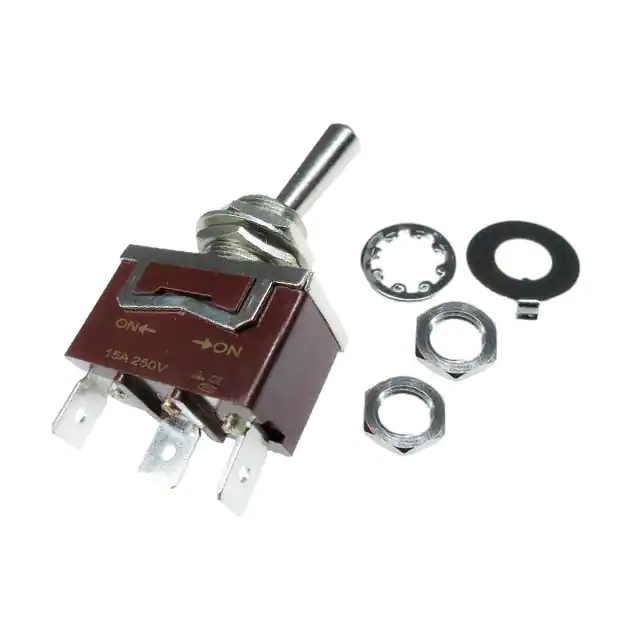

SW-T1-2B-B-K1SWITCH TOGGLE SPDT 15A 125V |
154 |
|
规格书 |
SW | Bag | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -25°C ~ 85°C |
|

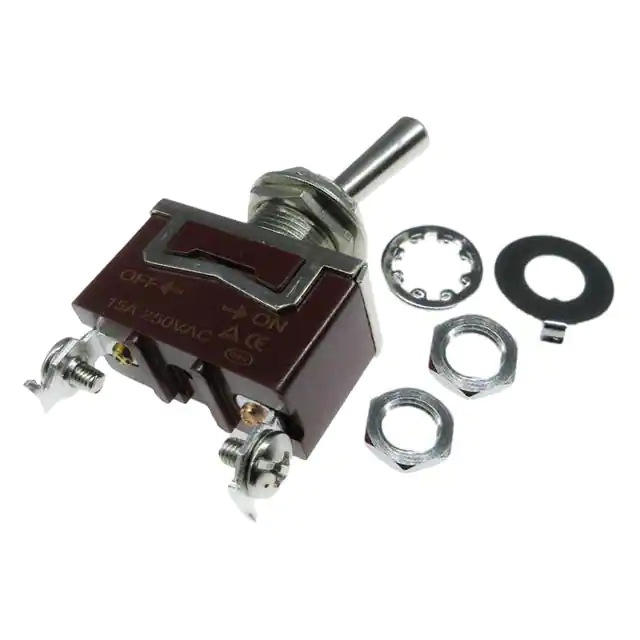

SW-T1-1A-D-K1SWITCH TOGGLE SPST 15A 125V |
104 |
|
规格书 |
SW | Bag | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -25°C ~ 85°C |
|

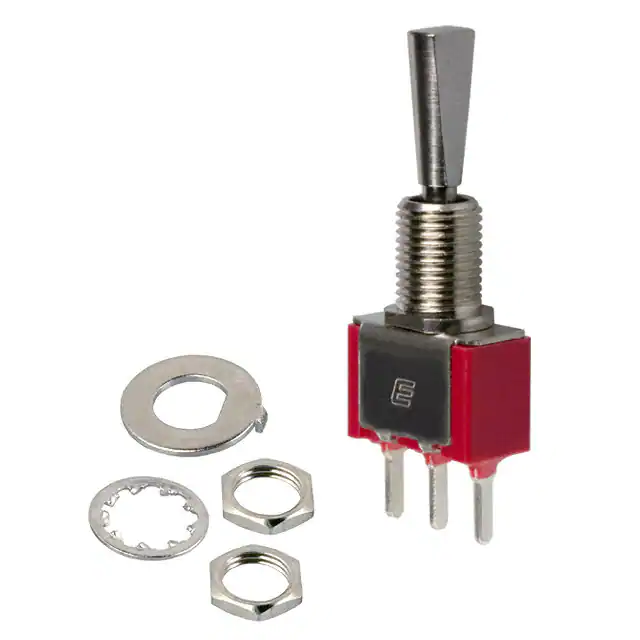

100SP1T6B11M2QEHSWITCH TOGGLE SPDT 5A 120V |
477 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T6B11M1QEHSWITCH TOGGLE SPDT 5A 120V |
572 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

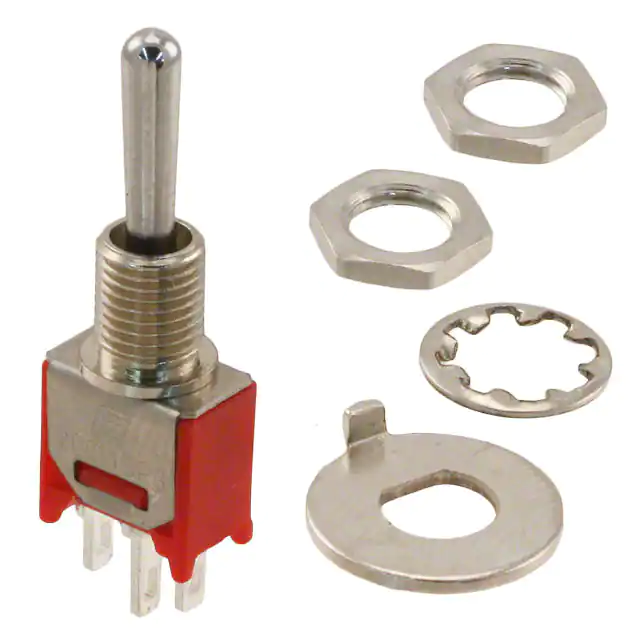

200MSP3T1B1M1QEHSWITCH TOGGLE SPDT 3A 120V |
513 |
|
规格书 |
200 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

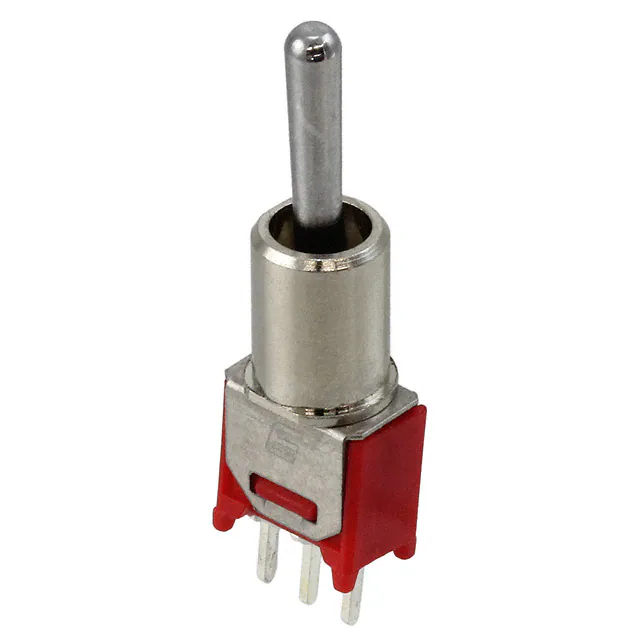

200MSP3T4B6M2QESWITCH TOGGLE SPDT 3A 120V |
261 |
|
规格书 |
200 | Bulk | Active | Through Hole | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

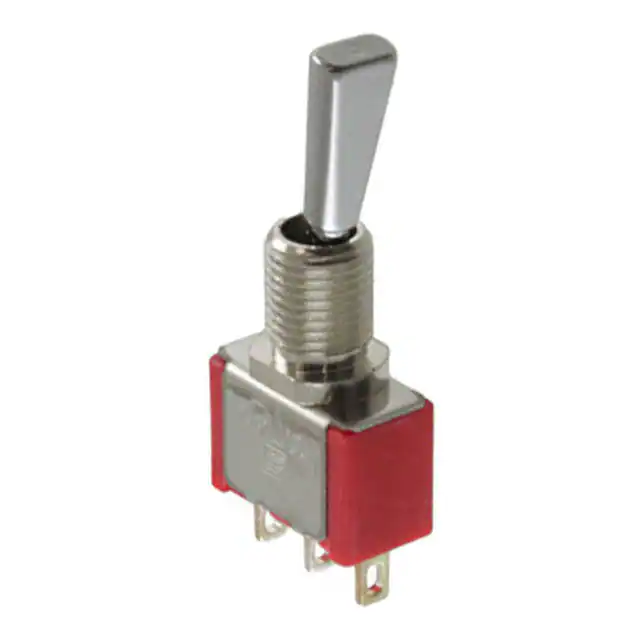

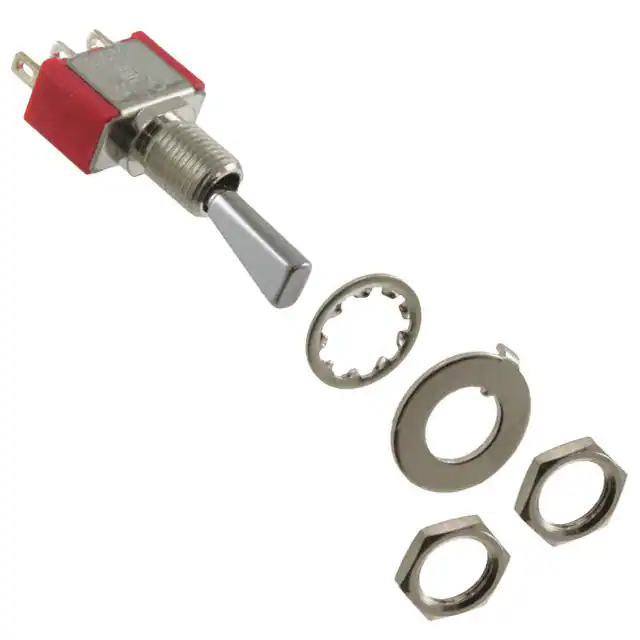

100SP3T6B11M1QESWITCH TOGGLE SPDT 5A 120V |
209 |
|
规格书 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

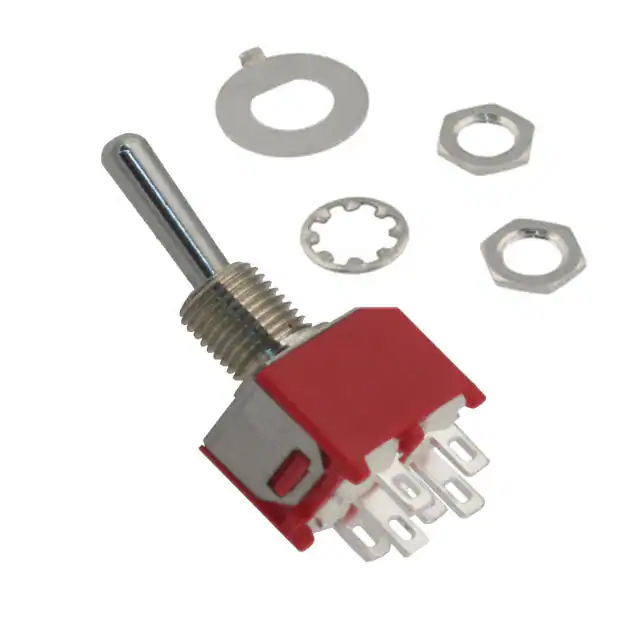

200MDP1T1B1M1QEHSWITCH TOGGLE DPDT 3A 120V |
609 |
|
规格书 |
200 | Bulk | Active | Panel Mount | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
