滚轮开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输出代码 | 读出方式 | 节数 | 显示字符 - 高度 | 执行器类型 | 触点额定值 @ 电压 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 端盖 | 节宽 | 面板开孔尺寸 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A7MD-2106-P-DSWITCH THUMB BCD 0.1A 28V |
0 |
|
规格书 |
A7MD | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 28VDC | - | Gold | - | PC Pin | Sold Separately | 0.197" (5.00mm) | - | Diode | -10°C ~ 65°C |
|
TSW0A400SWITCH THUMB BCD 0.1A 28V |
0 |
|
规格书 |
TSW | Bulk | Obsolete | BCD | 0 ~ 9 | 4 | 0.234" (5.94mm) | Thumbwheel | 0.1A @ 28VDC | - | - | Panel Mount, Screw | Screw Terminal | - | - | Rectangular - 73.03mm x 57.15mm | - | - |
|
|
TSW0A600SWITCH THUMB BCD 0.1A 28V |
0 |
|
规格书 |
TSW | Bulk | Obsolete | BCD | 0 ~ 9 | 6 | 0.234" (5.94mm) | Thumbwheel | 0.1A @ 28VDC | - | - | Panel Mount, Screw | Screw Terminal | - | - | Rectangular - 111.13mm x 57.15mm | - | - |
|
TSW1A400SWITCH THUMB BCD 0.1A 28V |
0 |
|
规格书 |
TSW | Bulk | Obsolete | BCD | 0 ~ 9 | 4 | 0.234" (5.94mm) | Thumbwheel | 0.1A @ 28VDC | - | - | Panel Mount, Screw | Screw Terminal | - | - | Rectangular - 73.03mm x 57.15mm | - | - |
|
|
TSW1A600SWITCH THUMB BCD 0.1A 28V |
0 |
|
规格书 |
TSW | Bulk | Obsolete | BCD | 0 ~ 9 | 6 | 0.234" (5.94mm) | Thumbwheel | 0.1A @ 28VDC | - | - | Panel Mount, Screw | Screw Terminal | - | - | Rectangular - 111.13mm x 57.15mm | - | - |
|
371120000SWITCH THUMB DECIMAL 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | Decimal | 0 ~ 9 | 7 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 70.87mm x 25.91mm | - | -40°C ~ 65°C |
|
|
342300001SWITCH THUMB BCD COMP 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 4 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 40.28mm x 31.00mm | Sealed Contacts | -40°C ~ 65°C |
|
|
342110102SWITCH THUMB BCD 0.1A 120V/28V |
0 |
|
规格书 |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 4 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad with Component Mounting | Included | 0.350" (8.89mm) | Rectangular - 44.20mm x 25.91mm | Dust Lens | -40°C ~ 65°C |
|
|
333100000SWITCH THUMB BCD 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 32.28mm x 31.00mm | - | -40°C ~ 65°C |
|
|
332100002SWITCH THUMB BCD 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 32.28mm x 31.00mm | Dust Lens | -40°C ~ 65°C |
|
|
331400100SWITCH THUMB RES DEC 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | Resistor Decade | 0 ~ 9 | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Included | 0.315" (8.00mm) | Rectangular - 32.28mm x 31.00mm | - | -40°C ~ 65°C |
|
|
327100000SWITCH THUMB HEX 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 24.28mm | - | -40°C ~ 65°C |
|
|
322320003SWITCH THUMB BCD COMP 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 26.42mm x 25.91mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
321100000SWITCH THUMB DECIMAL 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | Decimal | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 24.28mm | - | -40°C ~ 65°C |
|

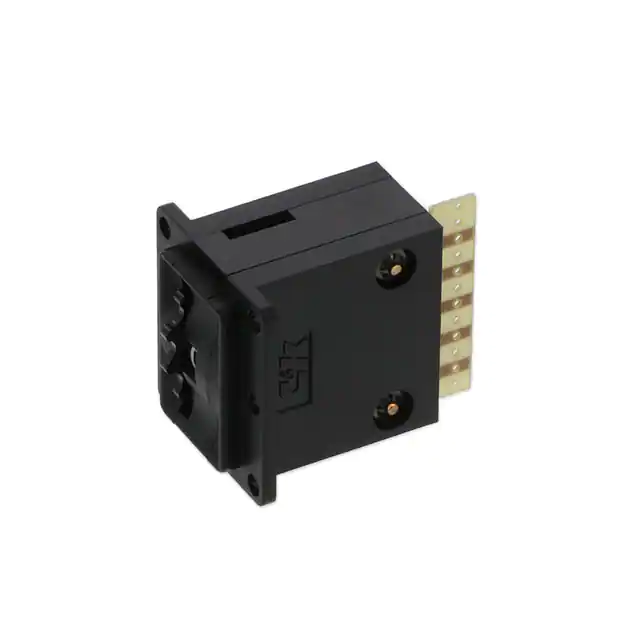

317110000SWITCH THUMB HEX 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 25.91mm x 17.53mm | - | -40°C ~ 65°C |
|
|
317100000SWITCH THUMB HEX 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | - | -40°C ~ 65°C |
|
|
313100000SWITCH THUMB BCD 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | - | -40°C ~ 65°C |
|
|
312110000SWITCH THUMB BCD 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 25.91mm x 17.53mm | - | -40°C ~ 65°C |
|
|
307129000SWITCH THUMB HEX 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|
|
302329002SWITCH THUMB BCD COMP 0.1A 120V |
0 |
|
规格书 |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.350" (8.89mm) | - | Dust Lens | -40°C ~ 65°C |
