通孔式电阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WS5M47R0JRES 47 OHM 5% 5W AXIAL Bourns Inc. |
1,619 |
|
规格书 |
WS | Cut Tape (CT) | Active | 47 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 200°C | Axial | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | - | 2 | - |
|

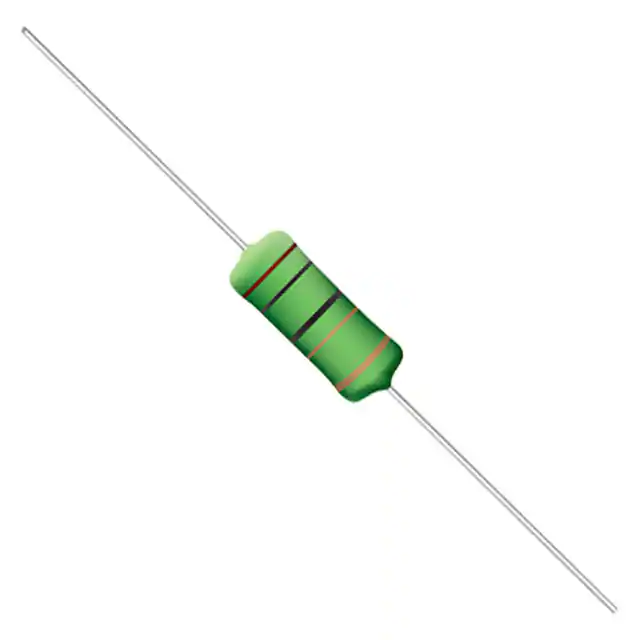

FW30A10R0JARES 10 OHM 5% 3W AXIAL Bourns Inc. |
3,515 |
|
规格书 |
FWxxA | Cut Tape (CT) | Active | 10 Ohms | ±5% | 3W | Wirewound | Fusible, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.256" Dia x 0.630" L (6.50mm x 16.00mm) | - | 2 | - |
|
|
FW50A10R0JARES 10 OHM 5% 5W AXIAL Bourns Inc. |
1,722 |
|
规格书 |
FWxxA | Cut Tape (CT) | Active | 10 Ohms | ±5% | 5W | Wirewound | Fusible, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|

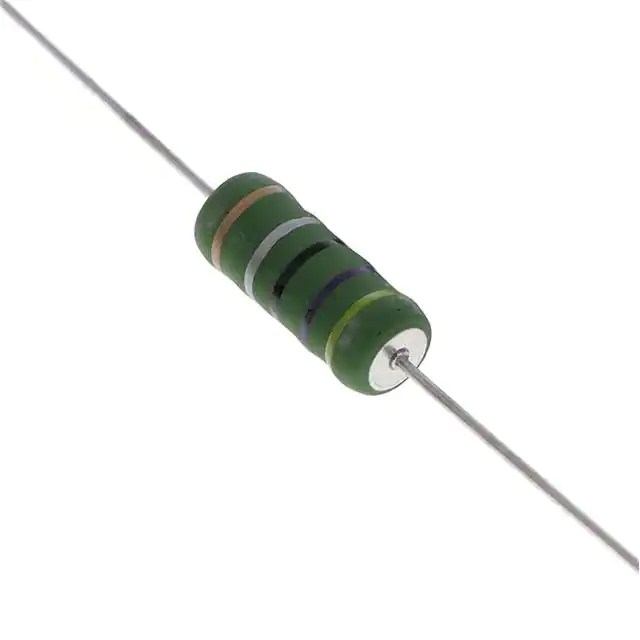

FW50A4R70JARES 4.7 OHM 5% 5W AXIAL Bourns Inc. |
425 |
|
规格书 |
FWxxA | Cut Tape (CT) | Active | 4.7 Ohms | ±5% | 5W | Wirewound | Fusible, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
PWR220T-20-R500JRES 0.5 OHM 5% 20W TO220-2 Bourns Inc. |
159 |
|
规格书 |
PWR220T-20 | Tube | Active | 500 mOhms | ±5% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
PWR220T-35-2R50FRES 2.5 OHM 1% 35W TO220-2 Bourns Inc. |
102 |
|
规格书 |
PWR220T-35 | Tube | Active | 2.5 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR220T-20-15R0FRES 15 OHM 1% 20W TO220-2 Bourns Inc. |
508 |
|
规格书 |
PWR220T-20 | Tube | Active | 15 Ohms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
PWR220T-20-R500FRES 0.5 OHM 1% 20W TO220-2 Bourns Inc. |
3,179 |
|
规格书 |
PWR220T-20 | Tube | Active | 500 mOhms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR220T-35-8R00FRES 8 OHM 1% 35W TO220-2 Bourns Inc. |
241 |
|
规格书 |
PWR220T-35 | Tube | Active | 8 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|
|
PWR220T-35-47R0FRES 47 OHM 1% 35W TO220-2 Bourns Inc. |
345 |
|
规格书 |
PWR220T-35 | Tube | Active | 47 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
