通孔式电阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TR10F10M0FKESRES 10M OHM 1% 1W RADIAL Vishay Techno |
10 |
|
规格书 |
TR | Strip | Active | 10 MOhms | ±1% | 1W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 125°C | Radial | 1.000" L x 0.125" W (25.40mm x 3.18mm) | 0.385" (9.78mm) | 2 | - |
|
|
RCMM026801JKA20SFERNICE FIXED RESISTORS Vishay Sfernice |
14 |
|
规格书 |
RCMM | Cut Tape (CT) | Active | 6.8 kOhms | ±5% | 0.5W, 1/2W | Metal Film | - | ±100ppm/°C | 150°C | Axial | 0.098" Dia x 0.256" L (2.50mm x 6.50mm) | - | 2 | - |
|
|
RCMM022200JKA20SFERNICE FIXED RESISTORS Vishay Sfernice |
0 |
|
规格书 |
RCMM | Cut Tape (CT) | Active | 220 Ohms | ±5% | 0.5W, 1/2W | Metal Film | - | ±100ppm/°C | 150°C | Axial | 0.098" Dia x 0.256" L (2.50mm x 6.50mm) | - | 2 | - |
|
RTO020F22000JTE3RES 2.2K OHM 20W 5% TO220 Vishay Sfernice |
0 |
|
规格书 |
RTO 20 | Tube | Active | 2.2 kOhms | ±5% | 20W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 155°C | TO-220 | 0.398" L x 0.177" W (10.10mm x 4.50mm) | 0.606" (15.40mm) | 2 | - |
|
|
TR15G50M0FNESRES 50M OHM 1% 1.5W RADIAL Vishay Techno |
19 |
|
规格书 |
TR | Strip | Active | 50 MOhms | ±1% | 1.5W | Thick Film | High Voltage | ±200ppm/°C | -55°C ~ 125°C | Radial | 1.500" L x 0.125" W (38.10mm x 3.18mm) | 0.385" (9.78mm) | 2 | - |
|

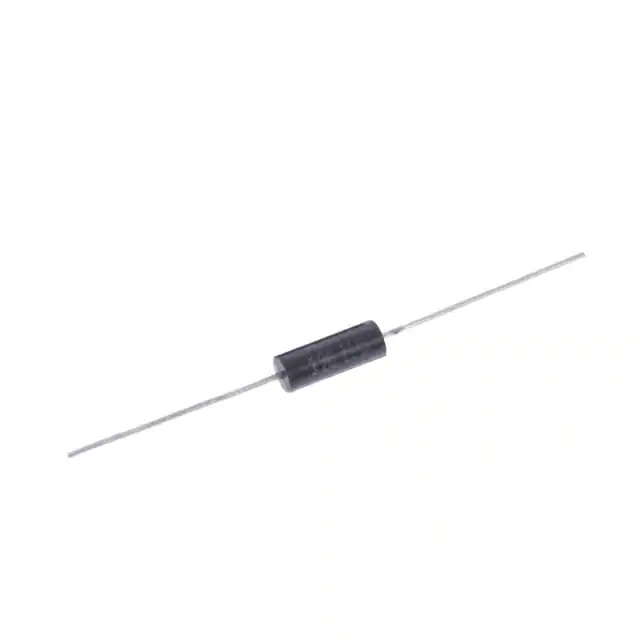

RCMS05100R0FHS14SFERNICE FIXED RESISTORS Vishay Sfernice |
0 |
|
规格书 |
RCMS05 | Bag | Active | 100 Ohms | ±1% | 0.5W, 1/2W | Metal Film | - | ±50ppm/°C | 150°C | Axial | 0.144" Dia x 0.402" L (3.65mm x 10.20mm) | - | 2 | - |
|
LTO030F5R000FTE3SFERNICE FIXED RESISTORS Vishay Sfernice |
6 |
|
规格书 |
LTO 30 | Tube | Active | 5 Ohms | ±1% | 30W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 150°C | TO-220-2 | 0.409" L x 0.126" W (10.40mm x 3.20mm) | 0.713" (18.10mm) | 2 | - |
|
|
LTO030F5R000JTE3RES 5 OHM 30W 5% TO220 Vishay Sfernice |
2 |
|
规格书 |
LTO 30 | Tube | Active | 5 Ohms | ±5% | 30W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 150°C | TO-220-2 | 0.409" L x 0.126" W (10.40mm x 3.20mm) | 0.650" (16.50mm) | 2 | - |
|
RWM084522R0JB25E1RESISTOR 22 OHM 11W 5% WIREWOUND Vishay Sfernice |
0 |
|
规格书 |
RWM | Bulk | Active | 22 Ohms | ±5% | 11W | Wirewound | Flame Proof, Safety | ±75ppm/°C | -55°C ~ 350°C | Axial | 0.370" Dia x 1.803" L (9.40mm x 45.80mm) | - | 2 | - |
|
RLP0110000FS14SFERNICE FIXED RESISTORS Vishay Sfernice |
1 |
|
规格书 |
RLP | Bag | Active | 1 kOhms | ±1% | 1W | Wirewound | - | ±25ppm/°C | -55°C ~ 275°C | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
