通孔式电阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

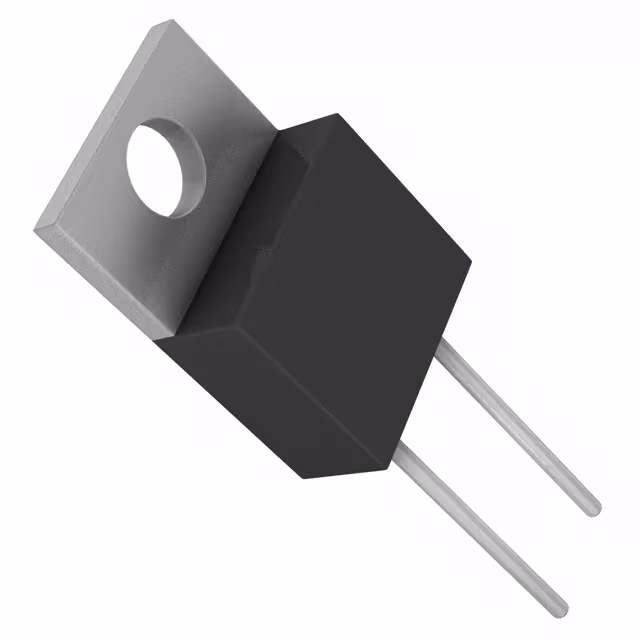

RTO020F22R00JTE3RES 22 OHM 20W 5% TO220 Vishay Sfernice |
662 |
|
规格书 |
RTO 20 | Tube | Active | 22 Ohms | ±5% | 20W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 155°C | TO-220 | 0.398" L x 0.177" W (10.10mm x 4.50mm) | 0.606" (15.40mm) | 2 | - |
|
|
RTO020F10R00JTE3RES 10 OHM 20W 5% TO220 Vishay Sfernice |
109 |
|
规格书 |
RTO 20 | Tube | Active | 10 Ohms | ±5% | 20W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 155°C | TO-220 | 0.398" L x 0.177" W (10.10mm x 4.50mm) | 0.606" (15.40mm) | 2 | - |
|
RTO050F10R00JTE1RES 10 OHM 50W 5% TO220 Vishay Sfernice |
406 |
|
规格书 |
RTO 50 | Tube | Active | 10 Ohms | ±5% | 50W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 155°C | TO-220 | 0.398" L x 0.177" W (10.10mm x 4.50mm) | 0.591" (15.00mm) | 2 | - |
|
|
RTO050F330R0JTE1RES 330 OHM 50W 5% TO220 Vishay Sfernice |
298 |
|
规格书 |
RTO 50 | Tube | Active | 330 Ohms | ±5% | 50W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 155°C | TO-220 | 0.398" L x 0.177" W (10.10mm x 4.50mm) | 0.591" (15.00mm) | 2 | - |
|
|
RTO050F100R0JTE1RES 100 OHM 50W 5% TO220 Vishay Sfernice |
142 |
|
规格书 |
RTO 50 | Tube | Active | 100 Ohms | ±5% | 50W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 155°C | TO-220 | 0.398" L x 0.177" W (10.10mm x 4.50mm) | 0.591" (15.00mm) | 2 | - |
|
|
RTO050F12R00JTE1RES 12 OHM 50W 5% TO220 Vishay Sfernice |
118 |
|
规格书 |
RTO 50 | Tube | Active | 12 Ohms | ±5% | 50W | Thick Film | Non-Inductive | ±150ppm/°C | -55°C ~ 155°C | TO-220 | 0.398" L x 0.177" W (10.10mm x 4.50mm) | 0.591" (15.00mm) | 2 | - |
|
LTO150F100R0JTE3RES 100 OHM 5% 150W TO247-2 Vishay Sfernice |
319 |
|
规格书 |
LTO 150 | Tube | Active | 100 Ohms | ±5% | 150W | Thick Film | Automotive AEC-Q200, Non-Inductive | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.953" (24.20mm) | 2 | - |
|
|
LTO150F10R00JTE3RES 10 OHM 5% 150W TO247-2 Vishay Sfernice |
418 |
|
规格书 |
LTO 150 | Tube | Active | 10 Ohms | ±5% | 150W | Thick Film | Automotive AEC-Q200, Non-Inductive | ±350ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.953" (24.20mm) | 2 | - |
|
|
LTO150F4R700JTE3RES 4.7 OHM 5% 150W TO247-2 Vishay Sfernice |
382 |
|
规格书 |
LTO 150 | Tube | Active | 4.7 Ohms | ±5% | 150W | Thick Film | Automotive AEC-Q200, Non-Inductive | ±350ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.953" (24.20mm) | 2 | - |
|
|
LTO150F1R000JTE3RES 1 OHM 5% 150W TO247-2 Vishay Sfernice |
289 |
|
规格书 |
LTO 150 | Tube | Active | 1 Ohms | ±5% | 150W | Thick Film | Automotive AEC-Q200, Non-Inductive | ±350ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.953" (24.20mm) | 2 | - |
