通孔式电阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTO100H10000JTE3RES 1K OHM 5% 100W TO247-2 Vishay Sfernice |
34 |
|
规格书 |
LTO 100 H | Tube | Active | 1 kOhms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
|
|
LTO100H100R0JTE3RES 100 OHM 5% 100W TO247-2 Vishay Sfernice |
33 |
|
规格书 |
LTO 100 H | Tube | Active | 100 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
|
|
LTO100H22R00JTE3RES 22 OHM 5% 100W TO247-2 Vishay Sfernice |
23 |
|
规格书 |
LTO 100 H | Tube | Active | 22 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
|
|
LTO100H10R00JTE3RES 10 OHM 5% 100W TO247-2 Vishay Sfernice |
22 |
|
规格书 |
LTO 100 H | Tube | Active | 10 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive, Pulse Withstanding, Safety | ±350ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
|
RWM06346801JS09E1SFERNICE FIXED RESISTORS Vishay Sfernice |
14 |
|
规格书 |
RWM | Bag | Active | 6.8 kOhms | ±5% | 8W | Wirewound | Flame Proof, Safety | ±75ppm/°C | -55°C ~ 350°C | Axial | 0.291" Dia x 1.327" L (7.40mm x 33.70mm) | - | 2 | - |
|
LTO100FR0500JTE3RES 0.05 OHM 100W 5% TO247 Vishay Sfernice |
30 |
|
规格书 |
LTO 100 | Tube | Active | 50 mOhms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive | ±900ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
|

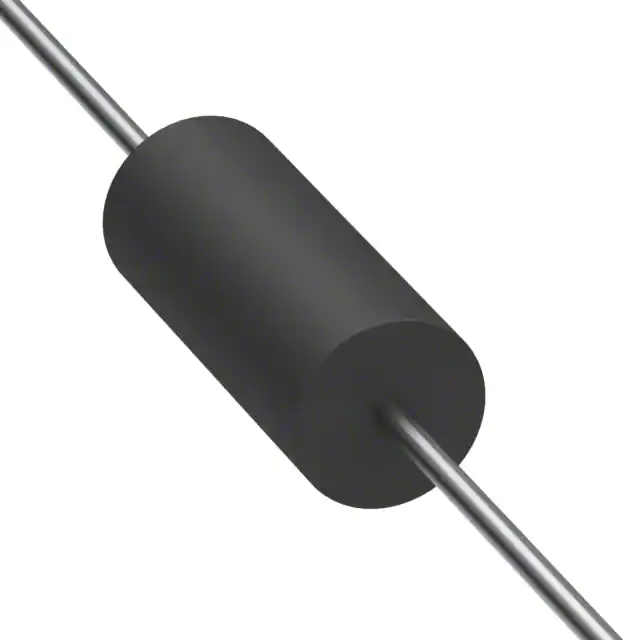

RLP031R000FB15SFERNICE FIXED RESISTORS Vishay Sfernice |
20 |
|
规格书 |
RLP | Bulk | Active | 1 Ohms | ±1% | 3W | Wirewound | - | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.218" Dia x 0.551" L (5.54mm x 14.00mm) | - | 2 | - |
|
|
LTO100HR8000JTE3RES 0.8 OHM 5% 100W TO247-2 Vishay Sfernice |
7 |
|
规格书 |
LTO 100 H | Tube | Active | 800 mOhms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive, Pulse Withstanding, Safety | ±350ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
|
RTO050FR1000JTE1RES 0.1 OHM 50W 5% TO220 Vishay Sfernice |
28 |
|
规格书 |
RTO 50 | Tube | Active | 100 mOhms | ±5% | 50W | Thick Film | Non-Inductive | ±250ppm/°C | -55°C ~ 155°C | TO-220 | 0.398" L x 0.177" W (10.10mm x 4.50mm) | 0.591" (15.00mm) | 2 | - |
|
|
LTO100FR0150JTE3RES 0.015 OHM 100W 5% TO247 Vishay Sfernice |
20 |
|
规格书 |
LTO 100 | Tube | Active | 15 mOhms | ±5% | 100W | Thick Film | Automotive AEC-Q200, Non-Inductive | ±900ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.197" W (15.76mm x 5.00mm) | 0.976" (24.80mm) | 2 | - |
