通孔式电阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PNP300JR-73-100RRES 100 OHM 5% 3W AXIAL |
33,440 |
|
规格书 |
PNP | Tape & Reel (TR) | Active | 100 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | - | -40°C ~ 200°C | Axial | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | - | 2 | - |
|
AC05000001007JAC00RES 0.1 OHM 5W 5% AXIAL |
4,260 |
|
规格书 |
AC | Cut Tape (CT) | Active | 100 mOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
|
WHA250FETRES 250 OHM 1% 1/2W AXIAL |
150,608 |
|
规格书 |
WH | Tape & Reel (TR) | Active | 250 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
|
VR68000003305JAC00RES 33M OHM 1W 5% AXIAL |
26,111 |
|
规格书 |
VR68 | Cut Tape (CT) | Active | 33 MOhms | ±5% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|
|
VR68000001004JAC00RES 1M OHM 1W 5% AXIAL |
7,497 |
|
规格书 |
VR68 | Cut Tape (CT) | Active | 1 MOhms | ±5% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|
YR1B10KCCRES 10K OHM 0.1% 1/4W AXIAL |
117,927 |
|
规格书 |
YR, Neohm | Cut Tape (CT) | Active | 10 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | ±15ppm/°C | -65°C ~ 155°C | Axial | 0.091" Dia x 0.248" L (2.30mm x 6.30mm) | - | 2 | - |
|
AC03000001009JACCSRES 10 OHM 3W 5% AXIAL |
14,310 |
|
规格书 |
AC03 | Cut Tape (CT) | Active | 10 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Fusible, Pulse Withstanding, Safety | ±200ppm/°C | -40°C ~ 200°C | Axial | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | - | 2 | - |
|

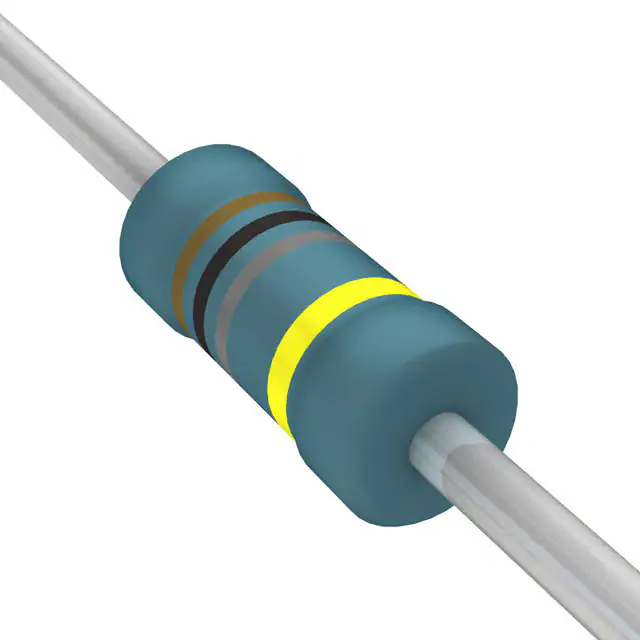

HVA12JA1G00RES 1 GOHM 5% 1.2W AXIAL |
8,726 |
|
规格书 |
HVA | Cut Tape (CT) | Active | 1 GOhms | ±5% | 1.2W | Metal Film | High Voltage | ±200ppm/°C | -25°C ~ 125°C | Axial | 0.157" Dia x 0.433" L (4.00mm x 11.00mm) | - | 2 | - |
|
YR1B1K0CCRES 1K OHM 0.1% 1/4W AXIAL |
596 |
|
规格书 |
YR, Neohm | Cut Tape (CT) | Active | 1 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | ±15ppm/°C | -65°C ~ 155°C | Axial | 0.091" Dia x 0.248" L (2.30mm x 6.30mm) | - | 2 | - |
|
CPF1100K00FKEE6RESISTOR METAL FILM 1W 100K OHM |
3,000 |
|
规格书 |
CPF | Tape & Reel (TR) | Active | 100 kOhms | ±1% | 1W | Metal Film | Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -65°C ~ 230°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
|
AC03000001000JAC00RES 100 OHM 3W 5% AXIAL |
67,122 |
|
规格书 |
AC | Cut Tape (CT) | Active | 100 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|
AC01000001008JA100RES 1 OHM 1W 5% AXIAL |
12,909 |
|
规格书 |
AC | Cut Tape (CT) | Active | 1 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.169" Dia x 0.433" L (4.30mm x 11.00mm) | - | 2 | - |
|
CMF5510K000BEEBRES 10K OHM 1/2W 0.1% AXIAL |
11,160 |
|
规格书 |
CMF | Tape & Reel (TR) | Active | 10 kOhms | ±0.1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|

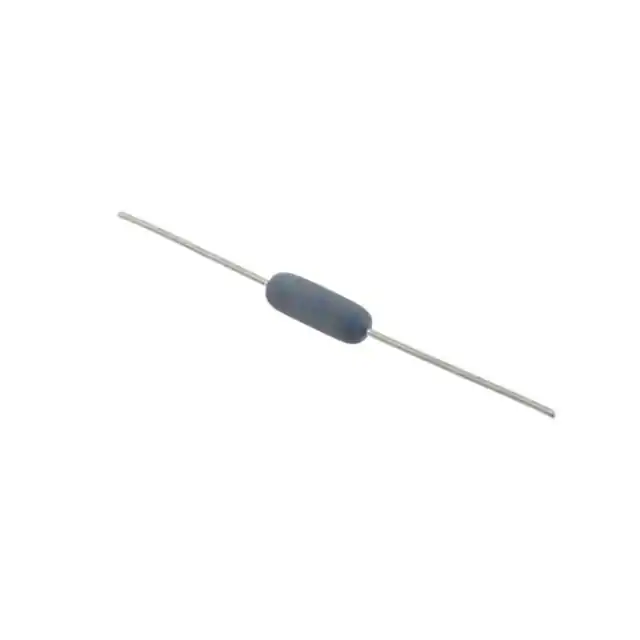

WW3FT30R0RES 30 OHM 1% 3W AXIAL |
1,294 |
|
规格书 |
WW | Tape & Reel (TR) | Active | 30 Ohms | ±1% | 3W | Wirewound | Moisture Resistant | ±20ppm/°C | -55°C ~ 350°C | Axial | 0.187" Dia x 0.560" L (4.75mm x 14.22mm) | - | 2 | - |
|
|
AC07000004708JAC00RES 4.7 OHM 7W 5% AXIAL |
2,537 |
|
规格书 |
AC | Cut Tape (CT) | Active | 4.7 Ohms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
SQP10AJB-10RRES 10 OHM 5% 10W AXIAL |
3,033 |
|
规格书 |
SQP | Tray | Active | 10 Ohms | ±5% | 10W | Cement | Flame Proof, Pulse Withstanding, Safety | - | -55°C ~ 155°C | Axial | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | - | 2 | - |
|
23J10KERES 10K OHM 5% 3W AXIAL |
2,727 |
|
规格书 |
20 | Bulk | Active | 10 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
RGP0207CHK1G0RES 1G OHM 10% 1/4W AXIAL |
3,106 |
|
规格书 |
RGP, Neohm | Cut Tape (CT) | Active | 1 GOhms | ±10% | 0.25W, 1/4W | Thick Film | High Voltage | ±350ppm/°C | -55°C ~ 155°C | Axial | 0.098" Dia x 0.256" L (2.50mm x 6.50mm) | - | 2 | - |
|
|
AC05000001009JAC00RES 10 OHM 5W 5% AXIAL |
36,793 |
|
规格书 |
AC | Cut Tape (CT) | Active | 10 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
|
AC05000001008JAC00RES 1 OHM 5W 5% AXIAL |
14,958 |
|
规格书 |
AC | Cut Tape (CT) | Active | 1 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
