钽 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D.JPG)
|
T520D227M006ATE009CAP TANT POLY 220UF 6.3V 2917 |
6,918 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 9mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T521T336M016ATE050CAP TANT POLY 33UF 16V 1411 |
1,900 |
|
- |
KO-CAP® T521 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
V.JPG)
|
T520V337M006ATE015CAP TANT POLY 330UF 6.3V 2917 |
17,721 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
TCJY157M016R0050CAP TANT POLY 150UF 16V 2917 |
7,947 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
|
T520D108M2R5ATE015CAP TANT POLY 1000UF 2.5V 2917 |
7,158 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJY157M016R0050ECAP TANT POLY 150UF 16V 2917 |
2,570 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|

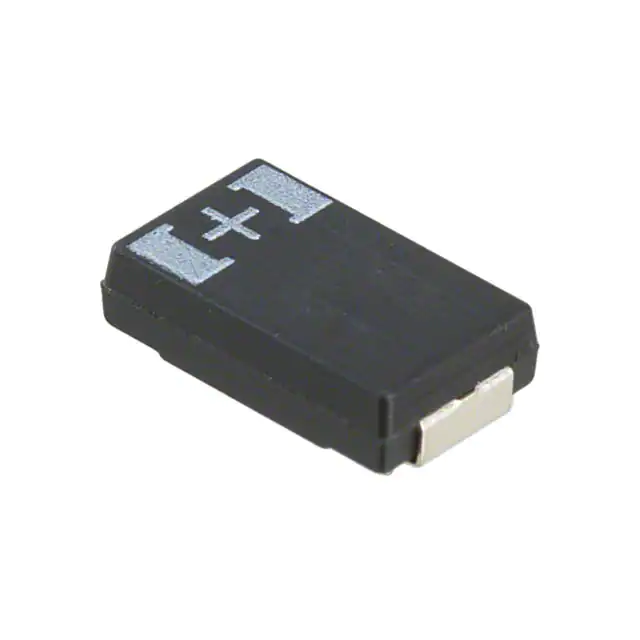

6TPF220M9LCAP TANT POLY 220UF 6.3V 2917 |
4,736 |
|
- |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 9mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
|
|
T520D337M006ATE009CAP TANT POLY 330UF 6.3V 2917 |
561 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | Molded | 9mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJC106M035R0200CAP TANT POLY 10UF 35V 2312 |
143 |
|
- |
TCJ | 2312 (6032 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.110" (2.80mm) | - | C | - | General Purpose |
|
|
T521V336M025ATE060CAP TANT POLY 33UF 25V 2917 |
7,791 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | Molded | 60mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
T520V227M006ATE007CAP TANT POLY 220UF 6.3V 2917 |
4,131 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 7mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
T598D107M016ATE050CAP TANT POLY 100UF 16V 2917 |
5,615 |
|
- |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
TCJB226M020R0090ECAP TANT POLY 22UF 20V 1210 |
2,268 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 20 V | Molded | 90mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
T520D227M006ATE040CAP TANT POLY 220UF 6.3V 2917 |
3,133 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
10TPC100MCAP TANT POLY 100UF 10V 2917 |
38,918 |
|
- |
POSCAP™ TPC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2 | - | General Purpose |
|
|
T520D687M2R5ATE015CAP TANT POLY 680UF 2.5V 2917 |
2,896 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 2.5 V | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T55D337M010C0018CAP TANT POLY 330UF 10V 2917 |
2,079 |
|
- |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | Molded | 18mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T520D337M004ATE007CAP TANT POLY 330UF 4V 2917 |
3,811 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 4 V | Molded | 7mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T520D157M006ATE007CAP TANT POLY 150UF 6.3V 2917 |
3,217 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 7mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T521T336M016ATE045CAP TANT POLY 33UF 16V 1411 |
1,950 |
|
- |
KO-CAP® T521 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 16 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
