步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH2141-5541STEP, F2, SQ.14, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
75 |
|
规格书 |
SH | Box | Active | Hybrid | Bipolar | 24VDC | 300 mA | 200.0 | 1.8° | - | 0.92 / 7 | Square - 0.551" x 0.551" (14.00mm x 14.00mm) | - | 0.157" (4.00mm) | 0.591" (15.00mm) | 0.453" (11.50mm) | Wire Leads | -10°C ~ 50°C | 21 Ohms | - |
|
|
SM2563C60B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE Sanyo Denki SanMotion Products |
28 |
|
规格书 |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 6 A | 200.0 | 1.8° | - | 333 / 2350 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 0.25 Ohms | - |
|

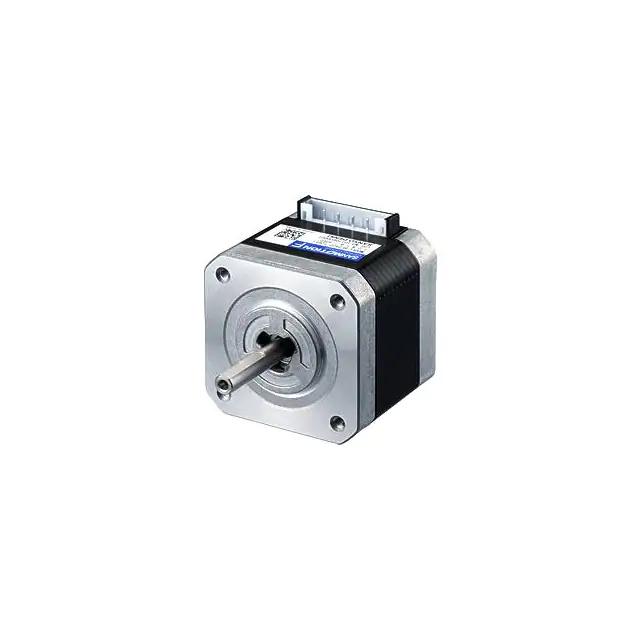

SF2422-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
60 |
|
规格书 |
SF | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 60.89 / 430 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 4.6 Ohms | - |
|
|
SF2422-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
19 |
|
规格书 |
SF | Box | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 60.89 / 430 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 4.6 Ohms | - |
|

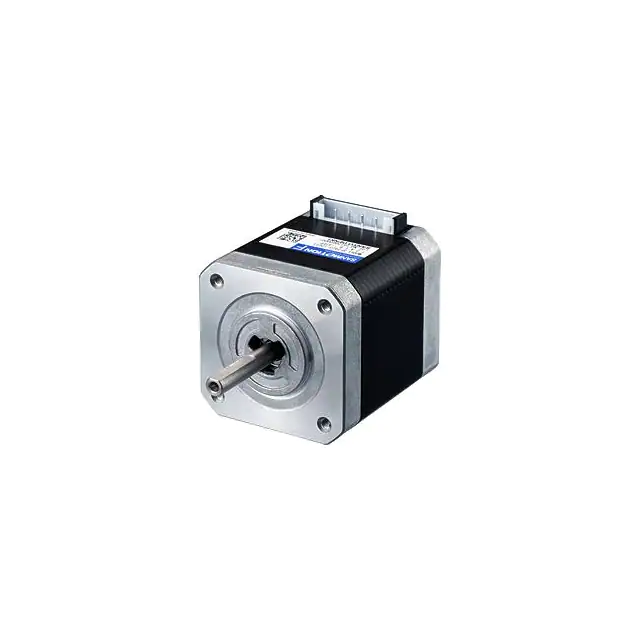

SF2423-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
44 |
|
规格书 |
SF | Box | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 79.3 / 560 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 5.3 Ohms | - |
|
SF2424-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
35 |
|
规格书 |
SF | Box | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 113.30 / 800 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 6.5 Ohms | - |
|
|

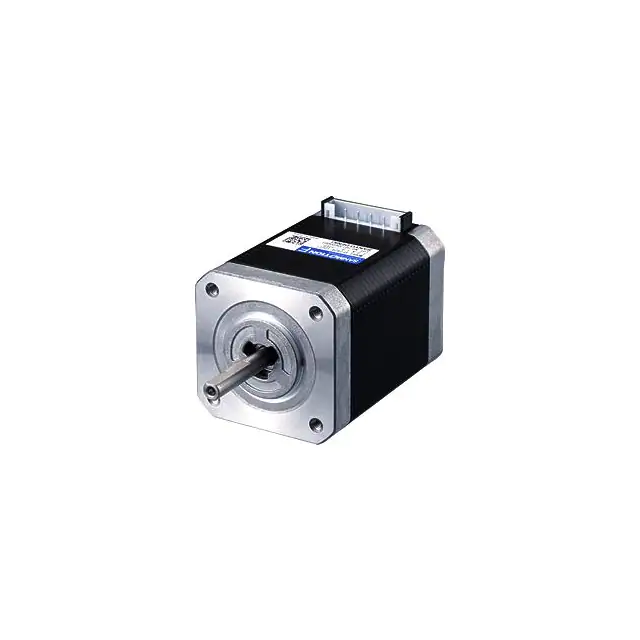

SF2424-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
39 |
|
规格书 |
SF | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 113.30 / 800 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 6.5 Ohms | - |
|
|
SH2141-5511STEP, F2, SQ.14, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
24 |
|
规格书 |
SH | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 300 mA | 200.0 | 1.8° | - | 0.92 / 7 | Square - 0.551" x 0.551" (14.00mm x 14.00mm) | - | 0.157" (4.00mm) | 0.591" (15.00mm) | 0.453" (11.50mm) | Wire Leads | -10°C ~ 50°C | 21 Ohms | - |
|
|
SM2564C40B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE Sanyo Denki SanMotion Products |
12 |
|
规格书 |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 4 A | 200.0 | 1.8° | - | 354 / 2500 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 0.59 Ohms | - |
|
|
SH2145-5641STEP, F2, SQ.14, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
2 |
|
规格书 |
SH | Box | Active | Hybrid | Bipolar | 24VDC | 400 mA | 200.0 | 1.8° | - | 1.42 / 10 | Square - 0.551" x 0.551" (14.00mm x 14.00mm) | - | 0.157" (4.00mm) | 0.591" (15.00mm) | 0.453" (11.50mm) | Wire Leads | -10°C ~ 50°C | 19 Ohms | - |
