步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

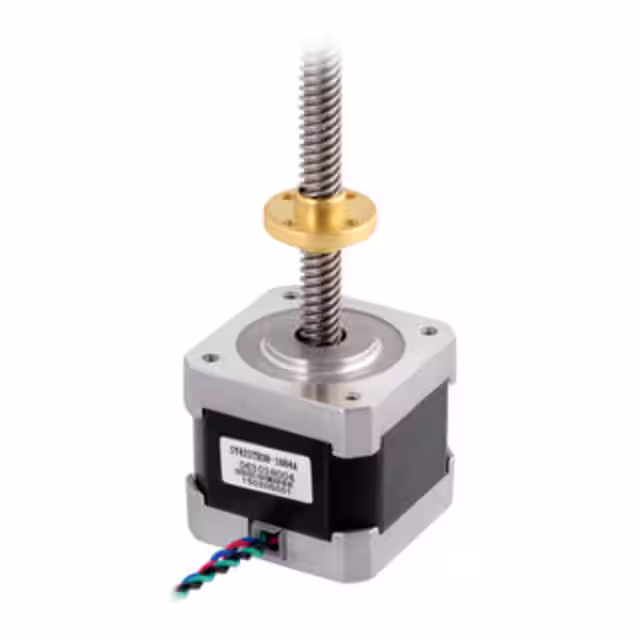

2689STEPPER MOTOR W/18CM LEAD SCREW Pololu Corporation |
130 |
|
规格书 |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200.0 | 1.8° | - | 51 / 360 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.315" (8.00mm) | 11.102" (282.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms | Flatted Shaft |
|
2690STEPPER MOTOR W/38CM LEAD SCREW Pololu Corporation |
49 |
|
规格书 |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200.0 | 1.8° | - | 51 / 360 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.315" (8.00mm) | 11.102" (282.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms | Flatted Shaft |
|
1200STPR MTR UNI/BIPLR 4V 1.2A/PHSE Pololu Corporation |
14 |
|
规格书 |
- | - | Active | Hybrid | Unipolar | 4VDC | 1.2 A | 200.0 | 1.8° | - | 43.9 / 310 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | - | Flatted Shaft |
|
1476STPR MTR UNI/BIPLR 5.7V 1A/PHSE Pololu Corporation |
7 |
|
规格书 |
- | - | Active | Hybrid | Unipolar | 5.7VDC | 1 A | 200.0 | 1.8° | - | 55 / 388.39 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.854" (47.10mm) | Wire Leads | -20°C ~ 50°C | 5.7 Ohms | Flatted Shaft |
|
1472STPR MTR UNI/BIPLR 7.4V 1A/PHSE Pololu Corporation |
91 |
|
规格书 |
- | - | Active | Hybrid | Unipolar | 7.4VDC | 1 A | 200.0 | 1.8° | - | 125 / 882.7 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.854" (47.10mm) | Wire Leads | -20°C ~ 50°C | 7.4 Ohms | Flatted Shaft |
|
1473STPR MTR UNI/BIPLR 3.6V 2A/PHSE Pololu Corporation |
64 |
|
规格书 |
- | - | Active | Hybrid | Unipolar | 3.6VDC | 2 A | 200.0 | 1.8° | - | 125 / 882.7 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.854" (47.10mm) | Wire Leads | -20°C ~ 50°C | 1.8 Ohms | Flatted Shaft |
|
1474STPR MTR BIPOLAR 2.5V 2.8A/PHASE Pololu Corporation |
29 |
|
规格书 |
- | - | Active | Hybrid | Bipolar | 2.5VDC | 2.8 A | 200.0 | 1.8° | - | 180 / 1271 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.827" (21.00mm) | 1.854" (47.10mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms | Flatted Shaft |
|
2268STEPPER MOTOR W/28CM LEAD SCREW Pololu Corporation |
14 |
|
规格书 |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200.0 | 1.8° | - | 51 / 360 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.315" (8.00mm) | 11.102" (282.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms | Flatted Shaft |
